Maximizing Drawer Production

The solution isn't working harder or longer hours. It's understanding how the right equipment eliminates uncertainty at every stage of drawer construction. When dovetailers, drawer clamps, and notchers work together as an integrated system, production transforms from a series of careful, anxious steps into a confident, repeatable process.

Drawer Production Bottleneck

Walk through most cabinet shops and you'll find the same pattern. Material preparation flows smoothly. Door production has dedicated equipment. But drawer assembly? That's often still happening with whatever tools are available, cobbled together on whatever bench space isn't being used for something else.

This approach creates hidden costs that compound over time. When each drawer requires careful setup, constant checking, and frequent adjustments, production slows to a crawl. More damaging is the inconsistency—drawers from the same project that don't quite match because clamping pressure varied or setup drifted during the day.

Modern kitchen projects demand more drawers than ever before. Twenty-drawer kitchens were once special orders; now they're standard installations. Bathroom vanities that once had simple shelving now feature multiple drawer banks. Every project spec calls for soft-close undermount slides, which means precise notching and drilling for each box.

The shops keeping pace with this demand share a common trait: they've invested in dedicated drawer production equipment that eliminates guesswork and reduces each operation to its essential movements.

Dovetail Machines

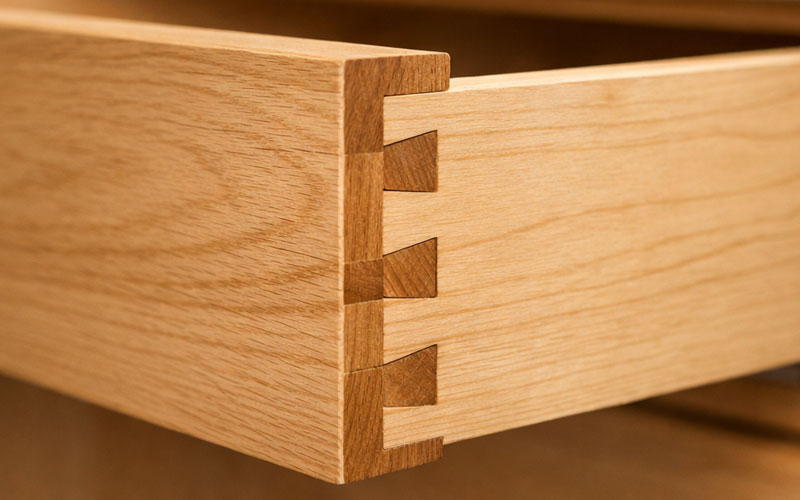

The dovetail joint remains the gold standard for drawer construction. Its mechanical interlocking creates strength that outlasts other joinery methods, and the visible joint communicates quality to customers. But hand-cutting dovetails for production work is impractical, and router jigs, while faster, introduce their own complications.

Professional dovetail machines solve this by cutting perfectly matched pins and tails with repeatability that eliminates fit problems. The transformation isn't subtle—shops report going from 6-8 drawer boxes per day with hand methods to 40-50 boxes with even basic manual dovetailing equipment.

Automatic dovetail machines take this further. With programmable patterns and touchscreen controls, operators can switch between drawer sizes in minutes rather than hours. Material feeds automatically, cuts execute with precision measured in thousandths of an inch, and the machine moves seamlessly from one box to the next.

OMEC Automatic Dovetailing

Italian engineering meets production demands. These machines handle traditional dovetails, French dovetails, and parallel indents with programmable precision that eliminates setup guesswork.

View Omec Machines

Manual Dovetail Solutions

For shops producing fewer than 500 drawers annually, manual machines offer exceptional value. Operators develop intimate knowledge of material behavior while maintaining production efficiency.

View Manual Dovetailers

The real value emerges not from cutting speed alone, but from consistency. Every joint fits the same way. Material thickness variations get accounted for automatically. Operator fatigue stops affecting quality because the machine maintains standards regardless of how many drawers have already been produced that day.

Drawer Clamps

Traditional clamping methods ask operators to apply pressure at four corners simultaneously while checking for square and making sure glue doesn't set before everything's aligned. It's a juggling act that even experienced woodworkers find stressful. Variations in technique, changing grip strength as fatigue sets in, and the simple challenge of reaching all critical points at once create inconsistent results.

Professional drawer clamps eliminate these variables. Purpose-built systems apply uniform pressure to all four corners simultaneously, automatically ensuring square assembly through mechanical design rather than operator skill.

Heavy-duty frames provide a stable reference surface. Pneumatic cylinders deliver consistent clamping force—typically up to 3,000 pounds per clamp at 100 PSI—that doesn't vary between the first drawer of the day and the fiftieth.

Quick-adjusting carriages mean changeovers between drawer sizes take seconds, not minutes. Operators position the drawer components, activate a foot pedal, and the clamps engage. Two seconds later, the drawer is under full pressure and perfectly square.

Drawer Notchers

Modern drawer slides—particularly soft-close undermount models—require precise notches and mounting holes. The specifications aren't negotiable; hardware manufacturers design their products around exact dimensions. Miss these tolerances and drawers bind, slides fail prematurely, or installation becomes a frustrating battle with parts that should simply fit together.

Manual routing of these notches works but introduces several problems. Router templates require careful setup for each drawer size. Operator consistency affects results as fatigue sets in. Dust collection becomes challenging, and maintaining precision across multiple drawers demands constant attention.

Drawer notching machines transform this operation. According to specifications from Cantek America, the JEN60 drawer notcher can process up to 220 drawer boxes per hour—both left and right notches—with a cycle time of approximately 10 seconds per drawer.

Building an Integrated Drawer Production System

Individual pieces of equipment solve specific problems, but real transformation comes from understanding how these tools work together. The most efficient drawer production doesn't happen in isolated stations—it flows through a carefully planned sequence where each operation sets up the next.

Start by thinking through the complete process. Raw material enters at one end, finished drawers exit at the other. Every handling step, every movement between stations, every moment spent searching for tools or supplies represents wasted time and opportunity for error.

1. Material preparation station with dedicated crosscut saw ensures consistent lengths
2. Thickness planing delivers uniform material thickness critical for dovetail fit
3. Dovetail cutting station positioned as production centerpiece
4. Assembly area with drawer clamps for immediate box construction
5. Notching station prepares completed boxes for hardware installation

The physical layout matters as much as the equipment itself. Position stations to minimize backtracking. Keep material moving forward through the process. Store frequently used items—glue, clamps, measurement tools—within arm's reach of where they're needed. Small inefficiencies compound quickly across dozens of drawers; small improvements have equally powerful cumulative effects.

Supporting Equipment and Infrastructure

Three core machines form the foundation, but they don't operate in isolation. Supporting systems determine whether the production line flows smoothly or stumbles over preventable obstacles.

Dovetail machines and notchers generate substantial fine dust. This isn't just a housekeeping issue—accumulated dust interferes with precision. Chips on reference surfaces throw off measurements. Dust in sliding mechanisms causes binding. Airborne particles reduce visibility and operator comfort.

Professional dust collection systems matched to equipment requirements maintain clean working conditions. Each machine needs appropriate CFM capacity at its dust port. The Cantek JEN60 notcher, for example, requires 670 CFM at a 4" dust port. Inadequate collection reduces both machine performance and finished quality.

Pneumatic drawer clamps and notching equipment require consistent compressed air supply. Systems should deliver 90-100 PSI reliably throughout production runs. Undersized compressors cause pressure drops that reduce clamping force and affect machine cycling. Build capacity with growth in mind—adding equipment later shouldn't require air system upgrades.

Baltic birch plywood has become the standard for production drawer work. The void-free construction eliminates the chipping and splintering common with standard construction-grade plywood. Consistent thickness across sheets means dovetail machines don't require constant adjustment. Smooth faces reduce finishing time.

The cost premium—typically 15-20% over standard plywood—gets recovered quickly. According to analysis by production woodworking consultants, waste reduction, elimination of rework, and decreased finishing time typically save 25-30% in total production costs. Factor in improved customer satisfaction from drawer boxes that operate smoothly and look professional, and the return on investment becomes clear.

When projects specify solid wood drawer construction, hard maple delivers excellent results. Dense grain structure machines cleanly, reducing tearout problems. The wood takes paint beautifully for painted drawer projects and offers attractive natural color for clear-finished work.

Consistent grain patterns mean more predictable behavior from dovetail machines. Material that cuts cleanly reduces bit wear and maintains tighter tolerances across production runs. The result is fewer adjustments, less waste, and more confident production.

Maximizing Production Efficiency

Equipment investment creates potential, but realizing that potential requires thoughtful workflow design. The difference between shops that achieve high efficiency and those that underperform often comes down to how work is organized, not which machines they own.

Every machine changeover costs time. Dovetail machine adjustments between drawer sizes can consume 15-20 minutes. Drawer clamp repositioning for different box dimensions takes several minutes. These transitions compound quickly when working on projects with multiple drawer sizes.

Smart batching minimizes these transitions. Group production by drawer width first—this typically requires the most significant machine adjustments. Within each width group, varying depth often needs only minor tweaks. This approach reduces total changeover time while maintaining flexibility for project requirements.

Build quality checks into the production flow rather than adding them after completion. Too many shops discover fit problems only after gluing entire batches of drawers. Simple go/no-go gauges at the dovetail machine catch issues immediately when corrections are quick and materials haven't been wasted.

After any machine setup change, cut five test pieces before running production. Check the first piece for basic dimensions. Examine the third for consistency. Review the fifth for any drift in settings. This protocol—taking perhaps five minutes—prevents costly mistakes that could affect dozens of drawers.

The path to efficient drawer production isn't mysterious. It requires understanding how specialized equipment—dovetailers, drawer clamps, and notchers—work together to eliminate uncertainty at each production stage. These tools don't just speed up existing processes; they transform how drawer work happens in fundamental ways.

Manual processes demand constant vigilance. Every joint requires careful attention. Each clamping operation needs checking and rechecking. Hardware installation means repeated measuring and marking. This approach works but extracts heavy costs in time, consistency, and operator stress.

Dedicated equipment shifts the burden from operator skill to mechanical precision. Dovetail machines cut identical joints regardless of how many drawers have already been produced. Pneumatic clamps apply consistent pressure that doesn't vary with operator fatigue. Notching equipment positions hardware mounting points with repeatable accuracy.
