Product details
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
| Manufacturer: | Cantek |
| Part Number: | C251-1 |
| MPN: | C251 (1PH) |
The Cantek C251 24" Wide belt Sander (1Phase) delivers high-end sanding performance in a compact design. Equipped with a combination sanding unit, digital thickness control, and a durable heavy-duty frame, it's built for precision and reliability. Whether you're calibrating material or applying a fine finish, this sander provides versatility for a range of woodworking applications, all while saving shop space.
Key Features & Benefits
Compact Powerhouse
• Space-saving footprint makes it ideal for shops with limited room
• Delivers industrial-grade sanding without the bulk of larger machines
• Ideal for small to mid-size production operations that need versatility
Easy Digital Precision
• Motorized table adjusts automatically to the set height for accurate results
• Switch between inch and metric settings with ease
• Minimizes setup time and human error for consistent sanding outcomes
Versatile Combination Sanding

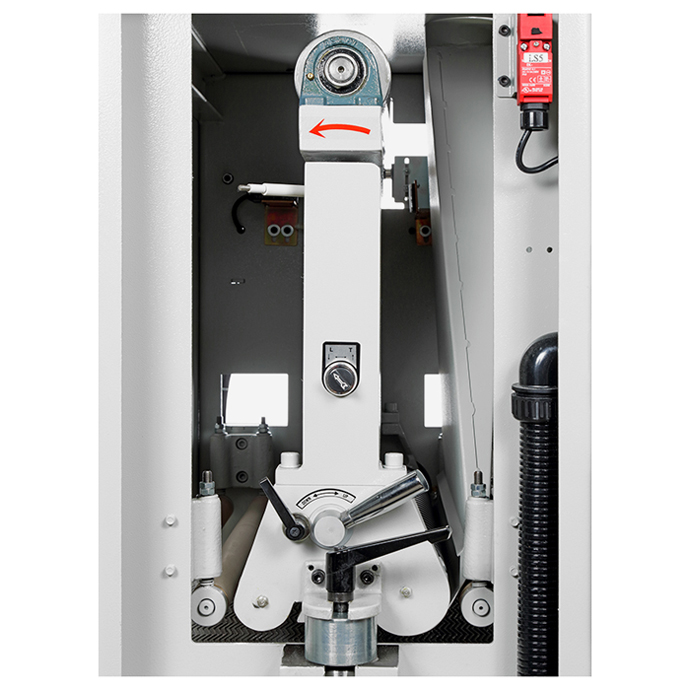

• Equipped with a 3-3/8" rubber contact drum for calibration
• 2" adjustable sanding platen delivers fine finishes with ease
• Suitable for both heavy stock removal and final surface prep
Fast Belt Changes
• Pneumatic tensioning with quick-release support makes swaps easy
• Disc brake on the main motor stops the belt quickly for safety and speed
• Simplifies maintenance and improves shop productivity
Smarter, Safer Operation

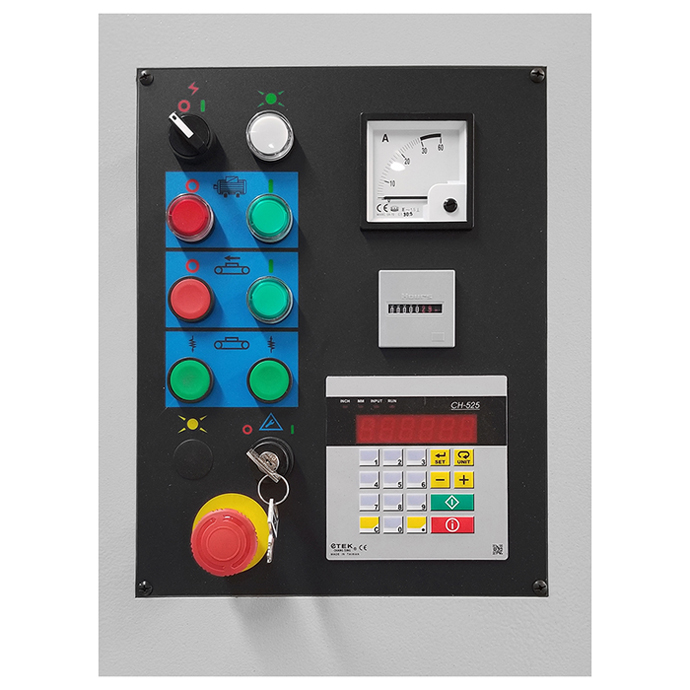

• Ammeter helps monitor load to avoid over-sanding or motor stress

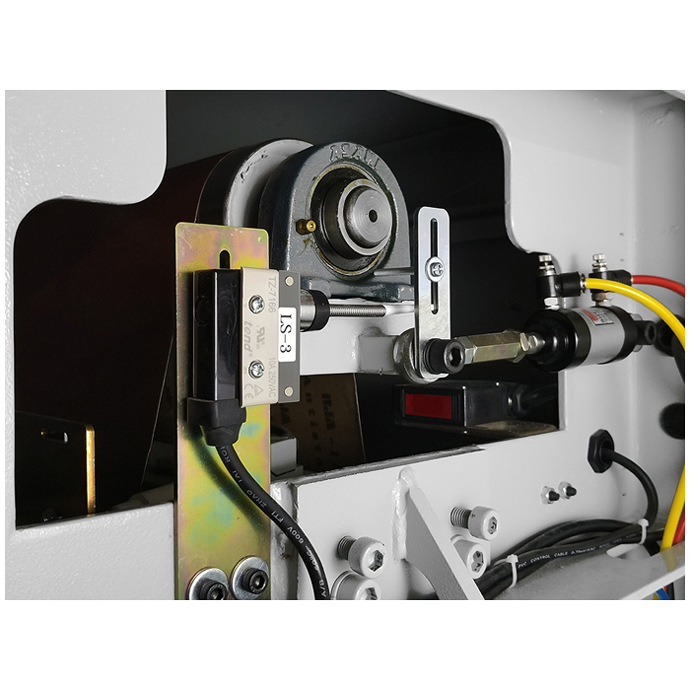

• Over-height limit switch protects machine from oversized materials
• Hour meter tracks run-time for timely service and maintenance planning
Clean, Consistent Part Control

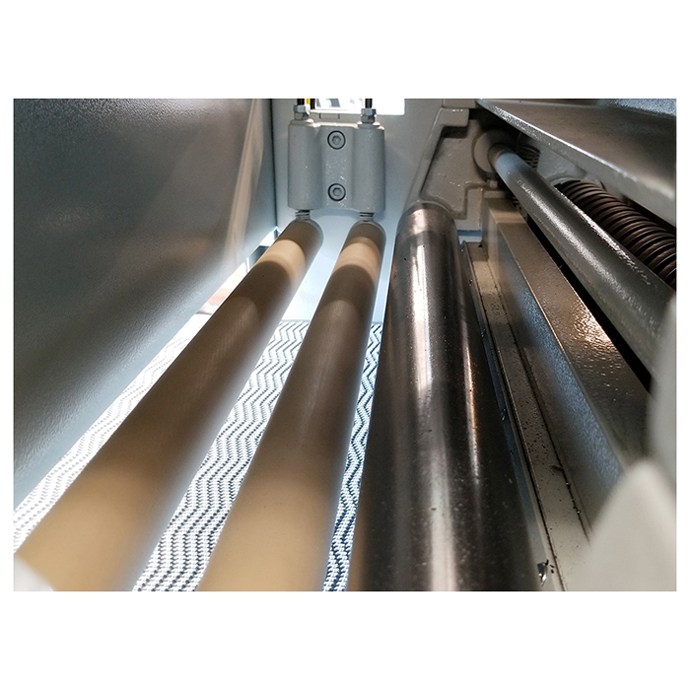

• Dual infeed and outfeed pressure rolls provide firm hold-down during sanding
• Ensures smoother feed with minimal vibration or shifting
• Works great with longer or thinner materials that require stability
Key Features & Benefits
Compact Powerhouse
• Space-saving footprint makes it ideal for shops with limited room
• Delivers industrial-grade sanding without the bulk of larger machines
• Ideal for small to mid-size production operations that need versatility
Easy Digital Precision
• Motorized table adjusts automatically to the set height for accurate results
• Switch between inch and metric settings with ease
• Minimizes setup time and human error for consistent sanding outcomes
Versatile Combination Sanding
• Equipped with a 3-3/8" rubber contact drum for calibration
• 2" adjustable sanding platen delivers fine finishes with ease
• Suitable for both heavy stock removal and final surface prep
Fast Belt Changes
• Pneumatic tensioning with quick-release support makes swaps easy
• Disc brake on the main motor stops the belt quickly for safety and speed
• Simplifies maintenance and improves shop productivity
Smarter, Safer Operation
• Ammeter helps monitor load to avoid over-sanding or motor stress
• Over-height limit switch protects machine from oversized materials
• Hour meter tracks run-time for timely service and maintenance planning
Clean, Consistent Part Control
• Dual infeed and outfeed pressure rolls provide firm hold-down during sanding
• Ensures smoother feed with minimal vibration or shifting
• Works great with longer or thinner materials that require stability
Specifications
Manufacturer Cantek Part Number C251-1 Manufacturer's Part C251 (1PH) Weight 1,584.000 lbs Belt Size 25" x 60" Compressed Air Requirements 2 CFM @ 90 PSI Feed Belt Speed 13 - 52 FPM Feed Motor 1 HP Infeed Table 11-1/2" (292 mm) Machine Dimensions 53" x 50" x 63" (1346 x 1270 x 1600 mm) Max. Thickness Opening 4" (100 mm) Max. Width Stock 24" (609 mm) Min/Max Working Thickenss 4" (100 mm) Min. Part Length 13" (330 mm) Motor 10 HP No. Of Heads 1 Passline Height 33" – 38" (838 – 965 mm) Phase 1 Table Rise/Fall Motor 1/2 HP
