Beginners Guide to Pocket Hole Machines

If you've ever wondered how furniture makers create those incredibly strong joints that seem to hold together effortlessly, you've likely encountered pocket hole joinery without realizing it. Think of pocket hole machines as specialized tools that create hidden, angled holes in wood, allowing you to connect two pieces with screws in a way that's both incredibly strong and completely invisible from the front.

Imagine trying to connect two boards at a right angle, like building a simple box. Traditional methods might involve complex cuts, glue that takes hours to dry, or visible screws that detract from the finished appearance. A pocket hole machine solves this challenge by drilling a precise, angled hole from the back or inside surface of one board. This hole, called a pocket hole, guides a special screw at just the right angle to grab into the second board, creating a joint that's stronger than many traditional methods while remaining completely hidden.

Power and Drilling Capacity of Pocket Hole Machines

When shopping for a pocket hole machine, the power of the motor determines how easily and smoothly it will drill through different types of wood. Think of this like comparing a hand-crank can opener to an electric one. While both can open a can, the electric version works faster and with less effort, especially when you have many cans to open.

Motor power in pocket hole machines is measured in amps, typically ranging from seven to fifteen amps. A seven-amp motor works perfectly fine for softwoods like pine or cedar, and even many hardwoods if you're working on occasional projects. However, if you plan to work with dense hardwoods like oak or maple regularly, or if you're tackling thick materials like two-inch lumber, a more powerful motor will prevent the frustrating experience of the drill bit slowing down or the motor straining during use.

Clamping Systems

The clamping system on a pocket hole machine serves the same purpose as a vice on a workbench, but with much more precision required. When you're drilling an angled hole that needs to be perfect for the screw to work properly, any movement or vibration in the workpiece will ruin the hole and potentially waste your material.

A quality clamping system should hold your wood firmly without requiring you to apply excessive force to the clamp handles. If you find yourself struggling to tighten the clamps, or if the wood can still wiggle slightly when clamped, the machine won't produce consistent results. Look for machines with substantial, well-built clamps that feel solid when you operate them.

Depth Control

Understanding depth control requires thinking about what happens inside the wood when you drill a pocket hole. The hole starts at an angle on the back surface, travels through the wood at that same angle, and should stop just short of breaking through the front surface. If the hole isn't deep enough, the screw won't have enough material to bite into for a strong joint. If it's too deep, the drill bit might break through the front face, ruining the appearance of your project.

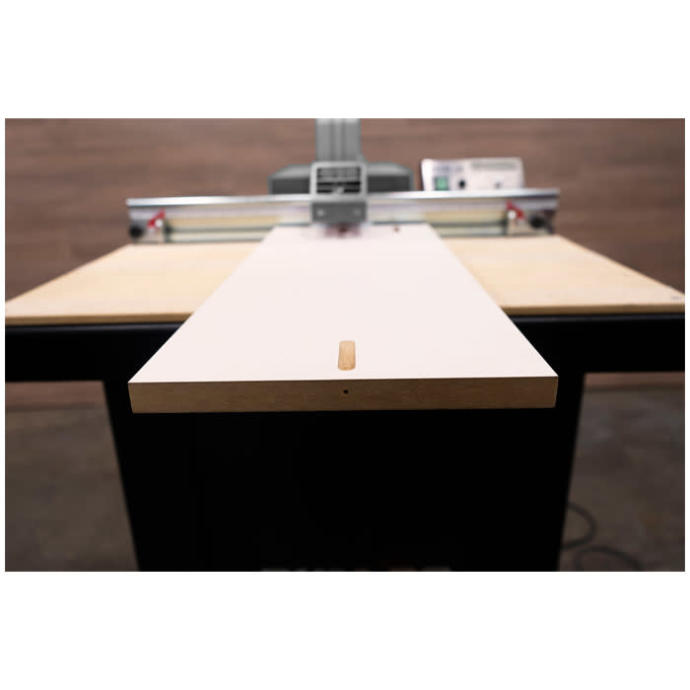

Quality pocket hole machines include depth adjustment mechanisms that let you set exactly how deep the drill bit penetrates. The best machines have clear, easy-to-read depth scales with precise adjustment capabilities. Some include preset stops for common material thicknesses. This means that once you set the depth for three-quarter-inch plywood, every hole you drill will be exactly the same depth, ensuring consistent results across your entire project.

How Does Build Quality Affect Reuslts

The construction quality of a pocket hole machine directly impacts the precision of every hole it drills. Imagine trying to draw a straight line with a wobbly ruler versus a solid metal straightedge. Even small amounts of flex or play in the machine's structure will translate into inconsistent hole angles and depths.

Machines built with heavy-duty materials like cast iron or steel provide the stability needed for precise, repeatable results. The weight itself actually helps, as heavier machines tend to vibrate less during operation and stay put on your workbench. Lighter machines made primarily from aluminum or plastic may seem more portable, but they often sacrifice accuracy and durability.

Dust Collection Systems

Drilling pocket holes creates a surprising amount of wood chips and fine dust, much more than you might expect from such a small hole. This debris doesn't just create a mess; it can actually interfere with the drilling process and make it difficult to see what you're doing.

Effective dust collection serves several purposes beyond just keeping your shop clean. When chips and dust are quickly removed from the drilling area, you can see exactly where you're drilling and ensure proper alignment. The drill bit also stays cooler and cuts more efficiently when it's not fighting through accumulated debris.

Machines with built-in dust collection ports can connect directly to a shop vacuum or dust collection system. This creates suction right at the point where chips are being created, capturing most of the debris before it can spread around your workspace. Even if you don't have a shop vacuum, some machines include chip deflectors or collection trays that catch debris and prevent it from flying around your shop.

Portability Versus Stability

The choice between a portable and stationary pocket hole machine depends largely on how and where you plan to use it. Portable machines are designed for contractors and woodworkers who need to bring their tools to different job sites. They typically fold up into a compact carrying case and weigh significantly less than their stationary counterparts.

However, this portability comes with trade-offs. Portable machines generally have smaller motors, lighter construction, and may not accommodate materials as thick as stationary units. Think of it like comparing a laptop computer to a desktop workstation. The laptop offers mobility but sacrifices some performance, while the desktop provides maximum capability at the cost of portability.

Pocket hole machines span a wide price range, from basic models under one hundred dollars to professional units costing over one thousand dollars. Understanding what drives these price differences helps you make a smart purchasing decision based on your actual needs rather than just buying the cheapest or most expensive option.

Entry-level machines typically sacrifice some precision, durability, and capacity to achieve their lower price points. They work perfectly well for occasional use and simple projects, but may not hold up to regular use or provide the consistency needed for fine woodworking. Think of them like basic tools that get the job done without frills.

Professional-grade machines justify their higher cost through superior build quality, greater precision, larger capacity, and better long-term durability. They're designed for daily use and can handle demanding applications that would quickly wear out a basic machine. However, if you're only planning to use a pocket hole machine occasionally for simple projects, paying for professional features you won't use doesn't make financial sense.
