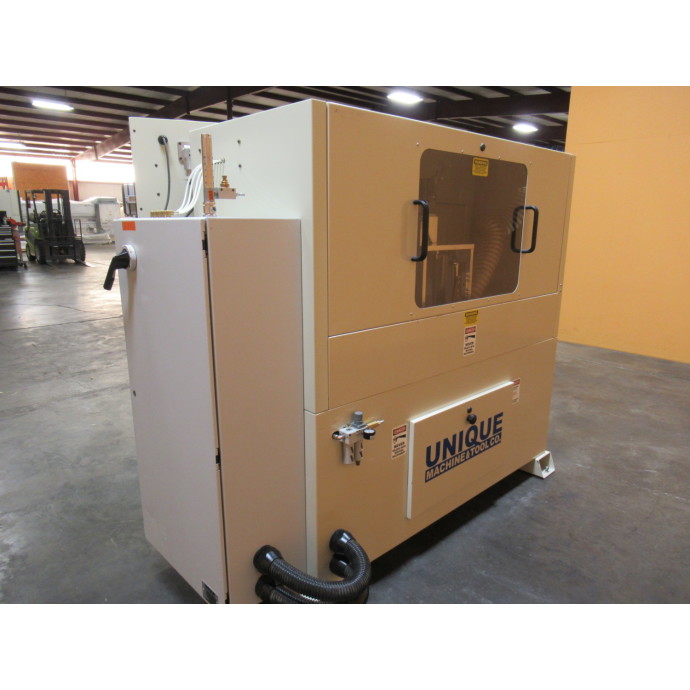

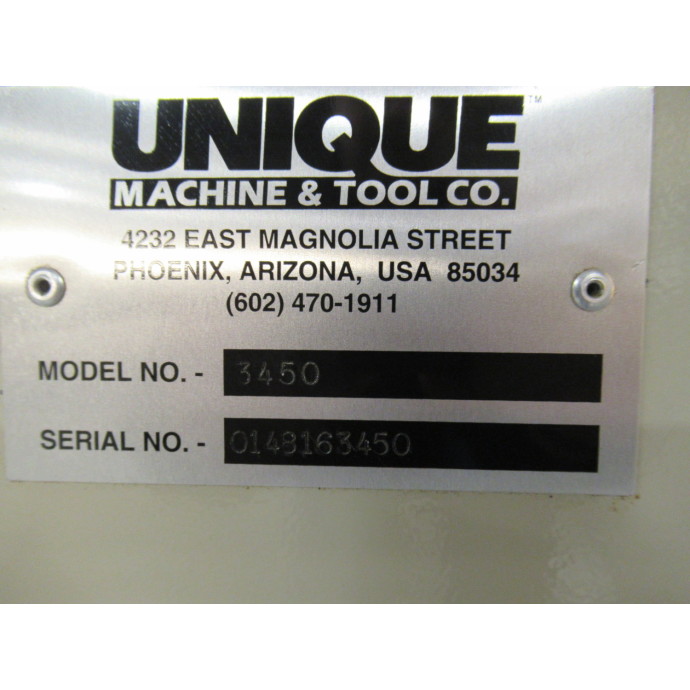

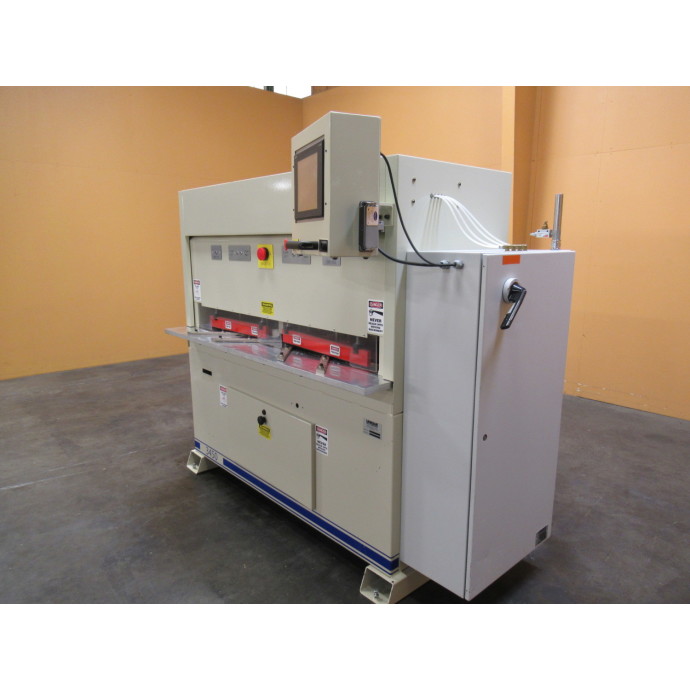

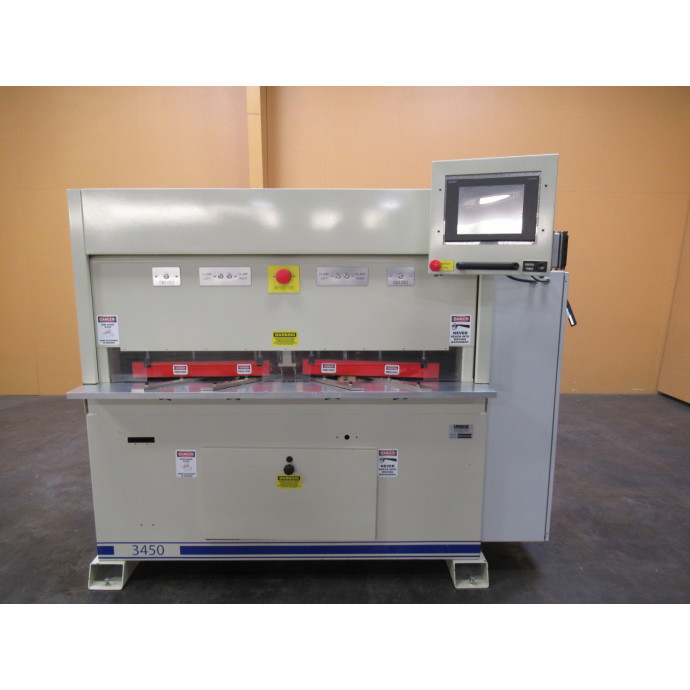

Used Unique 3450 CNC Mortise and Tenon Machine.

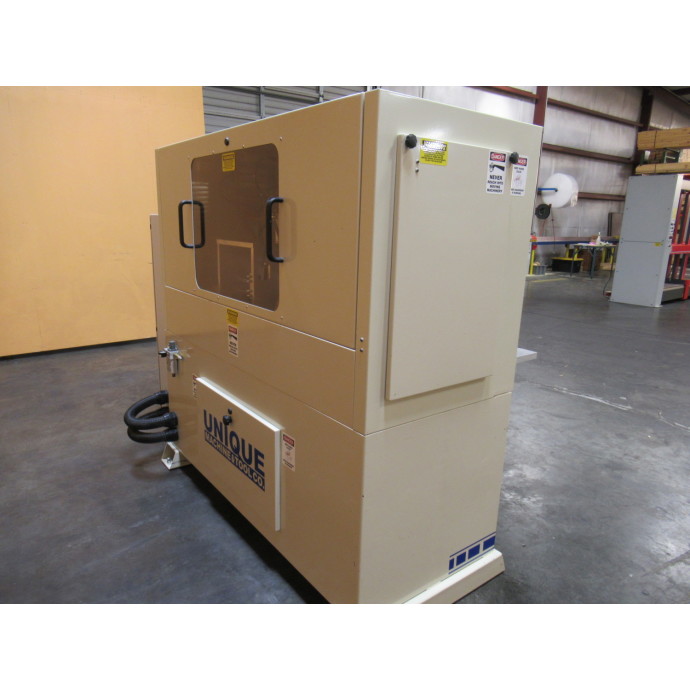

• One piece precision ground welded frame with sound enclosure
• Compact design allows for pendulum (4 part capacity) processing for maximum product throughput

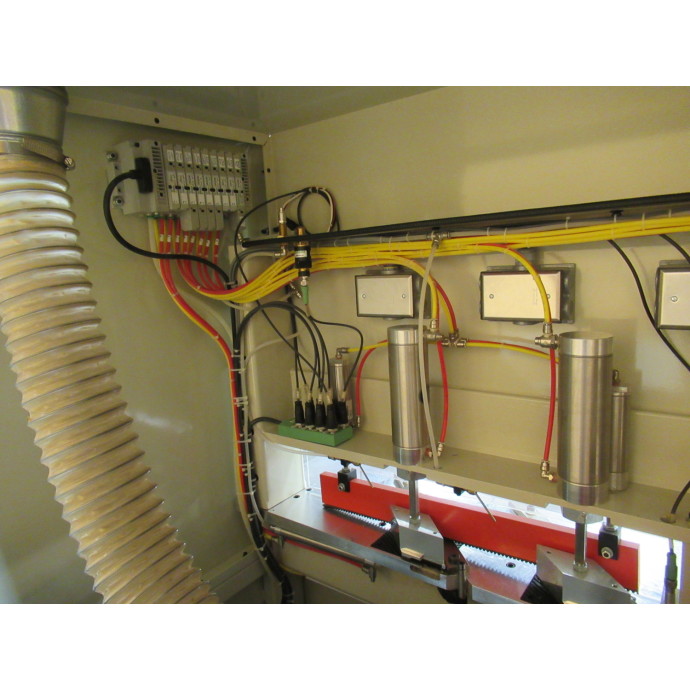

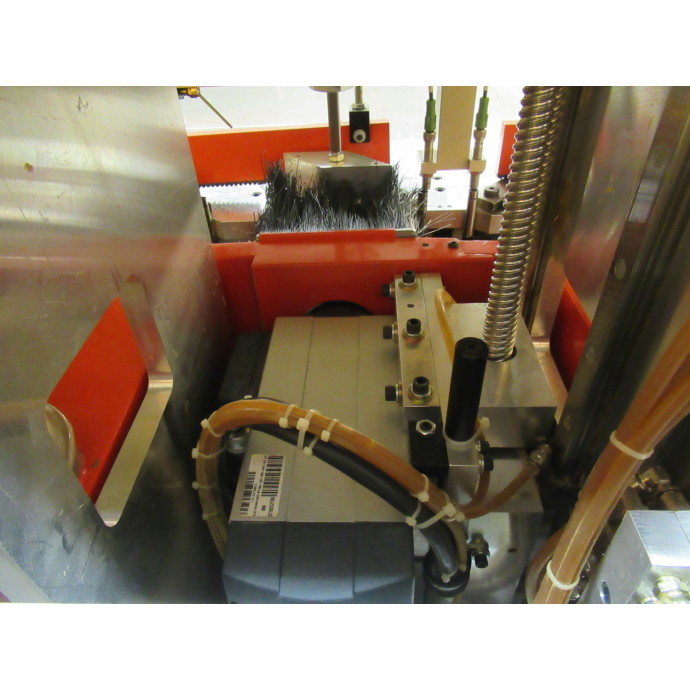

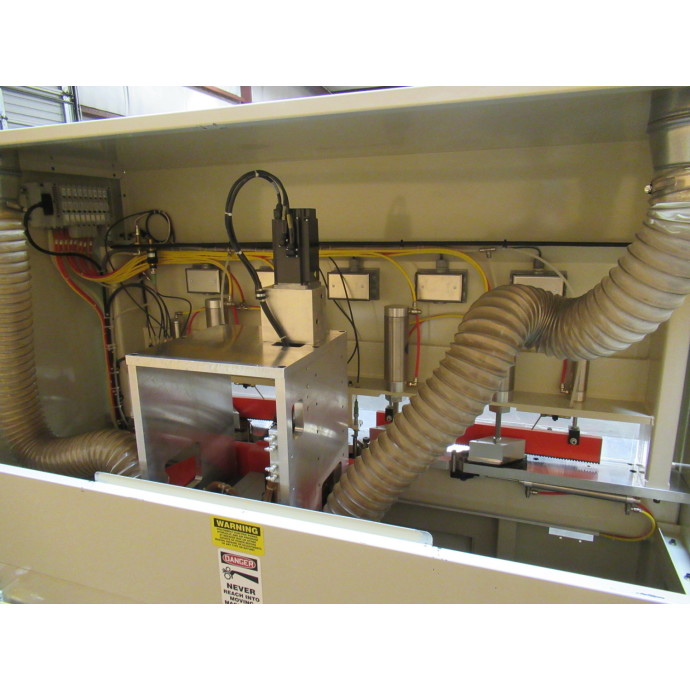

• Two Router Stations: 8.2 HP HSD Router Motors
• Mitsubishi variable speed frequency drives

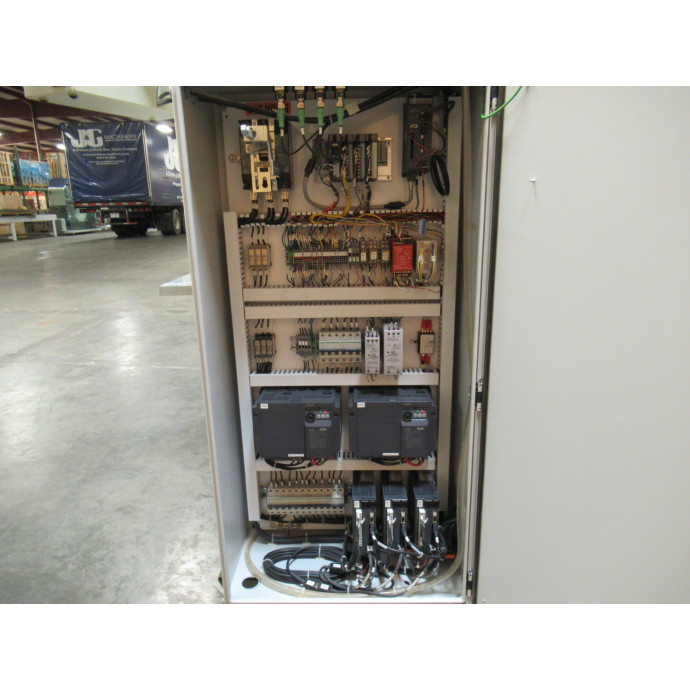

• Mitsubishi CNC Control System
• THK Linear bearings & guides
• Precision Ball Screws on all THREE CNC axis

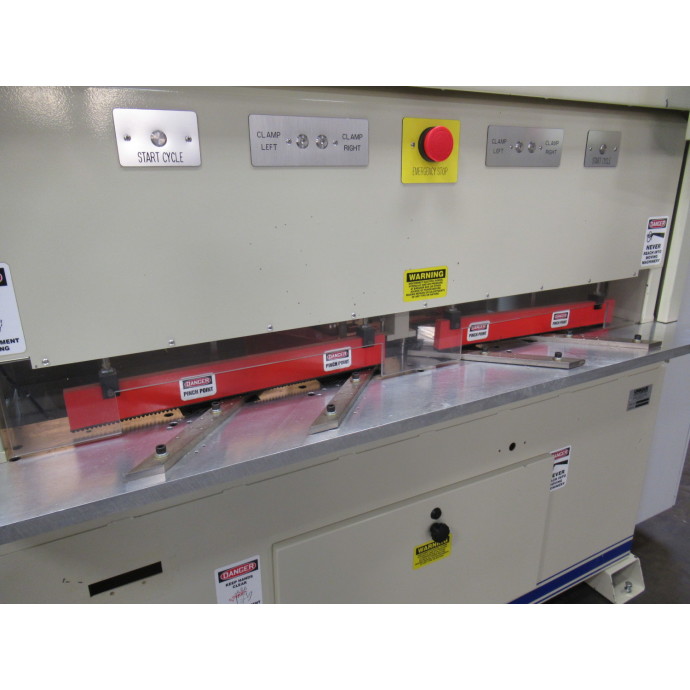

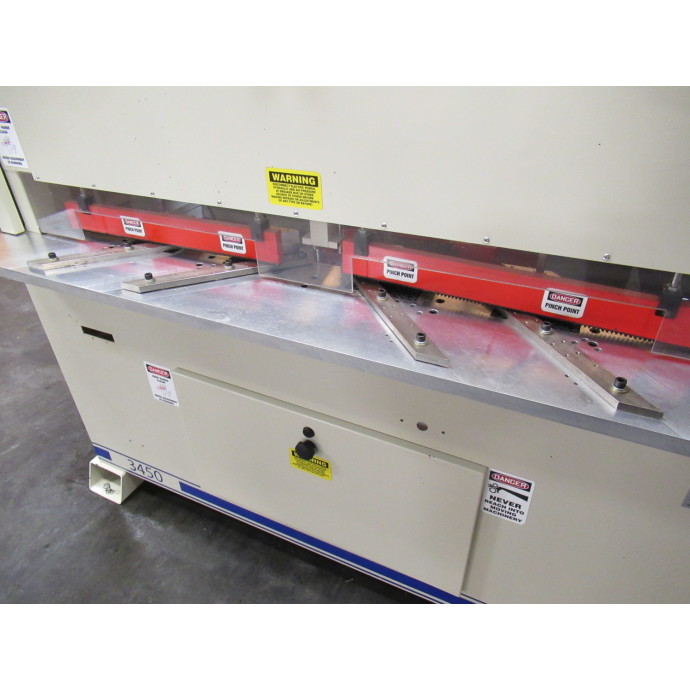

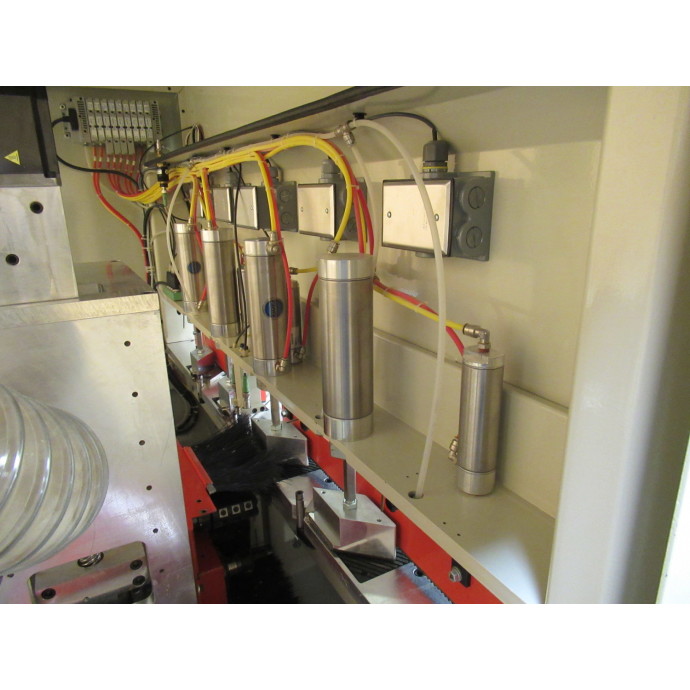

• Heavy duty clamp cylinders and dual zone clamp bar with 2" Capacity
• Mitsubishi Industrial HMI user friendly web based interfaced (NO Windows errors!)
• Fully Enclosed solid state industrial Mitsubishi HMI Computer

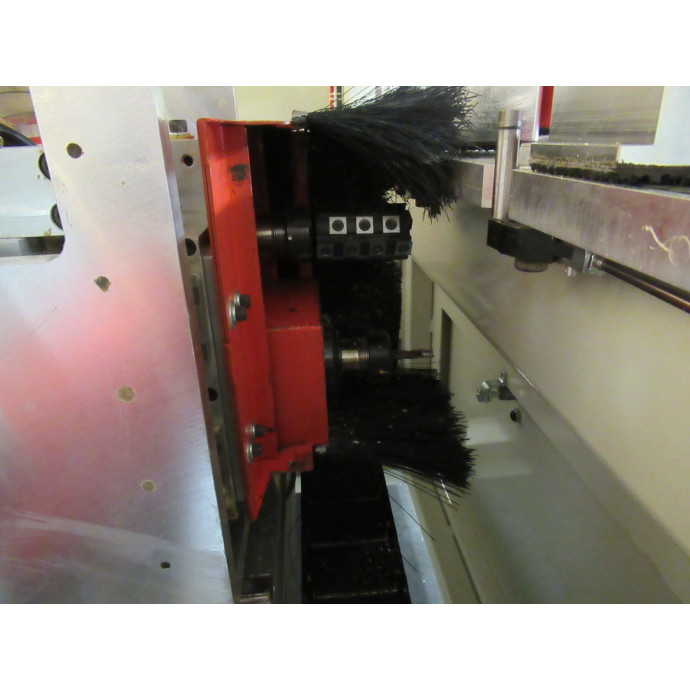

• Great Lakes Carbide Mortise and Tenon Tooling with glue relief scoring
• "UMTPro" Software. The software controls the feed rates, cut speeds, router rpm & mortise & tenon size.
• All of this data can be saved as programs by storing all of this data for specific moulding profiles and wood species. The programs can be quickly recalled and easily manipulated and modified
• Maximum material thickness: 2-1/2"
• Maximum material width: 5" when machine 4 pieces simultaneously
• Maximum material width: 6" when machine 2 simultaneously
• Minimum material length: 4-7/8" at 2" wide
• Air required: 90 psi, 1.5 cfm
• Dust Collection: (2) 5" ports, 2,400 cfm
• Electrical Requirements: 78.6 FLA @ 220 Volt
• Machine weight: 2,000 lbs.
