Used SCMI Multitech Plus Boring Machine.
The Multitech Plus two features two 21 spindle heads for line system hole boring plus a range of other features which increase its versatility.
VERTICAL BORING HEADS

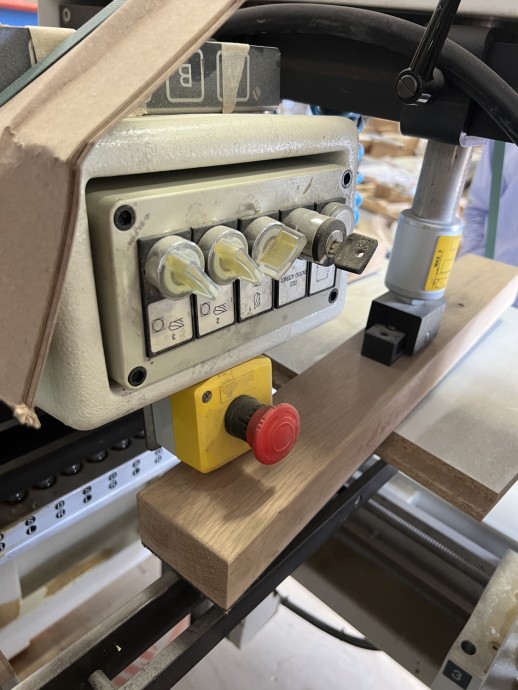

The boring heads are positioned along recirculating ball screws with lead nuts. There are decimal indicators accurate to within 0.1 millimeter for each head. Two pneumatic hold downs can be manually positioned to securely hold the workpiece. The boring heads are made from a special aluminum alloy. This alloy allows the head, including the bearing housing, to be made entirely in one piece. This design provides as much as five times the precision of heads made from multiple components.
HORIZONTAL BORING HEAD
The horizontal boring head is equipped with 21 spindles and the drilling cycle is independent from the vertical heads. Drilling height is manually adjustable and features a mechanical digital readout.
TECHNICAL SPECIFICATIONS
Motor horsepower 1.8 HP ea.
Distance between spindles 32mm
Minimum distance between heads 150mm
Maximum distance between heads 1000mm
Speed of spindles 3300rpm
Number of boring bits (per head) 11 RH/10 LH
Maximum drilling stroke 90mm (3 1/2")
Maximum width of panel under boring unit 2900mm (114”)
Maximum panel thickness 70mm (2 3/4”)
Minimum panel thickness 10mm (3/8”)
Pneumatic operating pressure 88 psi
Height of worktable 870mm (35”)
Shipping weight 750kg (1, 650 lbs)
Electrical requirements 25 amps @ 230 volts, 3phase
Year: 2007

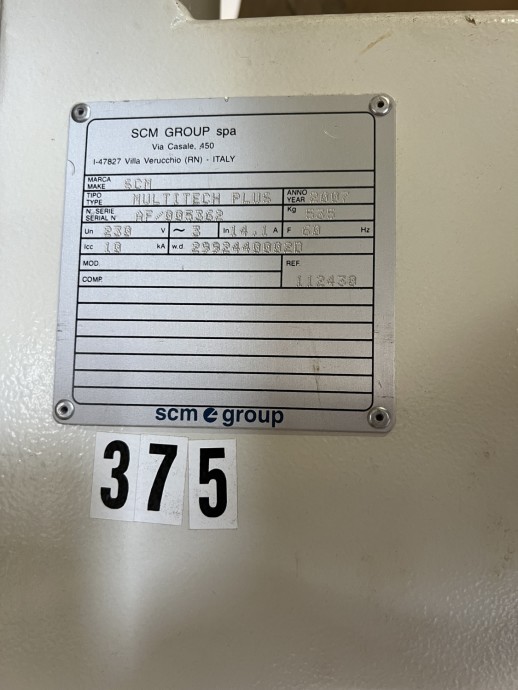

Serial Number: AF/005362.
