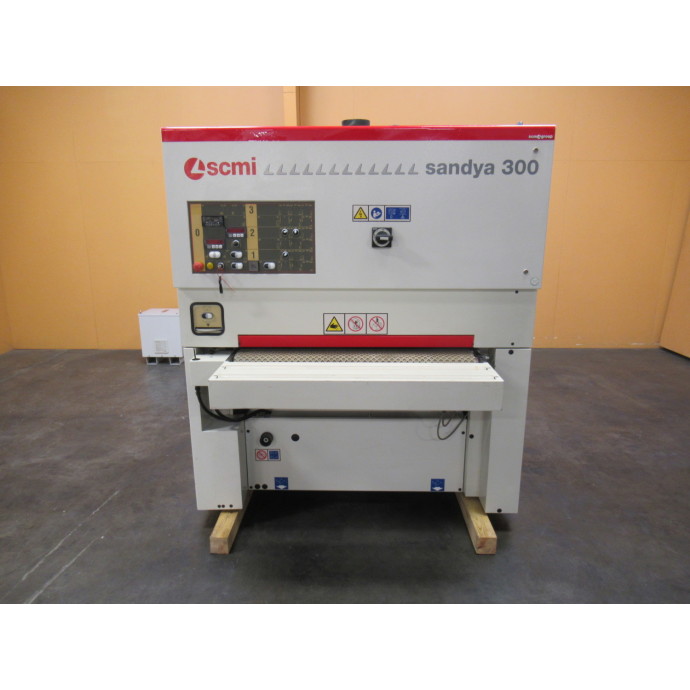

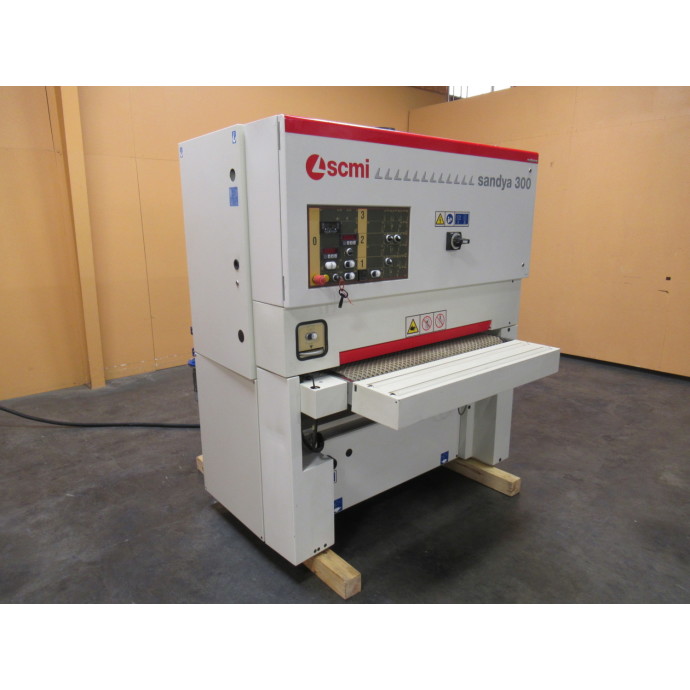

• 2-head 43" wide capacity;

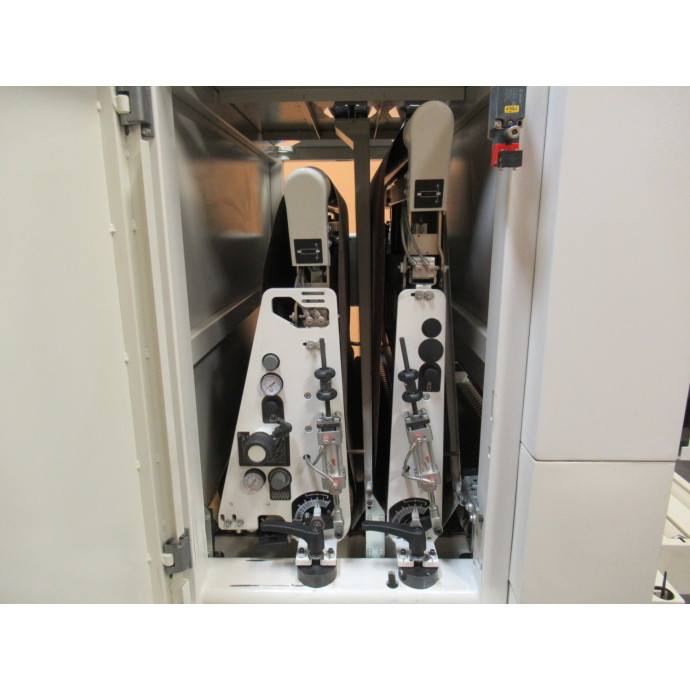

• 1st head: 120 mm (5.5") dia. steel calibrating drum with 30 HP motor shared;
• 2nd head: Combination 120 mm (5.5") 45 durometer rubber drum with 60 mm (2.36") wide "TES" air cushion pad platen
• 170 mm (6.69") max. part thickness
• Uses 43" X 75" abrasive belts
• Automatic feed belt tracking

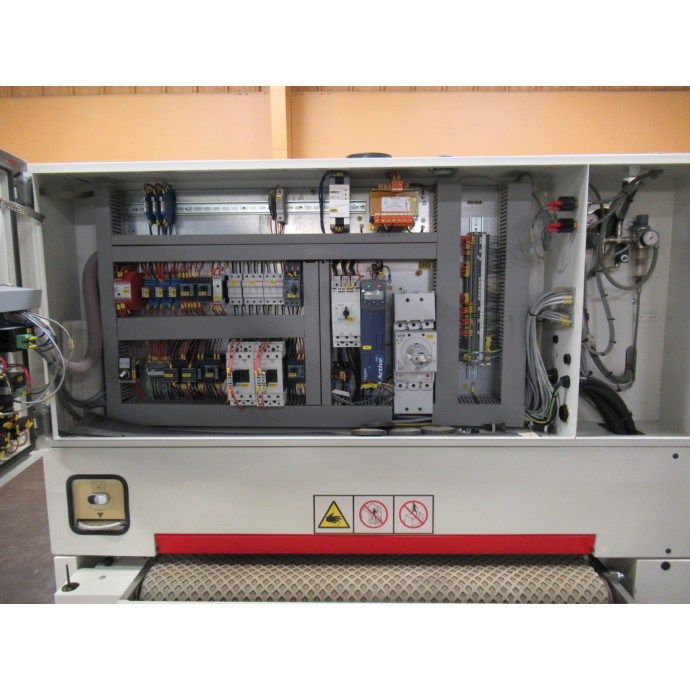

• 10 to 60 FPM feed speeds via 1 HP inverter
• 50 Durometer seamless feed mat with negative profile

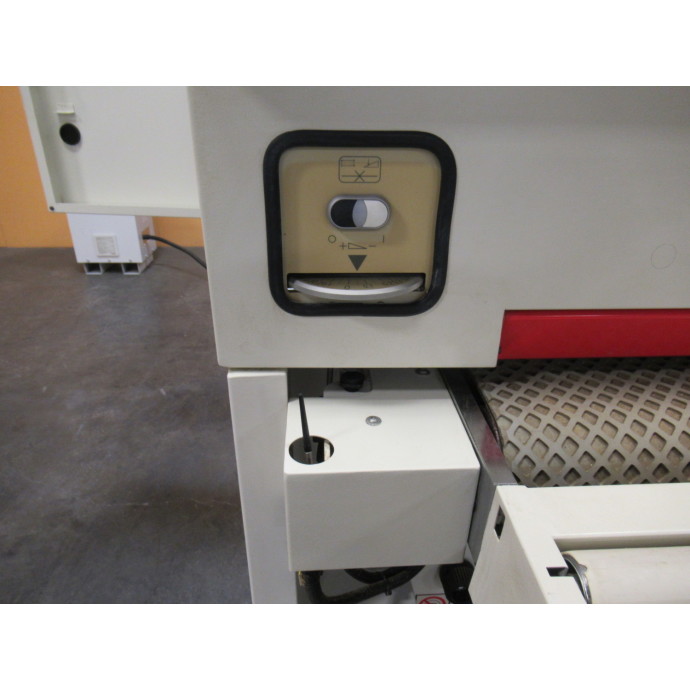

• Adjustable automatic thickness setup device
• Motorized table height adjustment

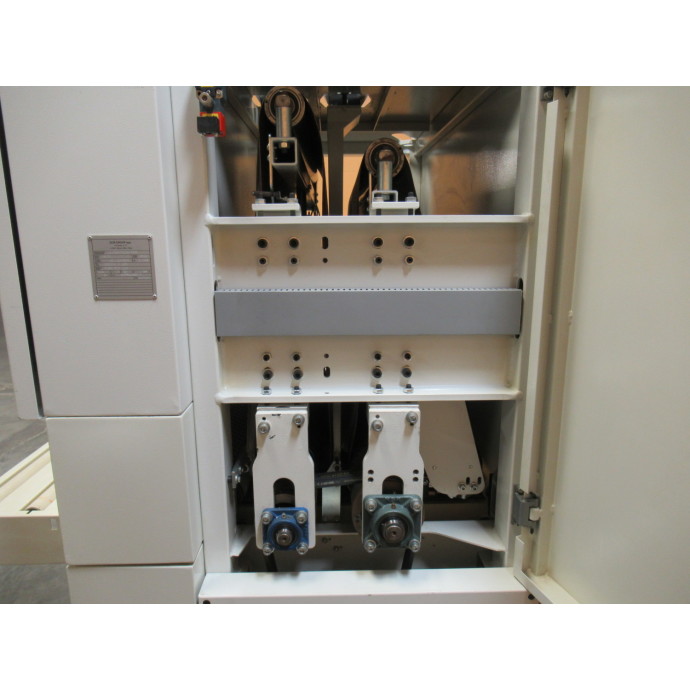

• (4) top and bottom fastened jack screws

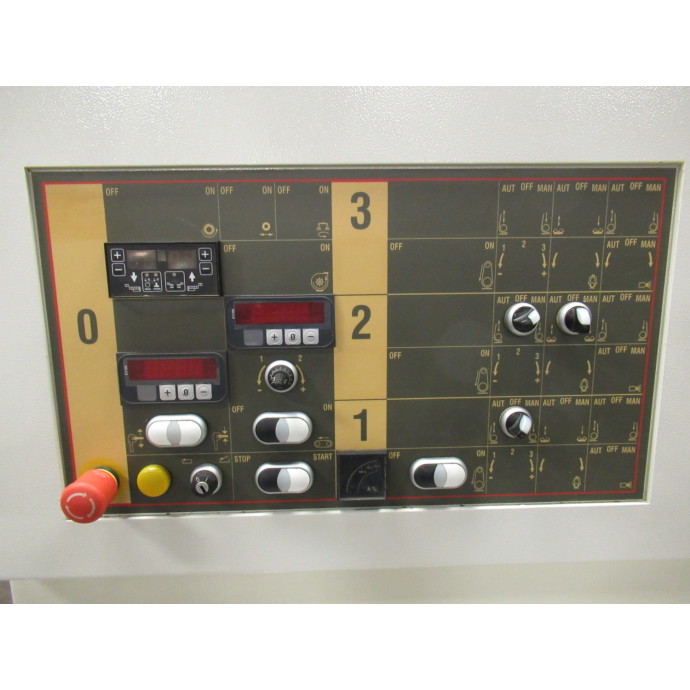

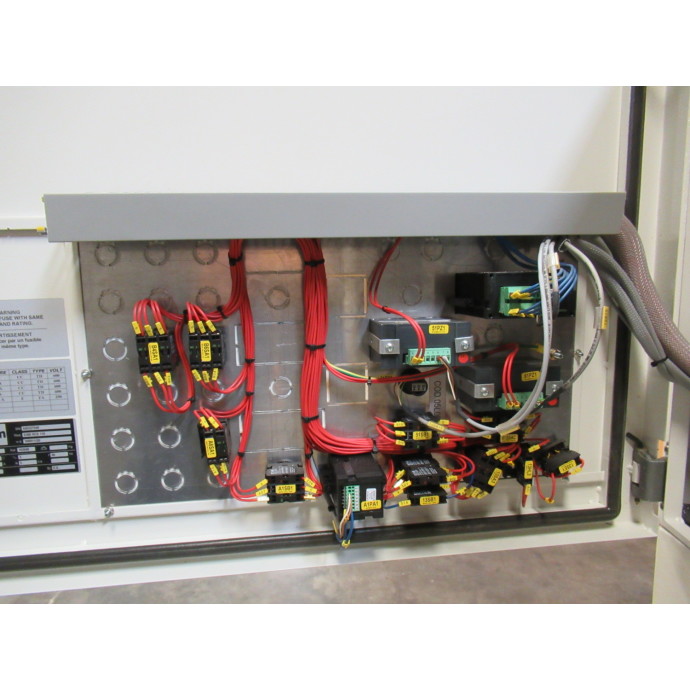

• Logic 50 K Electronic programmer for timing/anti-dubbing of the pad;
• Electronic digital table height indicators

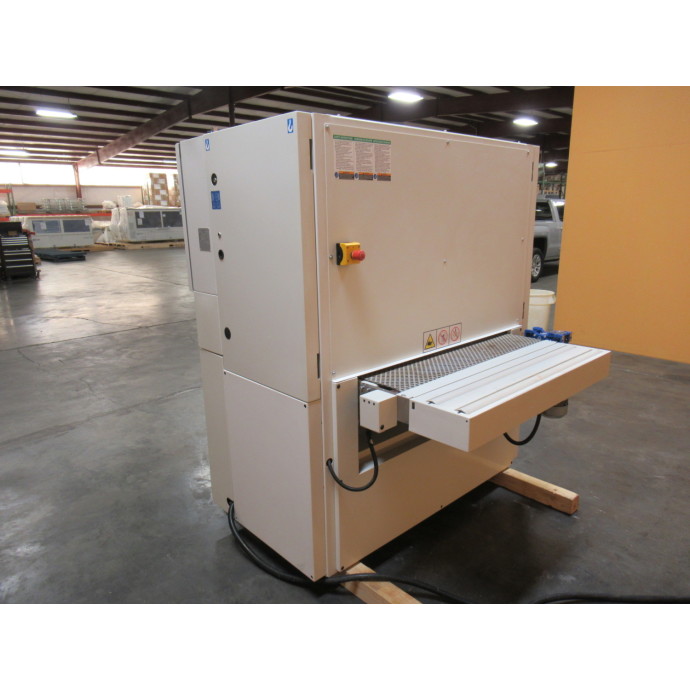

• 2 roller infeed and outfeed roller table extensions
