Features:
• HSK63F Electrospindle

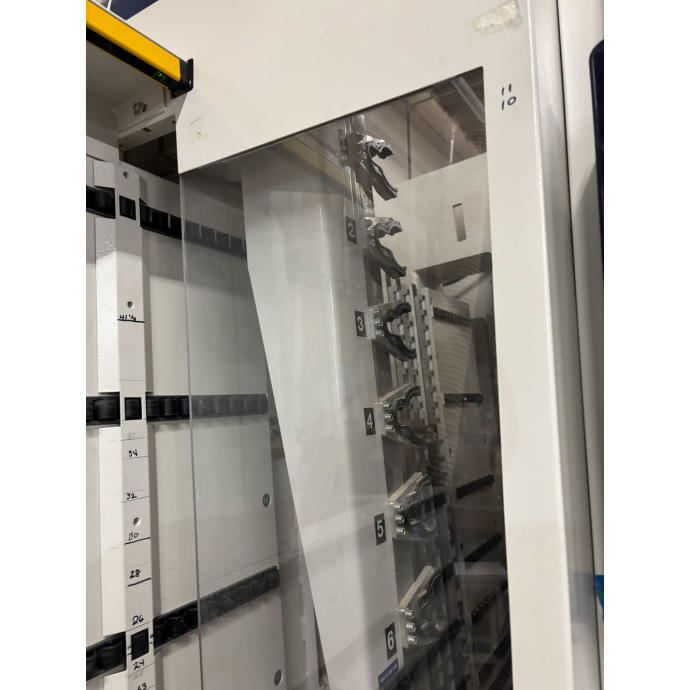

• 6 position tool holder
• (S1/S6) 6.6/7.5 kW (9/10.2 Hp) constant motor power from 12000 to 18000 rpm
• Automatic lubrication
• Autotransformer
• Drilling on 5 faces
• EYE-M PC controller
• 21.5" LCD Color Display

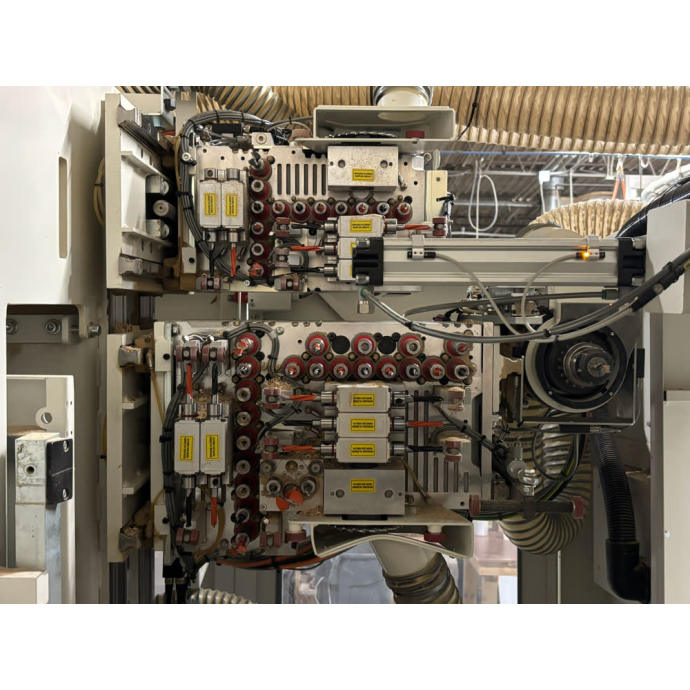

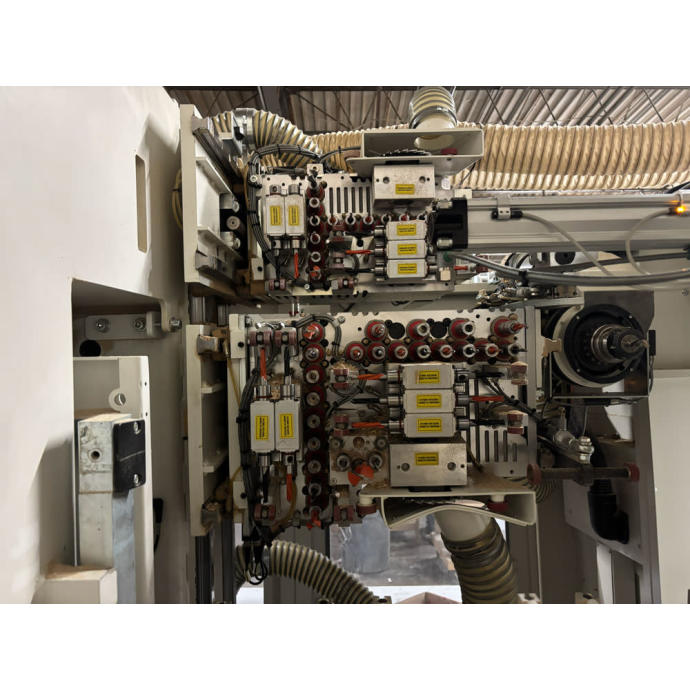

Drill head #1:
• Vertical spindles: 21
• Horizontal spindles in X direction: 6
• Horizontal spindles in Y direction: 4
• Integrated blade in X axis: Ø 125mm
• Max. saw blade thickness: 6 mm
• Motor power: 2,2 (3) kW (HP)
Drill head #2:
• Vertical spindles: 13
• Horizontal spindles in X direction: 6
• Horizontal spindles in Y direction: 2
• Integrated blade in X axis: Ø 125mm
• Max. saw blade thickness: 6mm
• Motor power 2,2 (3) kW (Hp)
