Manufacturer: | Leadermac |
Part Number: | 14476 |
MPN: | 14476 |

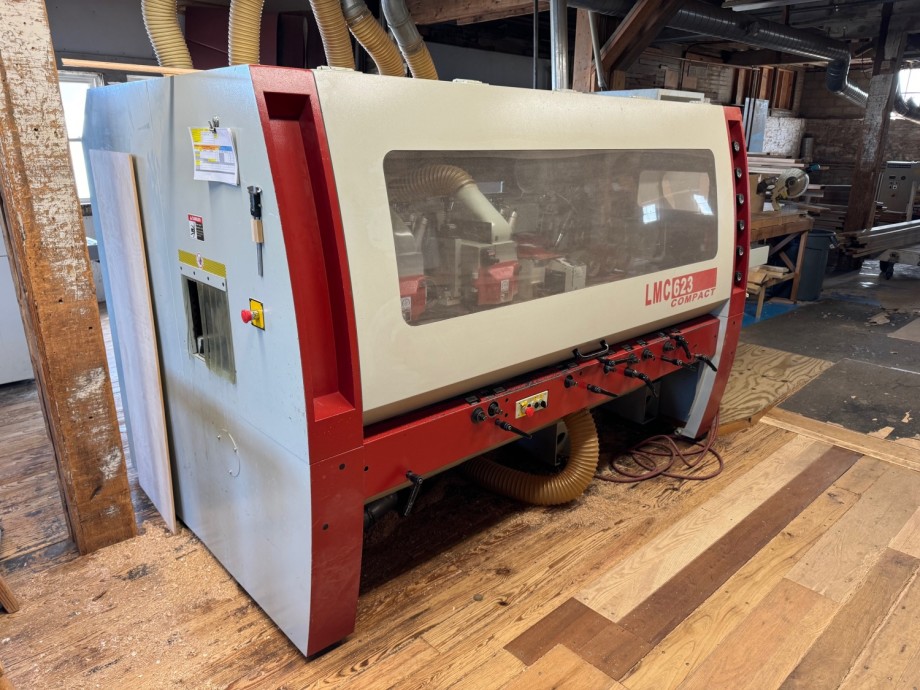

Used Leadermac Model LMC 623C Compact 9" 6 Head Moulder.
Serial number: 1201009
SPECIFICATIONS:
Width - Material: .6" to 9" (12" & 13" optional)
Thickness - Material: .4" to 6"
Note - to .25" thick and/or to 8" or 10" thick optional
Min length of material: 8" (200mm) (Butt fed)
Axial adjust. side heads:1.6 (40 mm)
Axial adjust. top/btm heads: .8" (20mm)
Net weight:11,650lbs.
MAIN FRAME, MACHINE BED & ENCLOSURE
1 Piece - Cast Iron Main Frame. Specially heat treated for maximum stability and minimum vibration
78 inch (2 meter) long Adjustable Straightening Infeed Table and Fence (each adjustable .4 inch) - other table lengths optional
Tables, Chipbreakers, Pressure Plates and Fences are Hard Chromed with approx. .012" chrome thickness (except 1st bottom receiving plate which is alloy steel specially hardened for best wear ability)
Lift up sound and safety Enclosure including safety interlocks and good lighting inside the enclosure
** lower HP application
Serial number: 1201009
SPECIFICATIONS:
Width - Material: .6" to 9" (12" & 13" optional)
Thickness - Material: .4" to 6"
Note - to .25" thick and/or to 8" or 10" thick optional
Min length of material: 8" (200mm) (Butt fed)
Axial adjust. side heads:1.6 (40 mm)
Axial adjust. top/btm heads: .8" (20mm)
Net weight:11,650lbs.
MAIN FRAME, MACHINE BED & ENCLOSURE
1 Piece - Cast Iron Main Frame. Specially heat treated for maximum stability and minimum vibration
78 inch (2 meter) long Adjustable Straightening Infeed Table and Fence (each adjustable .4 inch) - other table lengths optional
Tables, Chipbreakers, Pressure Plates and Fences are Hard Chromed with approx. .012" chrome thickness (except 1st bottom receiving plate which is alloy steel specially hardened for best wear ability)
Lift up sound and safety Enclosure including safety interlocks and good lighting inside the enclosure
** lower HP application
Specifications
Manufacturer Leadermac Part Number 14476 Manufacturer's Part 14476 Weight 11,650.000 lbs
