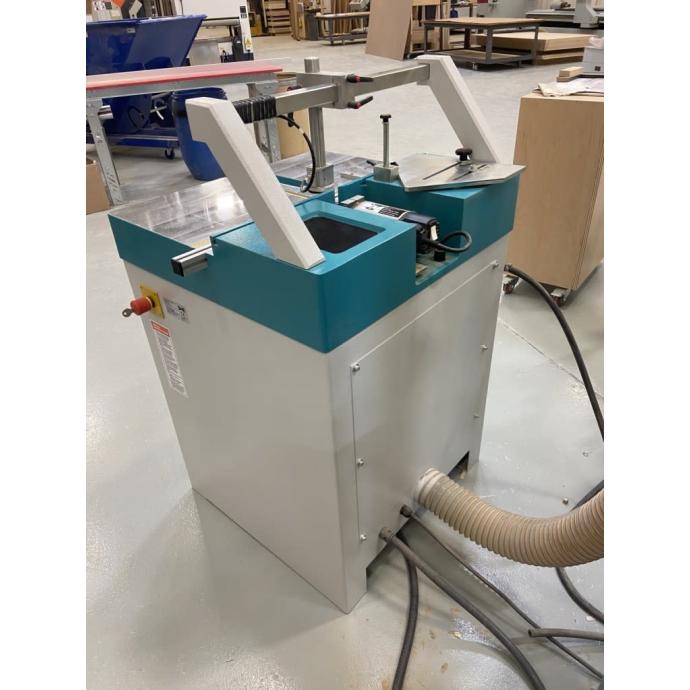

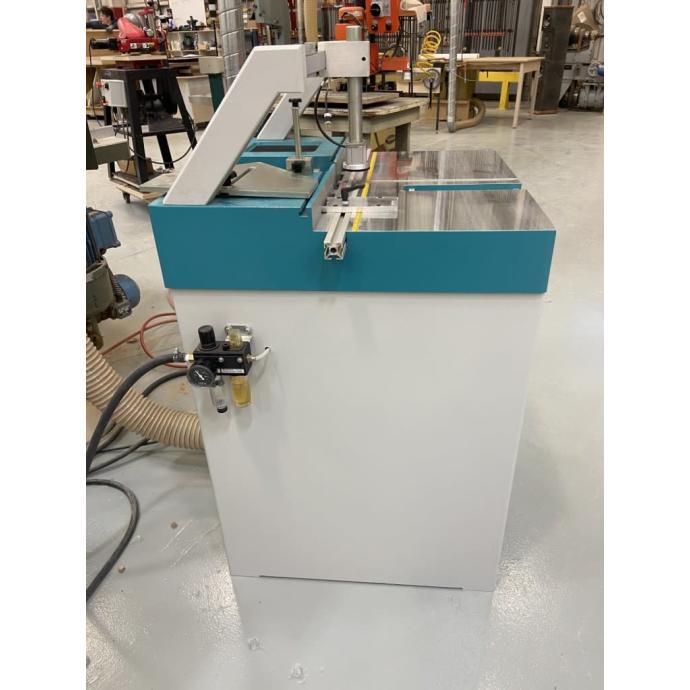

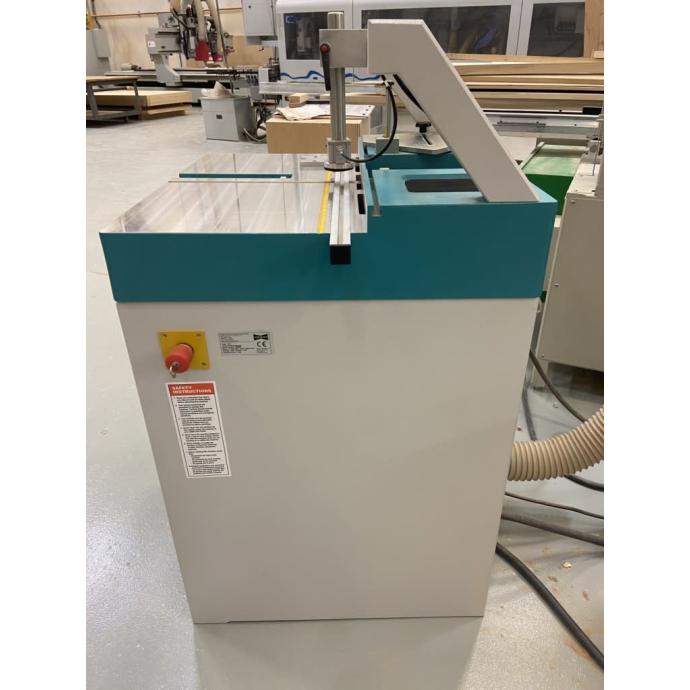

Used Hoffmann PU2 dovetail routing machine.

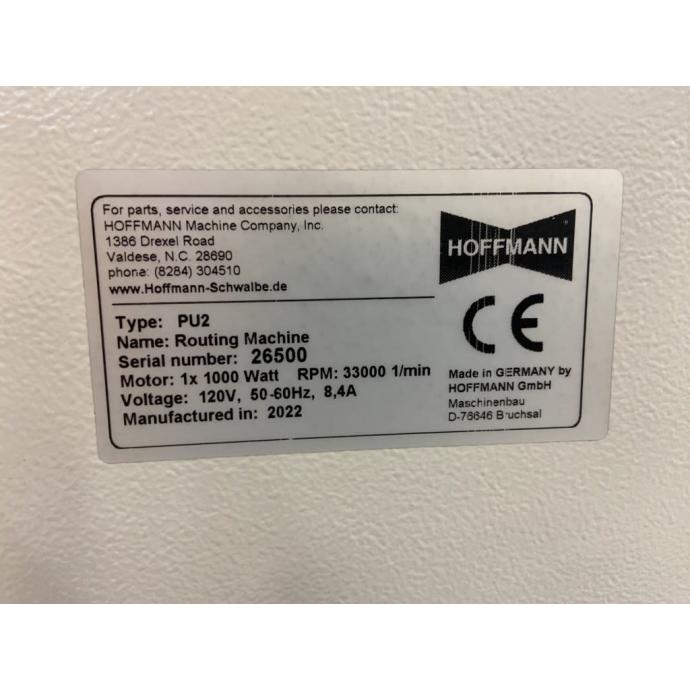

120 volts, 60 Hz; Router Motor: 1,000 watt, heavy-duty construction, built-in overload protection; Motor speed: 33,000 rpm; Collet size: 1/4? and 8mm collets included; Air Supply: 90 psi; Max. routing height: 4"; Max. material height: 5 3/4?; Capacity: approx. 2 rectangular frames per minute; Weight: W-1, W-2, W-3 and W-4; Shipping weight: 297 lbs.;

This model is equipped with a high-speed router motor, located at the center of the machine. The supplied 45 degree fence plate, which is guided in a keyway in the machine table, is used to accurately position the material on the table. The location of the dovetail slots for the Hoffmann Keys is adjusted by simply moving this fence plate. The machine is equipped with a pneumatic foot pedal to start the routing process. Actuating the pedal initiates the routing sequence: 1. pneumatic clamp secures work piece on machine table 2. router head advances until the pre-set height
position is reached 3. router head returns to base position 4. pneumatic clamp releases work piece. Output is approx. 16 routing strokes per minute,
which translates into 2 completely processed rectangular frames. These numbers include material handling, but obviously depend on routing depth,
feed speed, material flow and operator performance as well. Flow control valves on the main pneumatic cylinder allow the operator to adjust the
upward and downward feed rate independently, depending on the material being processed. A heavy-duty cast aluminum table provides a large work
surface, the steel cabinet has a 4? diameter dust collection port on its backside for dust free operation. The supplied router bits are solid tungsten

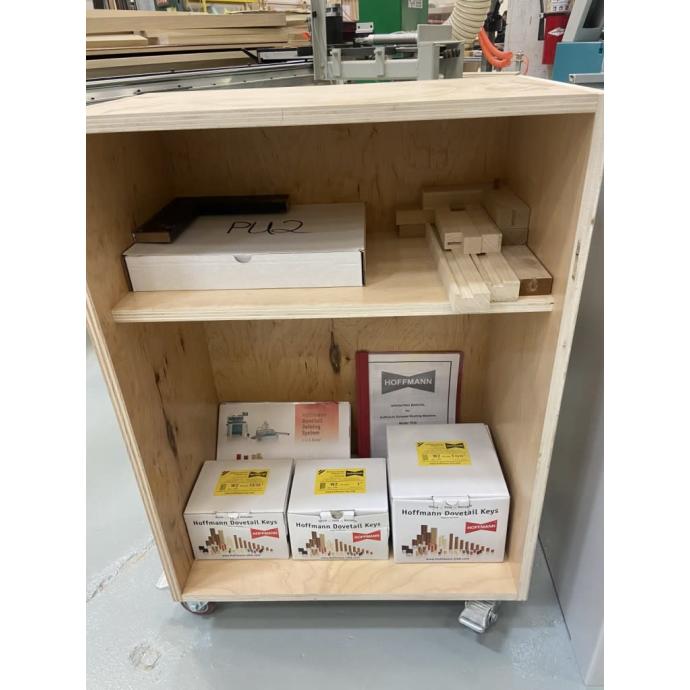

carbide, made to exacting specifications. Depending on the routing depth and the material to be routed, the useable cutter life is approx. 10,000 strokes. Every machine is shipped with a tool kit and set-up jig, which allows a router, bit change in only minutes.
