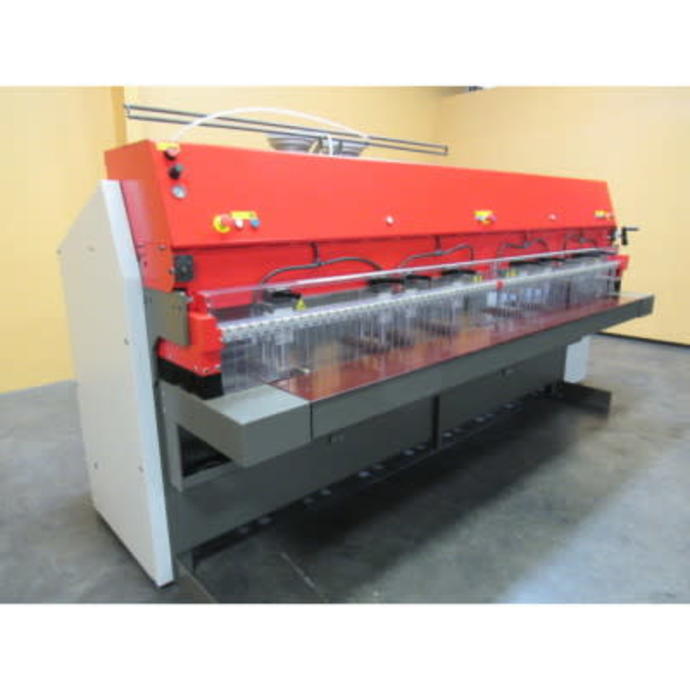

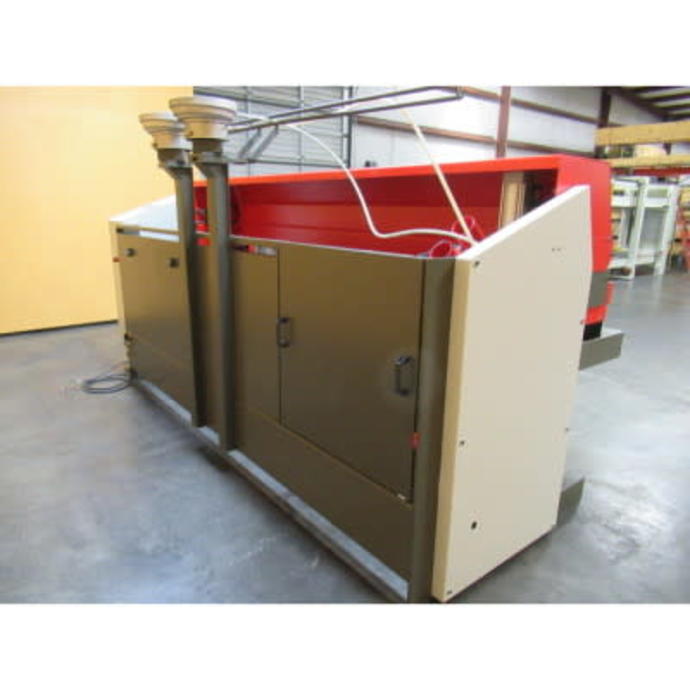

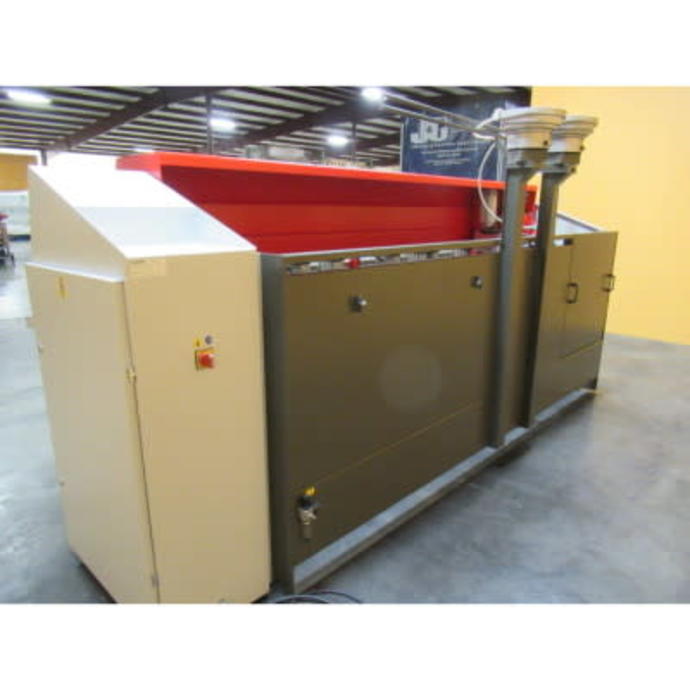

Used Gannomat Index 280 Pro CNC Bore, Glue & Dowel.
- Horizontal-drilling-unit, 1.5 kw motor, with multi spindle drill head
with 3 individually single selectable drilling spindles, pitch 32 mm in
X-axis

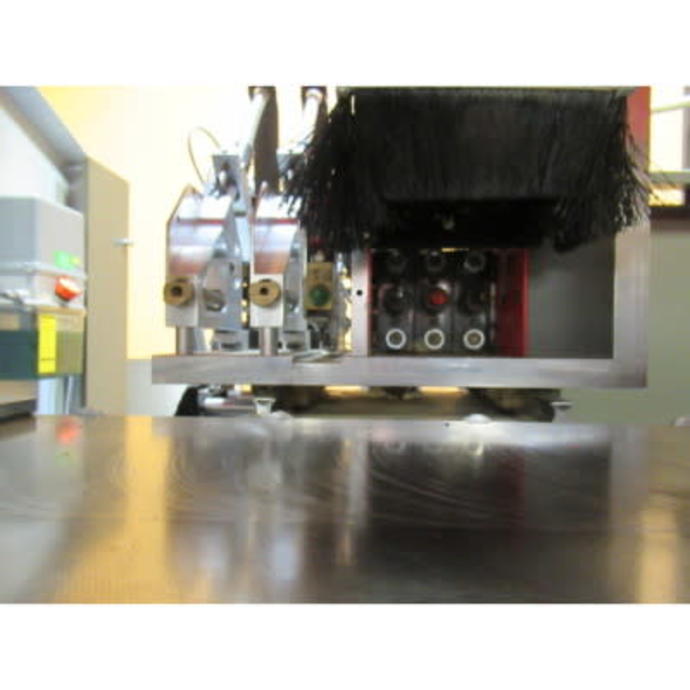

- Vertical top drilling unit, 1.5 kw motor, with multi spindle drill head
with 3 individually single selectable drilling spindles, pitch 32 mm in
X-axis
- Z-Axis NC-controlled, with ball screw drive and dynamic positioning,
travel speed max. 150 mm/sec

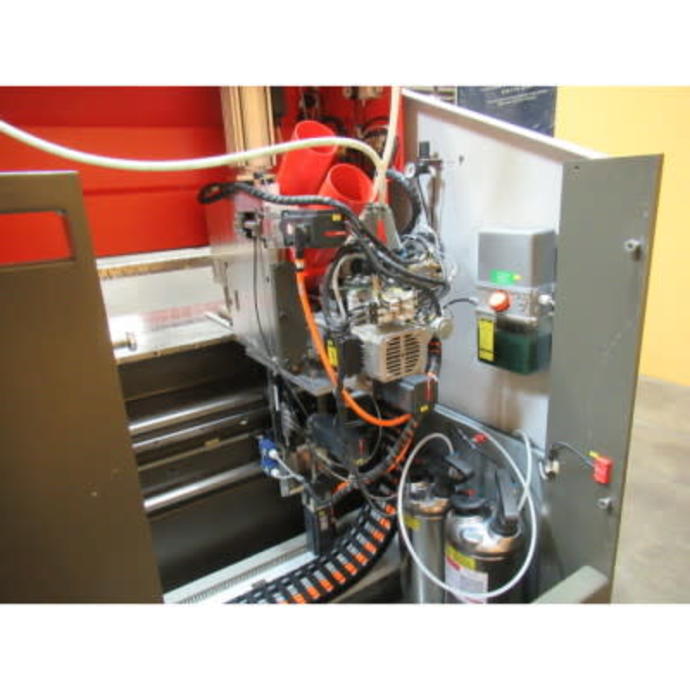

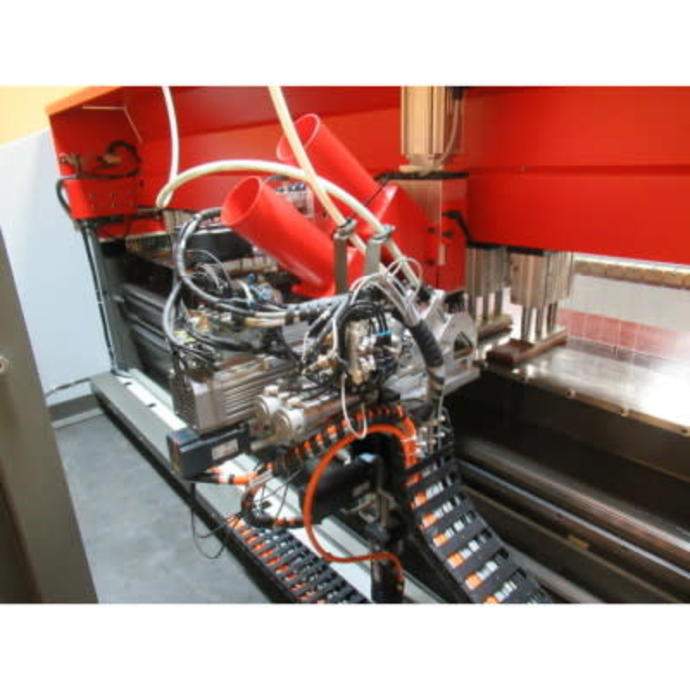

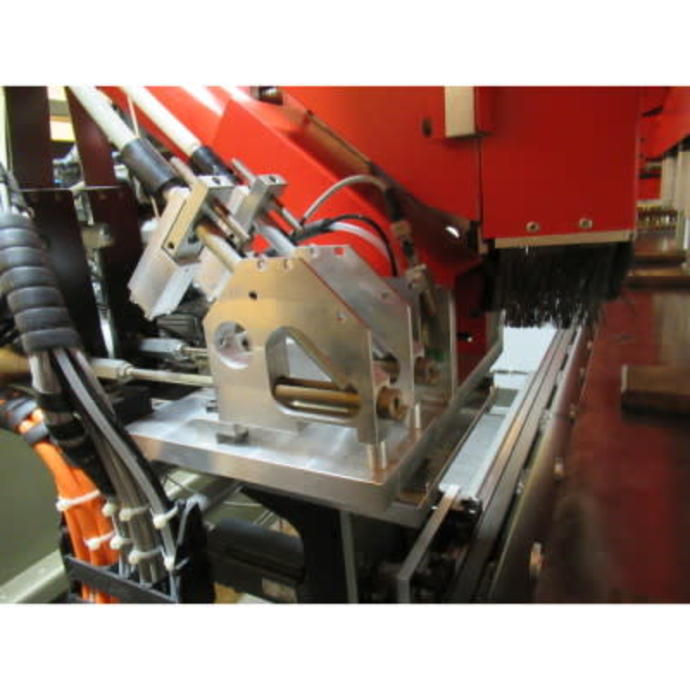

- 2 gluing and dowel inserting units (one for 6 mm, one for 8 mm)

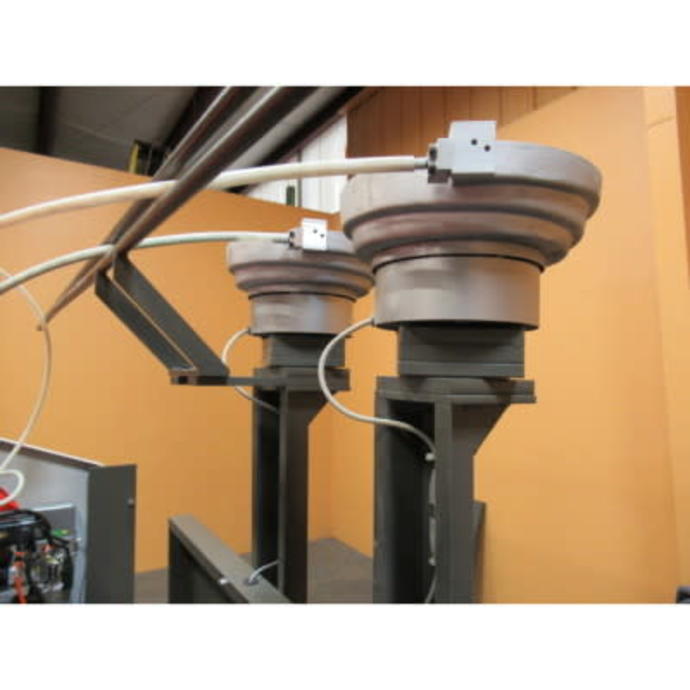

with separate hopper feeds
- Desired dowel diameter is programmable by controller
- Machine frame length 2300 mm with working width 2300 mm
remaining working width with 2nd gluing and dowel inserting unit is
2150 mm
- Y-Axis NC-controlled, with ball screw drive and dynamic positioning

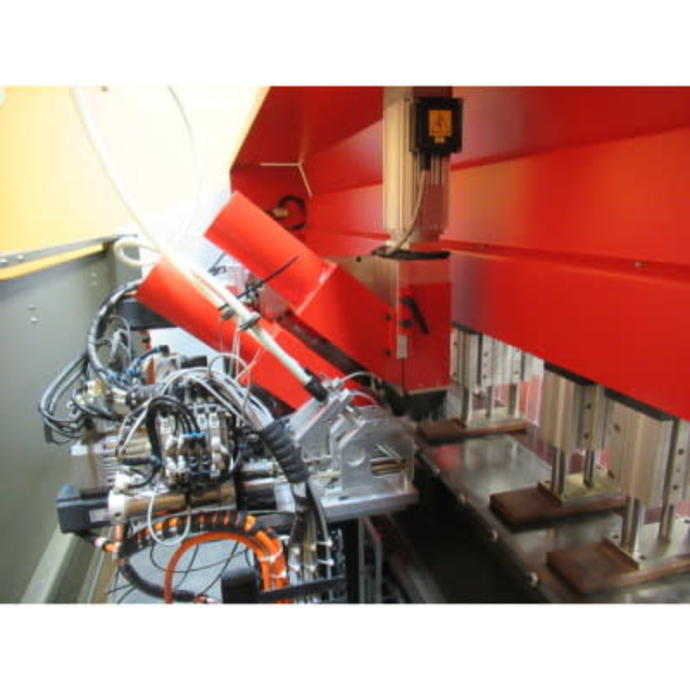

- Retractable close-range glue nozzle for 6 bar glue system, glue
nozzle mounted between drilling and inserting station.

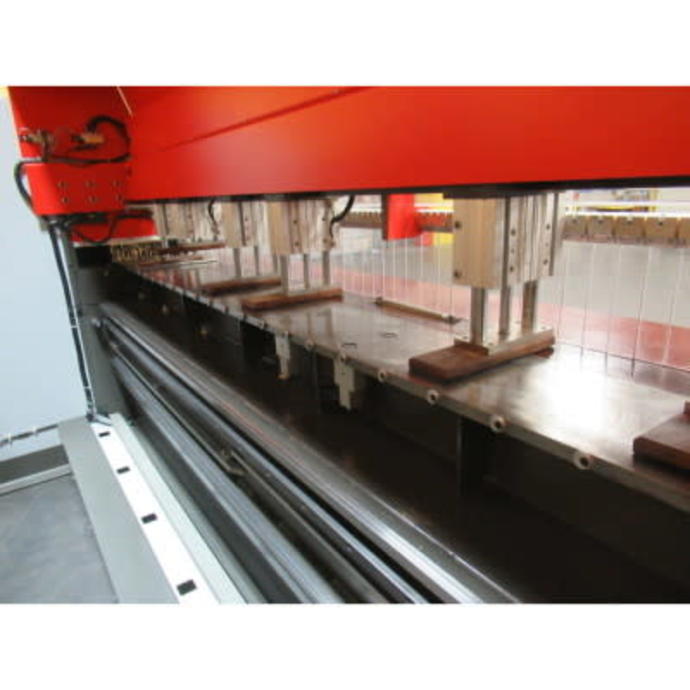

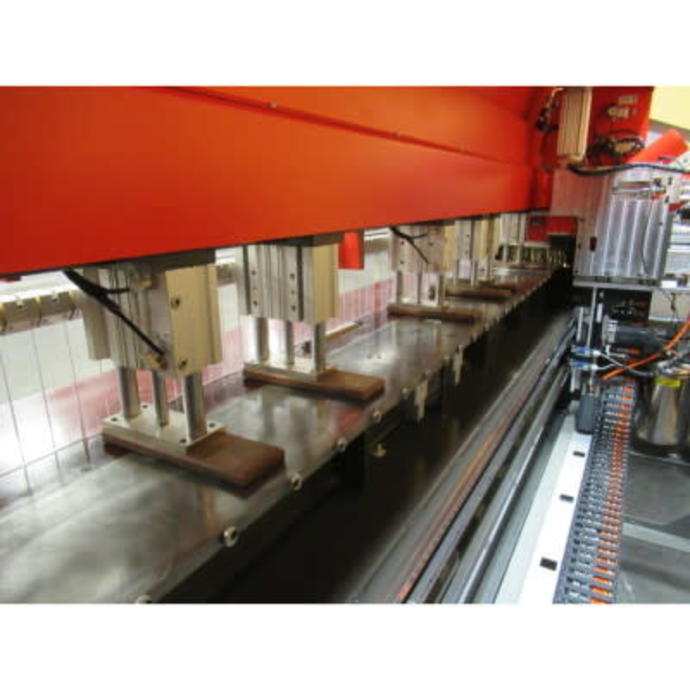

- 8 Clamping devices for small workpieces (clamping shoe)
workpiece length (Y) is min. 60 mm, for machines with top drilling
unit the maximum workpiece thickness (Z) will be reduced by 20
mm
- Safety package with 2-hand-start for 2-Field-Operation with vertical
top drilling unit and with clamping device for small workpieces
(clamping shoe)
- Pneumatic fence, consisting of 2 x 2 pneumatic cylinders (Ø 20 mm)
built in the machine table in Y-axis at position 37 and 189 mm.
These 4 pneumatic cylinders are moveable UP and DOWN through
selector switch.
- Barcode reader software license
- Software for network functionality of "index programming system"
and option code for enabling network function
- 4 starting buttons for individual working of 1-4 workpieces
- 3 selectable spindle speeds 3300 / 4950 / 6600 RPM, for Vertical and
horizontal drilling-unit

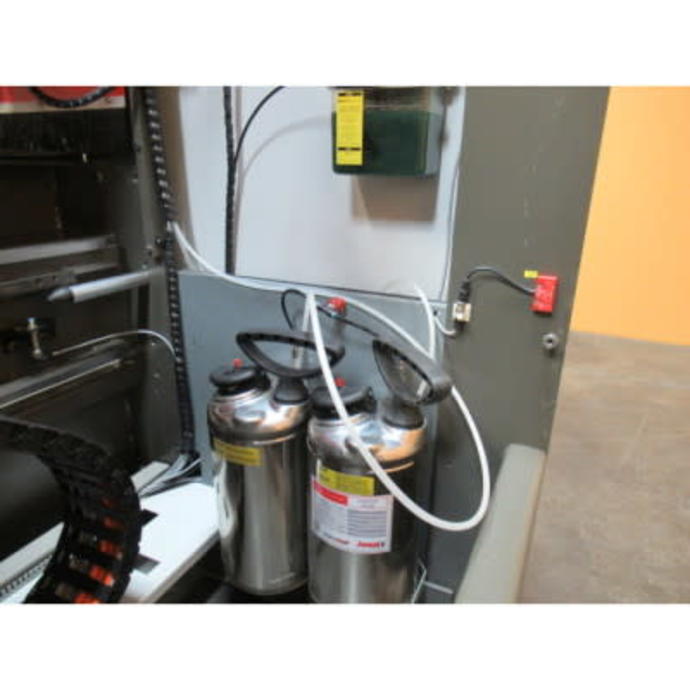

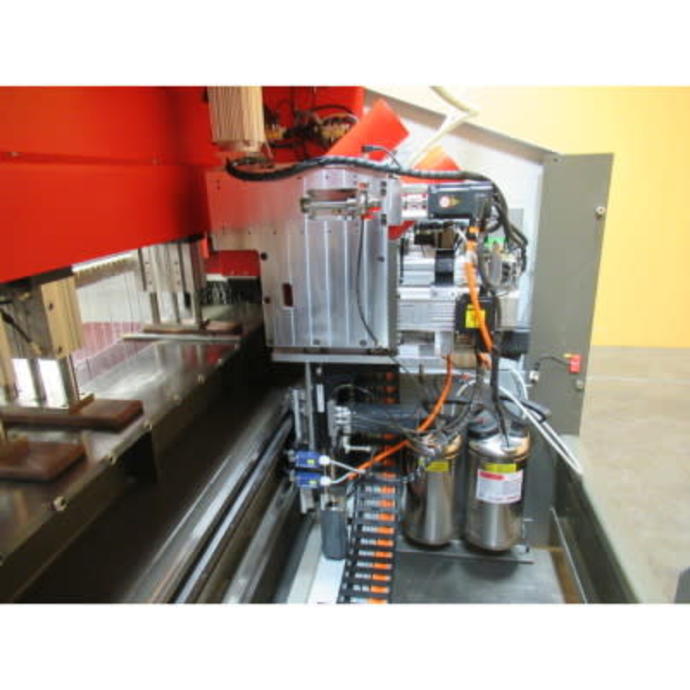

- 2 x stainless steel pots, 1.5 gallons each, for glue and water

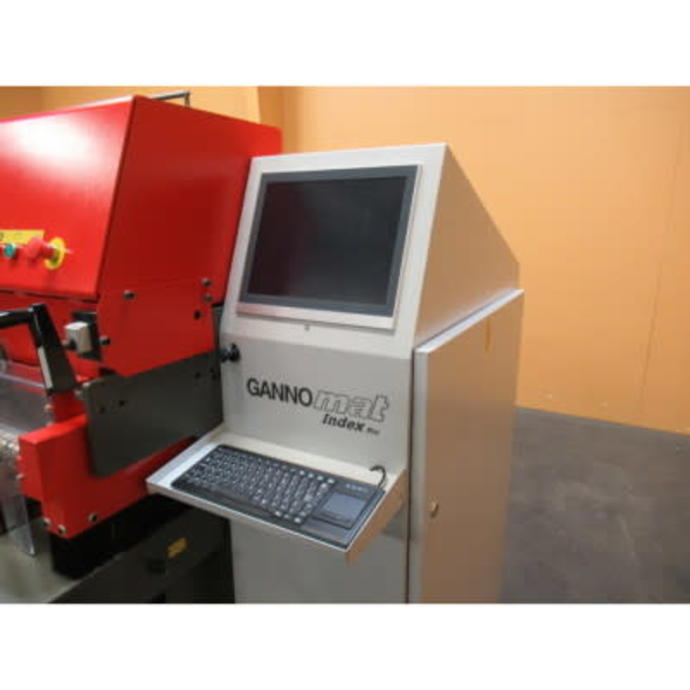

- Industrial PC, incl. Soft PLC type Beckhoff TWINCAT, TFT display 15”
touchscreen
- 5 kva transformer for 208, 230, 460, 480 volt operation
- Replacement cost: $ 149,000!!
- NOTE: ONLY 54 WORKING HOURS ON MACHINE!
