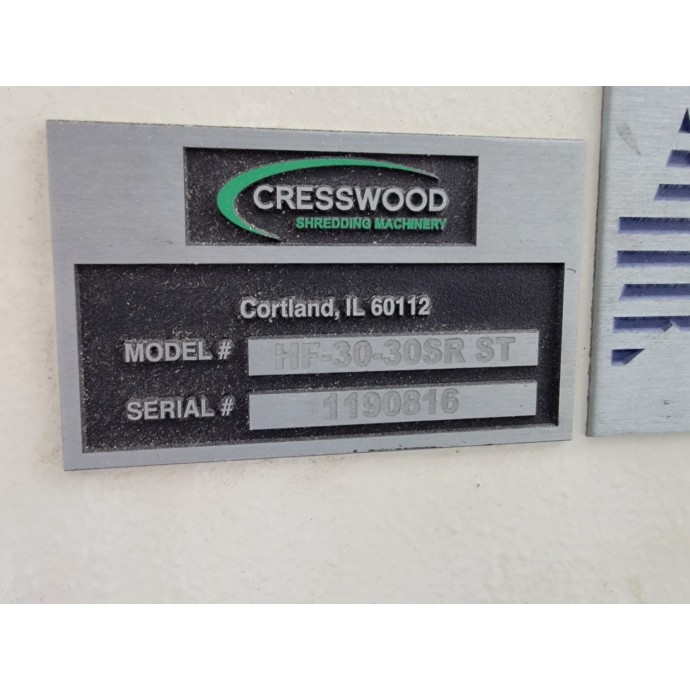

Serial Number: 1190816.
Year: 2016.
Type of wood: Screen Size: Output Goal: (lbs/hr) Mixed Green Hardwood 1” 700-900

Machine Specifications: Floor Area of unit: 66” X 89”.
Frame Thickness: 5/8” .
Net weight: 4800 lbs.
Cutterhead Geometry: Two row premium cupped 1” inserts (qty: 42).
Grinding head diameter: 10”.
Grinding head length: 30”.
Cutting Chamber: 30” x 39”.
Drive Package: 30 HP. 480V/60Hz/3Ph.
Grinding Head Speed: 50-150 RPM.
Double Row Spherical Roller Bearings.
Heavy Duty Gearbox.
Infeed: Mid-Range Hopper Volume (1.5 cu yd.).
Discharge: Air.
Ram Assembly: Machined metal floor. 26” ram stroke.
Machined ram.
Premium quality guides top and bottom.
Oversized cylinder. (rated for 3000 PSI, runs approx. 1200 PSI or less).
PLC controlled to prevent jamming.
Control Package : UL Listed.
Load sensor. PLC Controlled. Hour meter. Digital cutterhead amp meter. Auto reverse at startup (to prevent lockup). Screen Size : 1/2".
