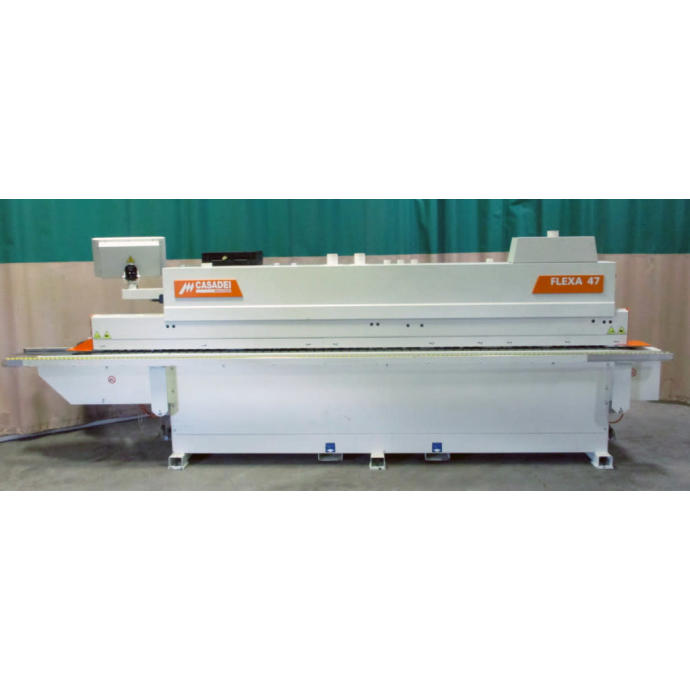

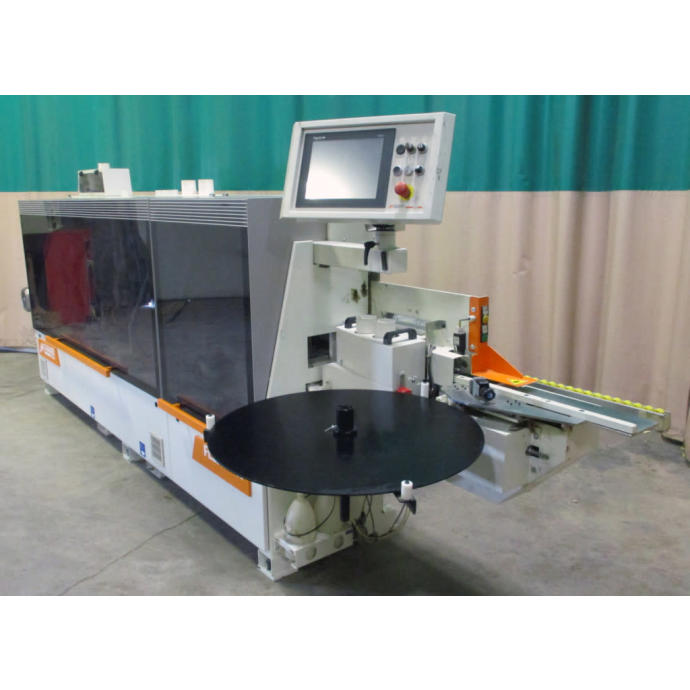

Used Casadei Flexa 47 RMA8 Edgebander.
TECHNICAL DATA:
Working height: 8 – 60 mm, 0.31- 2.36"
Working height corner rounding: 10 – 40 mm, .40 – 1.57”
Coil edge thickness: 0.4 – 3 mm, 0.02 – 0.11”
Strip edge thickness: 0.4 – 6 mm, 0.02 – 0.24”
Max overhang top and bottom (total top and bottom): 4 mm (2+2) 0.16”
Min panel width: 60 mm, 2.4”
Min panel length coil edge: 180 mm, 7.1”
Min panel length strip edge: 220 mm, 8.6”
Min distance between panels (panel spacing): 600 mm, 23.6”
Feed speed (2 feed speed @ 12 & 16 m/min): 12/ 16 mpm, 40 / 52 fpm

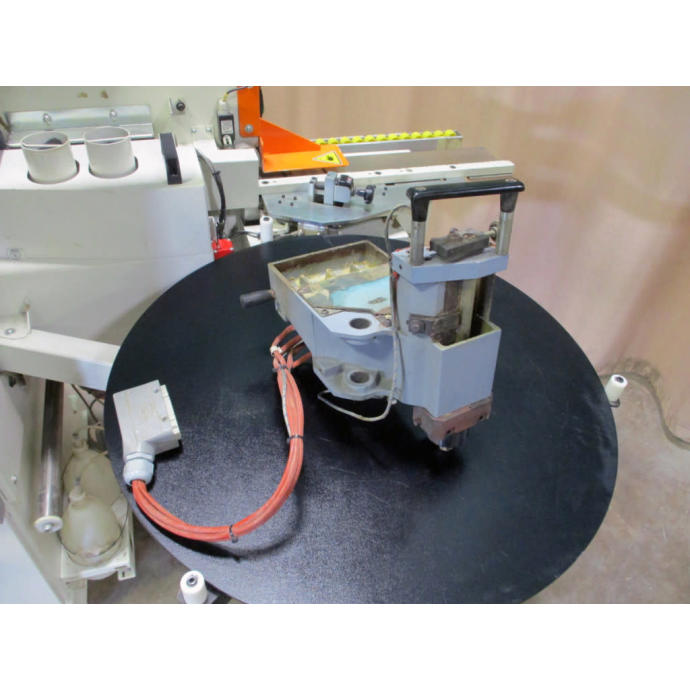

Glue Tank GP-500
Power: 4.8 kW
Glue capacity: 1.5 kg, 3.5 lbs

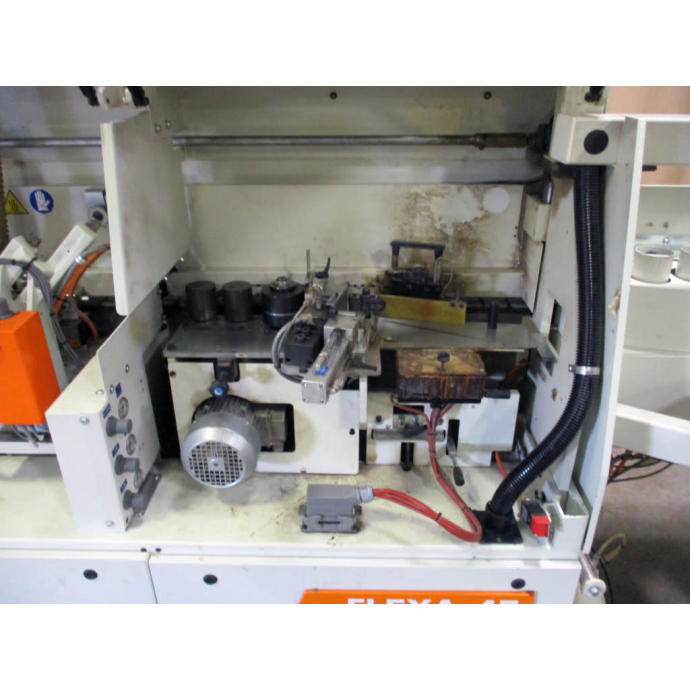

Premill Unit TR/K1
Removal (based on panel thickness): .4 – 3mm, 55mm²
Motor power: 2.0 Hp
Tool height/ diam.: 64/ 100mm, 2.5” /3.9”
Tool cutting speed: 9,000 rpm
End Trimming Unit IK/S (0-15 deg. inclination)
Motor size (each): .75 Hp
Cutting speed: 12,000 rpm
Top and Bottom trimming TT/K
Motor size (each): 0.9 Hp
Cutting speed: 12,000 rpm
Corner Round Unit RA/2
Motor size (each): 0.55 Hp
Cutting speed: 12,000 rpm
Operating speed (straight/ corner round): 12/ 16 m/min
Edge scraping Unit SCR/K
Knives with radius: 3mm
Min. panel thickness: 12mm
Glue scraping Unit SCR/K
Knives: 2 sided flat
Brushing Unit BF/K
Motor size (each): 0.3 Hp
Speed: 3,000 rpm
Voltage: 230V, 3 phase
Includes one extra glue pot.
2015 model year

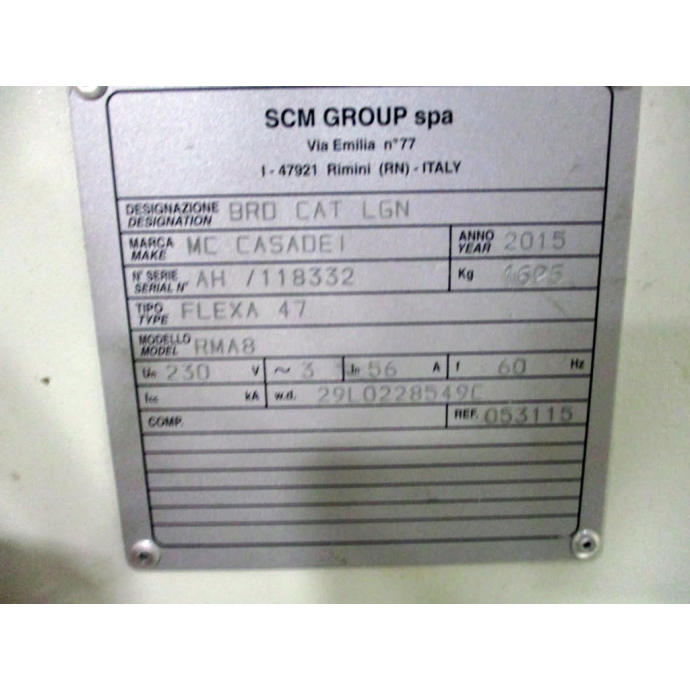

Ser#AH118332
