Product details
Part Number: | 14444 |
MPN: | 14444 |

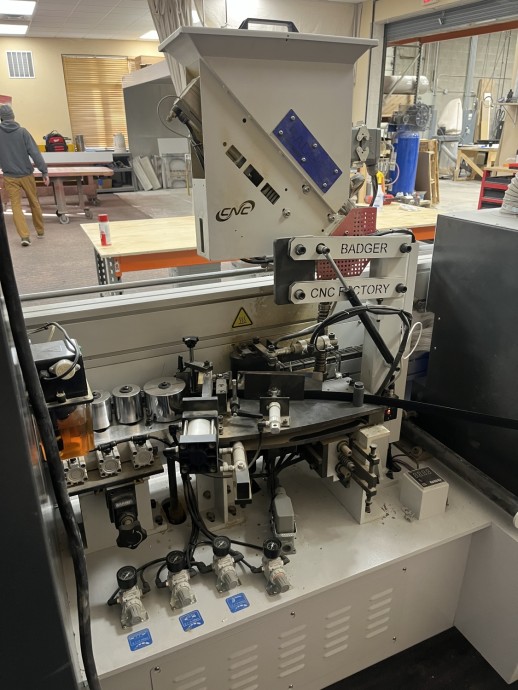

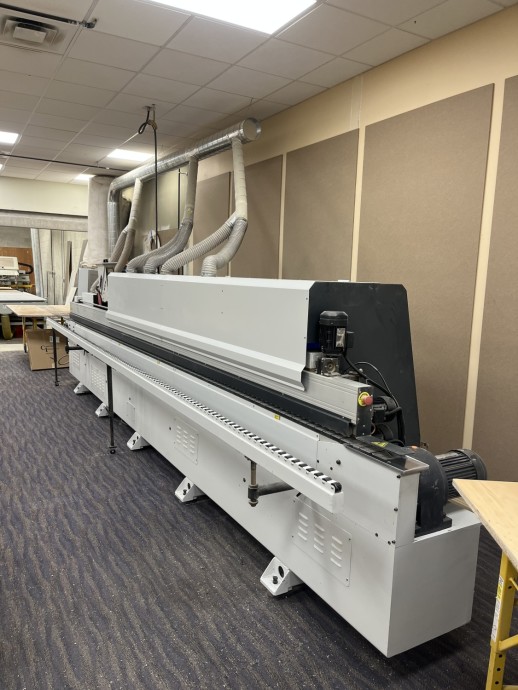

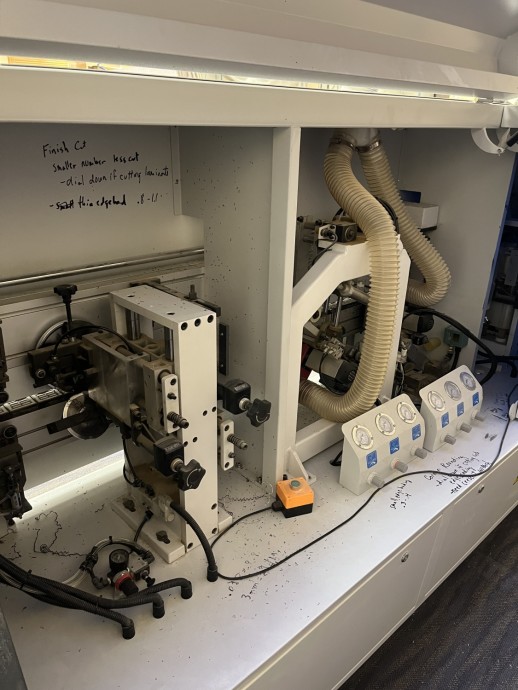

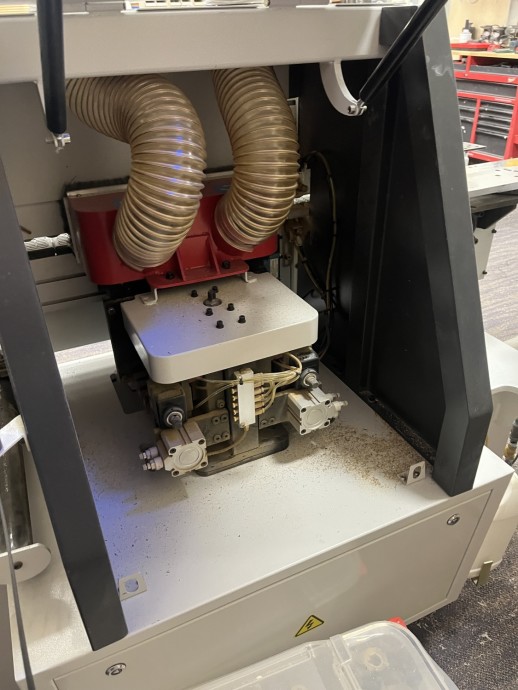

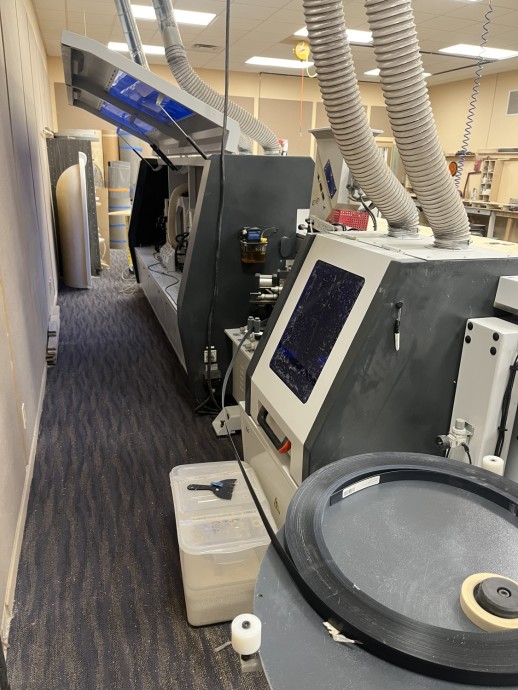

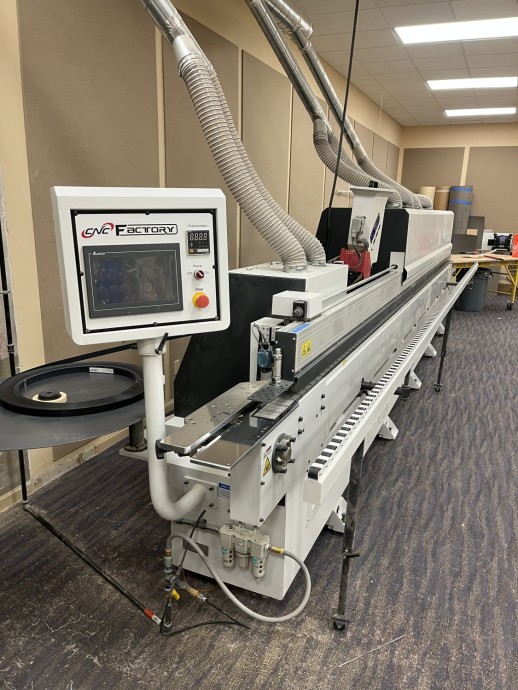

Used CNC Factory Badger 4600 Edgebander. Technical Specifications: Controller Digital front screen controls Feed System: Track feed 40 Ft/Min. with digital feed rate over-ride. Tape Thickness: 0.4mm to 3mm. Top/Bottom Fine Trim: Dual H.F. motors with 6 wing insert cutters. Front/End Trim: Dual independent H.F. Cutters. Pressure Rollers: 3 independent material pressure rollers with on board adjustments. Scraper: Top and bottom edge scrapping controllable at monitor. Buffing: Dual buffing motors with 6†buffing wheels controllable at monitor. Heating: Pellet glue 180 - 220 degrees. 2 Liter glue tank capacity. Panel Size: 3/8†min. to 1 15/16†Max Thickness. Min. Width: 3 ½†Min. Length 4.75â€. Port Size: 4â€. Air Pressure: 120 psi, 8 bar, 9cfm. Motor: 208-240 Volts, 3 phase 30amp. Outside Dimensions: 6001.5mm length x 1782.5mm width x 1584mm height
Specifications
Part Number 14444 Manufacturer's Part 14444
