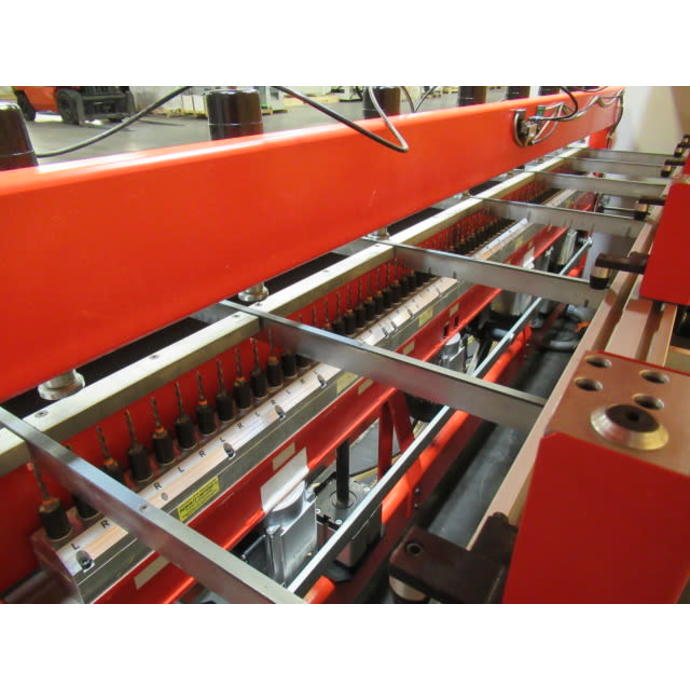

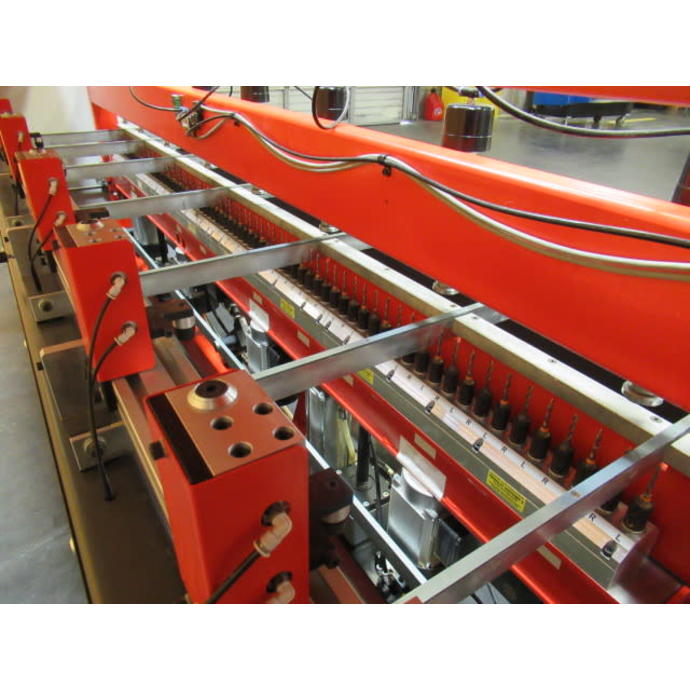

⦁One boring aggregate with 76 spindles, pitch 32
⦁The unit (aggregate) consists of four 19-spindle drill heads; each drill head is powered by a 1.5 KW motor. Up and down travel for each aggregate is by ​pneumatic/hydraulic feed
⦁Boring depth is 0 - 35mm with 70mm tooling installed
⦁Two-depth selection for blind boring and thru boring is programmable through the PLC
⦁38 drill bits, 5 x 70mm V-point, right hand
⦁38 drill bits, 5 x 70mm V-point, left hand

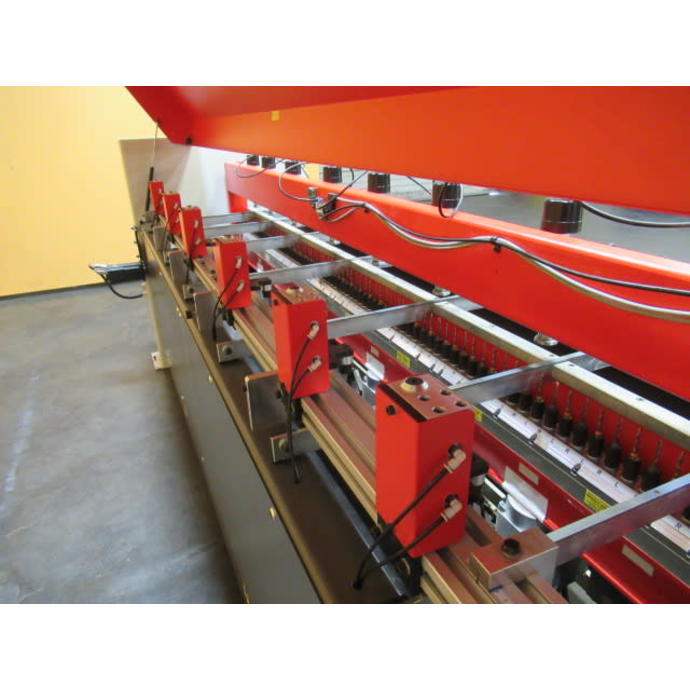

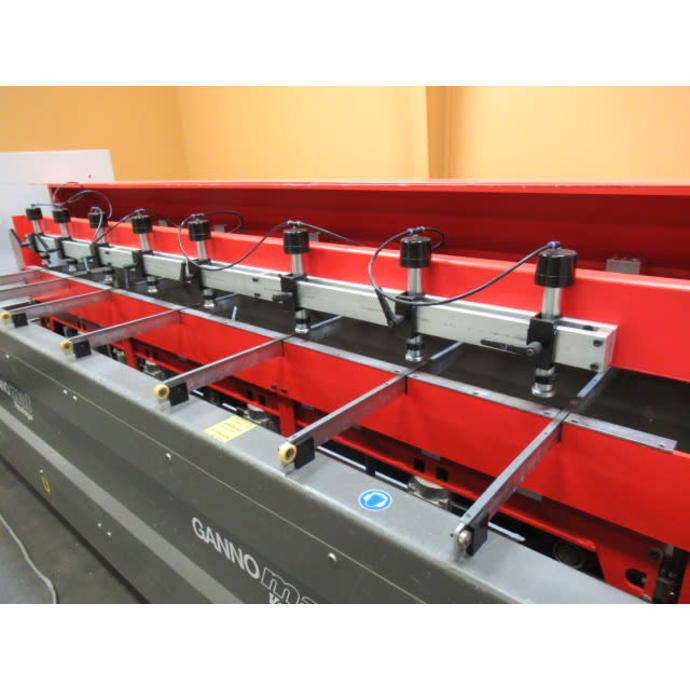

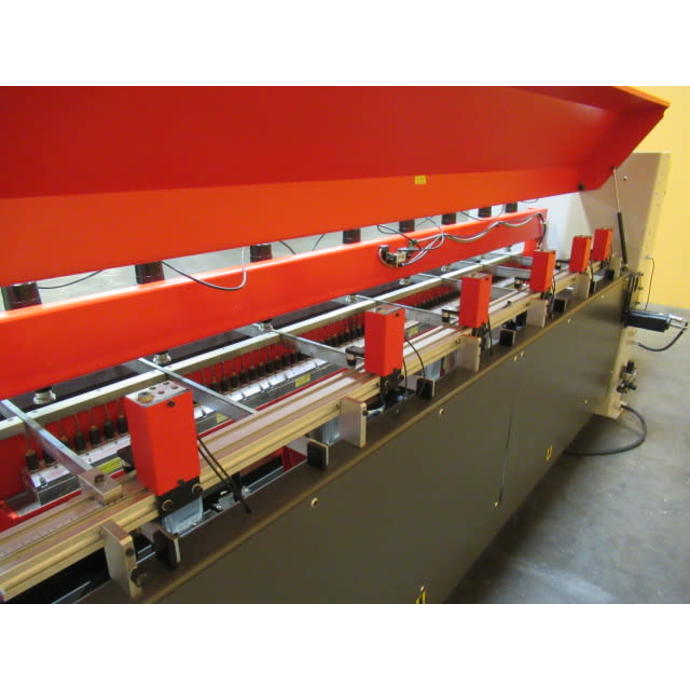

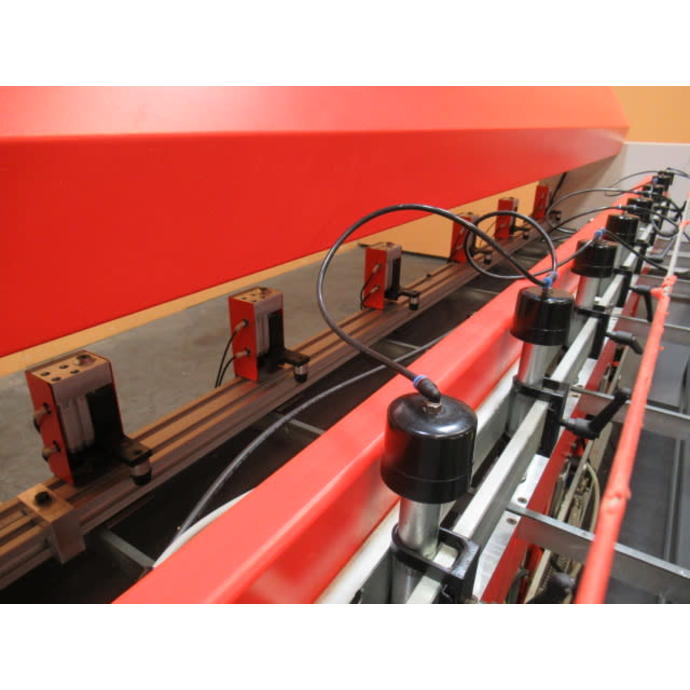

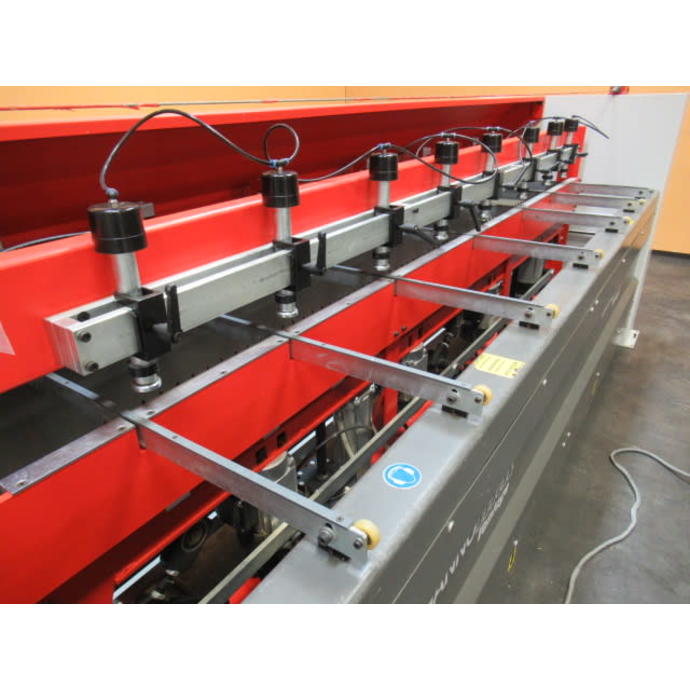

⦁There are eight hold-down clamps, for work pieces up to 40mm thick
⦁Y-axis travel for the drilling unit NC controlled from 20 - 580mm from the fixed backstop ruler
⦁Travel speed is 250mm per second
⦁The back fence has two end stops adjustable from 0 - 150mm

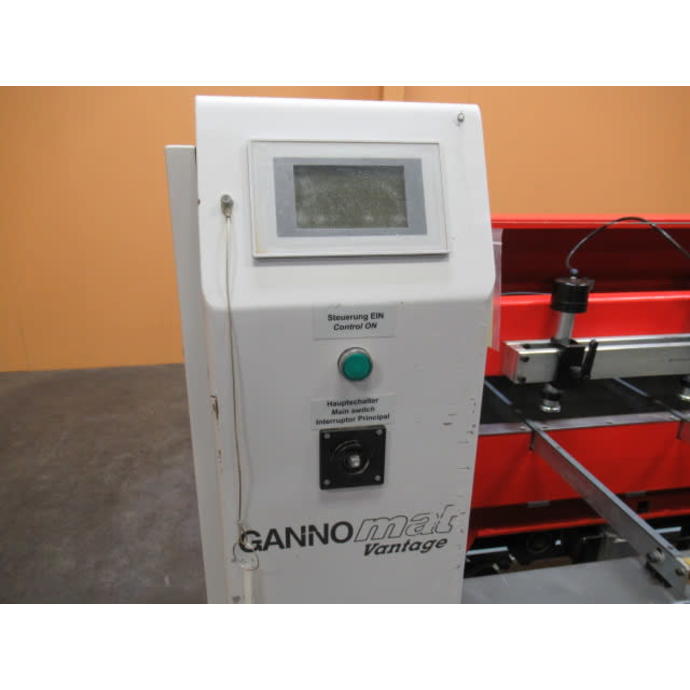

⦁Electronic control with LCD display for 99 programs with a maximum of 4 rows of holes per program
⦁Fully automatic electronic control with foot pedal initiation of the clamping/re-clamping, drilling cycle and safety control
⦁Dims: 142" L x 58" W x 60" T
⦁Machine weight: 3,100 lbs.
