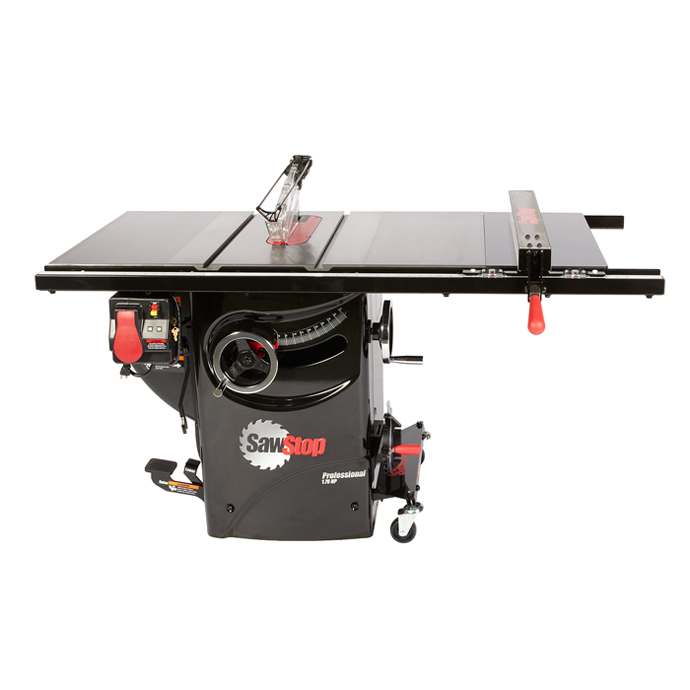

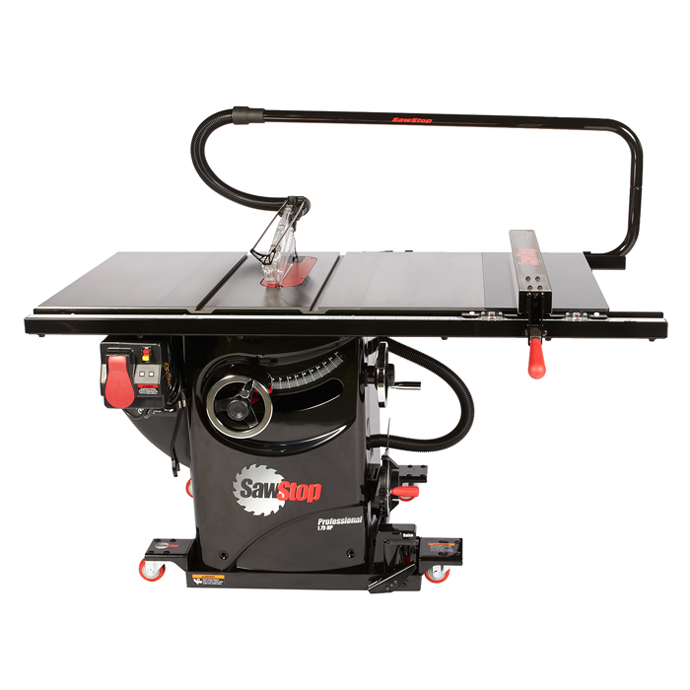

SawStop Professional Cabinet Saw, 3 HP, 230V, 30" Premium Fence

Product details

Manufacturer:	SawStop
Part Number:	PCS31230-PFA30
MPN:	PCS31230-PFA30

The SawStop 30" Premium Fence Table Saw PCS31230-PFA30 – a top-selling professional cabinet saw renowned for its unmatched fit, finish, and best-in-class cutting performance. Designed for precision and efficiency, this 3HP model delivers exceptional results on every cut. With a premium 30" fence system and a meticulously engineered assembly, it offers smooth operation, reliable accuracy, and advanced safety features, it embodies SawStop’s commitment to innovation, safety, and superior craftsmanship.

Key Features & Benefits
Precision Cutting with the 30" Premium Fence System
• The 30" Premium Fence System ensures smooth operation and precise measurement for accurate cuts.
• It locks down securely without deflection, maintaining consistent accuracy over time.
• This feature enables repeatable, high-quality results that boost productivity on every jobsite.

Unmatched Build Quality and Superior Finish
• Engineered with exceptional fit and finish, this cabinet saw is built to the highest standards.
• Premium materials and attention to detail ensure long-lasting durability and reliable performance.
• Its refined construction makes it the preferred choice for professionals seeking top-tier quality.

Advanced Safety Features for Maximum Protection
• Incorporates SawStop’s patented safety system, which stops the blade in under 5 milliseconds upon skin contact.
• The safety mechanism quickly drops the blade below the table to reduce injury risks significantly.
• These safety features provide peace of mind and create a secure work environment.

Reliable Assembly and User-Friendly Operation
• Powered by a robust 3HP motor and equipped with rails and an extension table for versatile functionality.
• The intuitive design simplifies setup and ensures smooth operation throughout the workday.
• Built for demanding environments, it delivers consistent, professional-grade performance every time.

Specifications

Manufacturer SawStop
Part Number PCS31230-PFA30
Manufacturer's Part PCS31230-PFA30
Handling Fee $425.00
Weight 515.000 lbs
UPC/EAN Code PCS31230-PFA30
Table Size 20" x 27"
Extension Table 30" 12" W x 27" D
Dust Port 4"
Max. Depth of Cut at 90° 3-1/8"
Arbor Diameter 5/8"
Arbor Runout 0.001"
Blade 40 Teeth, '5/8" Arbor
Blade Kerf 0.118"
Blade Plate Thickness 0.078"
Blade Tilt Left
Dado Diameter 8"
Extension Wings 12" x 27"
HP 3
Main Bearing Size 62mm OD x 30mm ID
Max. Depth of Cut at 45° 2-1/4"
Max. Rip To Left Of Blade 12"
Max. Rip To Right Of Blade 30"
Saw Blade Diameter 10"
Saw Body Footprint 19-3/8" W x 19-3/8" D (Cabinet)
Second Bearing Size 52mm OD x 25mm ID
Upc/Ean Code PCS31230-PFA30

Related Items

SawStop Professional Cabinet Saw, 3 HP, 230V, 52" T-Glide Fence

PCS31230-TGP252

IN STOCK

$3,987.00

SawStop Professional Cabinet Saw, 3 HP, 230V, 36" T-Glide Fence

PCS31230-TGP236

IN STOCK

$3,881.00

SawStop Sliding Crosscut Table

TSA-SA48

IN STOCK

$1,485.00

Sawstop TSA-FOT Folding Outfeed Table

TSA-FOT

IN STOCK

$475.00

Mobile Base for SawStop Professional Cabinet Saw

MB-PCS-000

IN STOCK

$375.00

SawStop Overarm Dust Collection TSA-ODC

TSA-ODC

IN STOCK

$319.00

SawStop TSG-FDC Floating Overarm Dust Collection Guard

TSG-FDC

IN STOCK

$615.00

SawStop TSA-SA70 Large Sliding Table

TSA-SA70

IN STOCK

$1,845.00

SawStop MB-PCS-IND Industrial Saw Mobile Base w/PCS Mobile base conversion kit

MB-PCS-IND

IN STOCK

$499.00

Sawstop Titanium Series Saw Blade, 10", 80 Teeth, BTS-P-80HATB

BTS-P-80HATB

IN STOCK

$129.00

SawStop Titanium Series Combination Saw Blade, 10", 40 Teeth

BTS-R-40ATB

IN STOCK

$95.00

Sawstop 10" Professional Saw Blade, Sixty Tooth

CB104 184

IN STOCK

$65.00

Sawstop 10" Professional Saw Blade, 40-Tooth

CNS-07-148

IN STOCK

$55.00

SawStop Ripping Table Saw Blade, 24 Teeth

BTS-R-24ATB

IN STOCK

$45.00

SawStop Standard Brake Cartridge TSBC-10R3 for 10" Blades

TSBC-10R3

IN STOCK

$99.00

SawStop TSDC-8R3 8 Inch Dado Brake Cartridge for ICS, PCS, and CNS Saws

TSDC-8R3

IN STOCK

$119.00

SawStop Zero-Clearance Insert for 8" Dado Sets

TSI-DLD

IN STOCK

$75.00

SawStop Zero-Clearance Insert for 10" Blades

TSI-SLD

IN STOCK

$75.00

Related Categories

Saw Blades Dado Sets Shop Supplies Power Feeders

Questions and Answers

Please Sign In to post questions.

Type your question below and we'll check if it is already answered.Learn more...

How to Use This Tool

Type in your question. If we find a matching question in our database, we'll show it immediately.
If there are no results found, please post a new question here. Answers will come from other customers and from our product experts.

For order questions, please contact customer service directly at 866-326-8131 or via our contact form

Have a question about our products?

10 Question(s) Found:

What kind of 10" blades can I use for the cast iron saws?

Web Tips W. on 12/06/2024 03:42 PM

BEST ANSWER: Any 10” standard-tooth steel blade with steel or carbide teeth can be used. Do not use blades with tooth “shoulders” (often called depth-limiting or anti-kickback shoulders), as these blades will take longer to stop in the event of an accident. Do not use blades with non-conductive hubs or teeth, as the safety system will not allow the saw to operate with these blades installed.

Inaccurate
Web Tips W. on 12/06/2024 03:44 PM

I Have This Question Too (0)

Any 10” standard-tooth steel blade with steel or carbide teeth can be used. Do not use blades with tooth “shoulders” (often called depth-limiting or anti-kickback shoulders), as these blades will take longer to stop in the event of an accident. Do not use blades with non-conductive hubs or teeth, as the safety system will not allow the saw to operate with these blades installed.

Vote
Inaccurate
Web Tips W. on 12/06/2024 03:44 PM

Can I use an 8" Dado stack?

Web Tips W. on 12/06/2024 03:42 PM

BEST ANSWER: Any 8” standard-tooth steel stacked dado set (max width: 29/32”) with steel or carbide teeth can be used. A zero-clearance insert for your dado set must be purchased along with the required Dado Cartridge. Do not use dado sets with solid-plate interior chippers, blades with molding heads, or “wobble” dado sets as the brake cartridge is not designed to stop those blade types. Also do not use blades with tooth “shoulders” (often called depth-limiting or anti-kickback shoulders), as these blades will take longer to stop in the event of an accident. Additionally, we recommend only using dado sets wherein the interior chippers have between two and four teeth per chipper to limit the impact on the saw during an activation. SawStop manufacturers an 8” Premium Dado Set (BTS-DS8-2402) that can be used on all SawStop saws except the Compact Table Saw.

Inaccurate
Web Tips W. on 12/06/2024 03:44 PM

I Have This Question Too (0)

Any 8” standard-tooth steel stacked dado set (max width: 29/32”) with steel or carbide teeth can be used. A zero-clearance insert for your dado set must be purchased along with the required Dado Cartridge. Do not use dado sets with solid-plate interior chippers, blades with molding heads, or “wobble” dado sets as the brake cartridge is not designed to stop those blade types. Also do not use blades with tooth “shoulders” (often called depth-limiting or anti-kickback shoulders), as these blades will take longer to stop in the event of an accident. Additionally, we recommend only using dado sets wherein the interior chippers have between two and four teeth per chipper to limit the impact on the saw during an activation. SawStop manufacturers an 8” Premium Dado Set (BTS-DS8-2402) that can be used on all SawStop saws except the Compact Table Saw.

Vote
Inaccurate
Web Tips W. on 12/06/2024 03:44 PM

Can I use thin and thick kerf 10" blades with a SawStop saw?

Web Tips W. on 12/06/2024 03:42 PM

BEST ANSWER: The SawStop safety system is designed for use with standard 10” blades with kerfs from 3/32” to 3/16”. Blades with kerfs much thinner than 3/32” should not be used because those blades might not be strong enough to withstand the force applied by the brake when it activates. As a result, those blades might deform and stop more slowly in the event of an accident, resulting in a more serious injury. Blades with kerfs much thicker than 3/16” are heavier than standard 1/8” kerf blades. Therefore, those blades should not be used because they may stop more slowly than standard blades in the event of an accident, resulting in a more serious injury. Similarly, stacks of 2 or more 10” blades should never be used on your SawStop saw as the combined weight of the blades may be too heavy to stop quickly. If you need to use a blade with a kerf thicker than 3/16”, use an 8” dado set with the optional SawStop 8” dado cartridge. The dado cartridge is designed for use with 8” dado sets up to 29/32” wide

Inaccurate
Web Tips W. on 12/06/2024 03:44 PM

I Have This Question Too (0)

The SawStop safety system is designed for use with standard 10” blades with kerfs from 3/32” to 3/16”. Blades with kerfs much thinner than 3/32” should not be used because those blades might not be strong enough to withstand the force applied by the brake when it activates. As a result, those blades might deform and stop more slowly in the event of an accident, resulting in a more serious injury. Blades with kerfs much thicker than 3/16” are heavier than standard 1/8” kerf blades. Therefore, those blades should not be used because they may stop more slowly than standard blades in the event of an accident, resulting in a more serious injury. Similarly, stacks of 2 or more 10” blades should never be used on your SawStop saw as the combined weight of the blades may be too heavy to stop quickly. If you need to use a blade with a kerf thicker than 3/16”, use an 8” dado set with the optional SawStop 8” dado cartridge. The dado cartridge is designed for use with 8” dado sets up to 29/32” wide

Vote
Inaccurate
Web Tips W. on 12/06/2024 03:44 PM

How can I be certain the safety system is working?

Web Tips W. on 12/06/2024 03:43 PM

BEST ANSWER: The SawStop safety system continuously performs many self-checks to ensure the components of the safety system are working properly. The safety system will not allow the motor to start (or to remain running) unless every component of the safety system is working properly.

Inaccurate
Web Tips W. on 12/06/2024 03:44 PM

I Have This Question Too (0)

The SawStop safety system continuously performs many self-checks to ensure the components of the safety system are working properly. The safety system will not allow the motor to start (or to remain running) unless every component of the safety system is working properly.

Vote
Inaccurate
Web Tips W. on 12/06/2024 03:44 PM

Can I get a serious injury using a SawStop saw?

Web Tips W. on 12/06/2024 03:43 PM

BEST ANSWER: In the vast majority of cases, coming in contact with the spinning blade will result in a minor cut. However, if your hand moves into the blade at very high speed, it is possible for you to receive a serious injury.

Inaccurate
Web Tips W. on 12/06/2024 03:44 PM

I Have This Question Too (0)

In the vast majority of cases, coming in contact with the spinning blade will result in a minor cut. However, if your hand moves into the blade at very high speed, it is possible for you to receive a serious injury.

Vote
Inaccurate
Web Tips W. on 12/06/2024 03:44 PM

What happens if the blade comes in contact with a nail or staple in the wood?

Web Tips W. on 12/06/2024 03:43 PM

BEST ANSWER: Generally, the safety system will not activate when a nail or staple is cut. Although conductive, these objects are not large enough to cause the safety system to activate unless they are grounded to the table or operator when they contact the blade.

Inaccurate
Web Tips W. on 12/06/2024 03:44 PM

I Have This Question Too (0)

Generally, the safety system will not activate when a nail or staple is cut. Although conductive, these objects are not large enough to cause the safety system to activate unless they are grounded to the table or operator when they contact the blade.

Vote
Inaccurate
Web Tips W. on 12/06/2024 03:44 PM

Can I use Gloves while operating a SawStop?

Web Tips W. on 12/06/2024 03:43 PM

BEST ANSWER: The SawStop safety system will protect you even if you are wearing gloves. In that case, the system will trigger when the blade cuts through the glove and touches your skin. It is possible that the blade could snag on the glove and pull your hand into the blade, resulting in a slightly deeper cut. That is why SawStop recommends not wearing gloves when using a SawStop saw. However, if you decide to wear gloves, you are still protected.

Inaccurate
Web Tips W. on 12/06/2024 03:44 PM

I Have This Question Too (0)

The SawStop safety system will protect you even if you are wearing gloves. In that case, the system will trigger when the blade cuts through the glove and touches your skin. It is possible that the blade could snag on the glove and pull your hand into the blade, resulting in a slightly deeper cut. That is why SawStop recommends not wearing gloves when using a SawStop saw. However, if you decide to wear gloves, you are still protected.

Vote
Inaccurate
Web Tips W. on 12/06/2024 03:44 PM

Will moisture activate the brake?

Web Tips W. on 12/06/2024 03:43 PM

BEST ANSWER: SawStop saws cut most wet wood without a problem. However, if the wood is very green or wet (for example, wet enough to spray a mist when cutting), or if the wood is both wet and pressure treated, then the wood may be sufficiently conductive to activate the brake. If you are unsure if the material you need to cut is conductive, you can make test cuts using Bypass Mode to determine if it will activate the safety system’s brake. The red light on the control box will flash to indicate conductivity.

Inaccurate
Web Tips W. on 12/06/2024 03:45 PM

I Have This Question Too (0)

SawStop saws cut most wet wood without a problem. However, if the wood is very green or wet (for example, wet enough to spray a mist when cutting), or if the wood is both wet and pressure treated, then the wood may be sufficiently conductive to activate the brake. If you are unsure if the material you need to cut is conductive, you can make test cuts using Bypass Mode to determine if it will activate the safety system’s brake. The red light on the control box will flash to indicate conductivity.

Vote
Inaccurate
Web Tips W. on 12/06/2024 03:45 PM

Does cold affect SawStop saws?

Web Tips W. on 12/06/2024 03:43 PM

BEST ANSWER: Cold ambient temperatures should not affect your saw mechanics. However, your saw’s brake cartridge contains “computer-like” parts that can be affected by extreme cold. If the cartridge is stored in temperatures well below freezing, the saw won’t turn on until the cartridge warms up. If you are in an extremely cold climate, we recommend removing the cartridge (which you can do with the blade in place) and storing it above freezing. Alternatively, some customers choose to leave the yellow “hard” power switch on all the time. This provides just enough heat to the cartridge to help ensure startup in spite of extreme ambient cold.

Inaccurate
Web Tips W. on 12/06/2024 03:45 PM

I Have This Question Too (0)

Cold ambient temperatures should not affect your saw mechanics. However, your saw’s brake cartridge contains “computer-like” parts that can be affected by extreme cold. If the cartridge is stored in temperatures well below freezing, the saw won’t turn on until the cartridge warms up. If you are in an extremely cold climate, we recommend removing the cartridge (which you can do with the blade in place) and storing it above freezing. Alternatively, some customers choose to leave the yellow “hard” power switch on all the time. This provides just enough heat to the cartridge to help ensure startup in spite of extreme ambient cold.

Vote
Inaccurate
Web Tips W. on 12/06/2024 03:45 PM

Do the saws come equipped with a magnetic switch?

Web Tips W. on 12/06/2024 03:43 PM

BEST ANSWER: Our saws have a magnetic switch that prevents it from coming back on.

Inaccurate
Web Tips W. on 12/06/2024 03:45 PM

I Have This Question Too (0)

Our saws have a magnetic switch that prevents it from coming back on.
