Product details
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Manufacturer: | SCM |
Part Number: | Nova TF 110 |
MPN: | NOVA TF 110 |

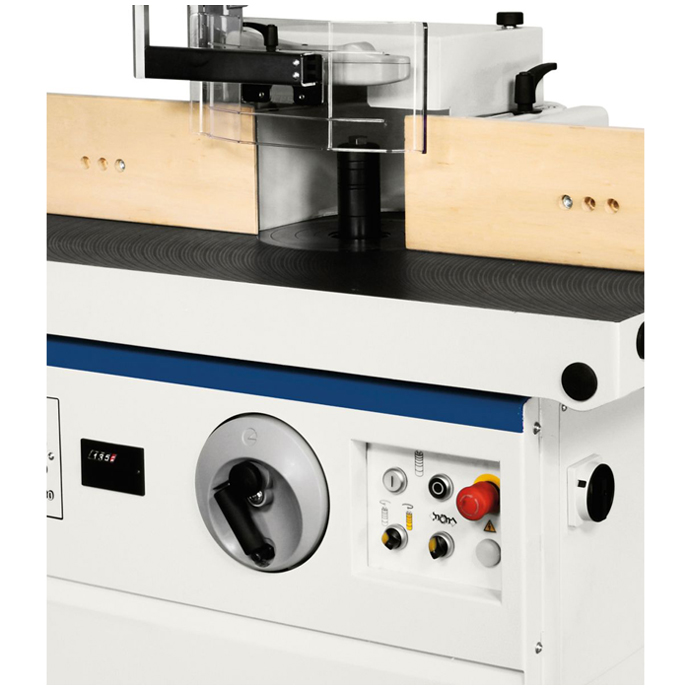

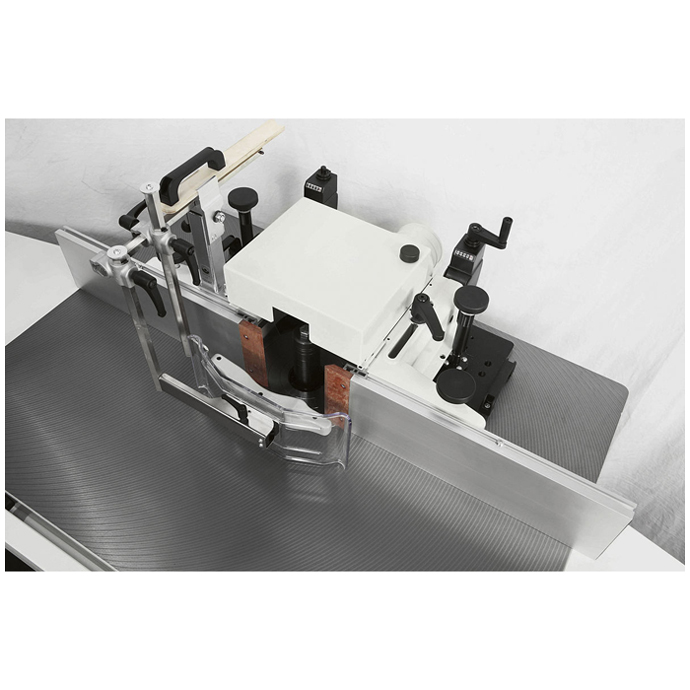

The SCM Nova TF 110 Shaper excels in performance, accuracy, and versatility. Its 10 HP motor and 5-speed control provide the precision required for intricate moulding and tenoning. An easy-to-use hand wheel with mechanical decimal readouts ensures quick and accurate adjustments. Built with cast iron construction, it guarantees long-term durability. Whether shaping profiles or handling small tenoning jobs, the TF 110 delivers professional-grade results.
Key Features & Benefits
Precision Control for Accurate Results
• Mechanical decimal readouts ensure accurate, repeatable adjustments
• Handwheel-controlled settings make fine-tuning simple and user-friendly
• Cast iron cup encloses internal mechanisms for extra protection and reliability
High-Performance Spindle for Versatile Machining
• Five standard speeds accommodate a range of shaping operations, from moulding to tenoning
• Fixed spindle configuration provides excellent rigidity for cleaner cuts
• Optional interchangeable spindle allows for router bit use and custom setups
Flexible Upgrades to Match Your Workflow
• Choose the “LL" version for extended cast iron profiling tables
• Add mechanical programming fences for repeatable, complex profiles
• “TL" version includes table carriage for small tenoning jobs
Durability and Operator Comfort Built In
• Cast-iron structure resists vibration and enhances cut quality
• Optional aluminum tables offer enhanced wear resistance over wood
• Intuitive layout keeps controls and readings accessible from the front panel
Key Features & Benefits
Precision Control for Accurate Results
• Mechanical decimal readouts ensure accurate, repeatable adjustments
• Handwheel-controlled settings make fine-tuning simple and user-friendly
• Cast iron cup encloses internal mechanisms for extra protection and reliability
High-Performance Spindle for Versatile Machining
• Five standard speeds accommodate a range of shaping operations, from moulding to tenoning
• Fixed spindle configuration provides excellent rigidity for cleaner cuts
• Optional interchangeable spindle allows for router bit use and custom setups
Flexible Upgrades to Match Your Workflow
• Choose the “LL" version for extended cast iron profiling tables
• Add mechanical programming fences for repeatable, complex profiles
• “TL" version includes table carriage for small tenoning jobs
Durability and Operator Comfort Built In
• Cast-iron structure resists vibration and enhances cut quality
• Optional aluminum tables offer enhanced wear resistance over wood
• Intuitive layout keeps controls and readings accessible from the front panel
Specifications
Manufacturer SCM Part Number Nova TF 110 Manufacturer's Part NOVA TF 110 Weight 1,400.000 lbs Max. Diameter Of The Profiling Tool 9.8" (250 mm) Max. Diameter Of The Tenoning Tool With Spindle Diameter 40"-50" 11.8" (300 mm) Max. Useful Spindle Length 5.5" (140 mm) Spindle 3000/4500/6000/7000/10000 RPM Unit Type Fixed Spindle
