How much floor space does the CX 110 require, and is it suitable for smaller shops?
Chris G. on 11/18/2025 04:19 PM
BEST ANSWER: The Morbidelli CX 110 occupies less than 10 square meters (approximately 100 square feet) of floor space, making it one of the most space-efficient CNC drilling centers on the market. Despite its compact footprint, it delivers industrial-grade performance and can process up to 400 panels per shift. This makes it an excellent choice for growing shops that need automation without sacrificing valuable production space.
- Inaccurate
- Store Admin on 11/18/2025 04:20 PM
I Have This Question Too (What makes the CX 110 different from other CNC routers in terms of precision and reliability?
Chris G. on 11/18/2025 04:19 PM
BEST ANSWER: The CX 110 features several advanced technologies that ensure exceptional precision:
• Top-side drilling reference - By drilling from the top of the panel, any thickness variations are hidden on the finished product
• Brushless motors with prismatic linear guides and recirculating ball bearings for smooth, accurate movement
• Upper presser unit that ensures workpieces adhere to the lower reference for maximum machining precision
• Automatic length measurement for creating perfect joints without manual setup
• 3D PROBE system for X, Y, Z dimensional control
• Ro.Ax high-rigidity drilling heads for repeatable accuracy
- Inaccurate
- Store Admin on 11/18/2025 04:21 PM
What is the maximum panel size the CX 110 can handle?
Chris G. on 11/18/2025 04:19 PM
BEST ANSWER: The Morbidelli CX 110 can process panels up to 3050mm (approximately 10 feet) in length. The machine features ergonomic side panel supports that facilitate easy loading and unloading of long panels, reducing operator fatigue and improving workflow efficiency. The self-adjusting mobile clamp handles panel thicknesses from 10mm to 60mm (0.4" to 2.3") without requiring manual adjustments between pieces.
- Inaccurate
- Store Admin on 11/18/2025 04:21 PM
How difficult is it to program and operate the CX 110? Do I need specialized CNC experience?
Chris G. on 11/18/2025 04:19 PM

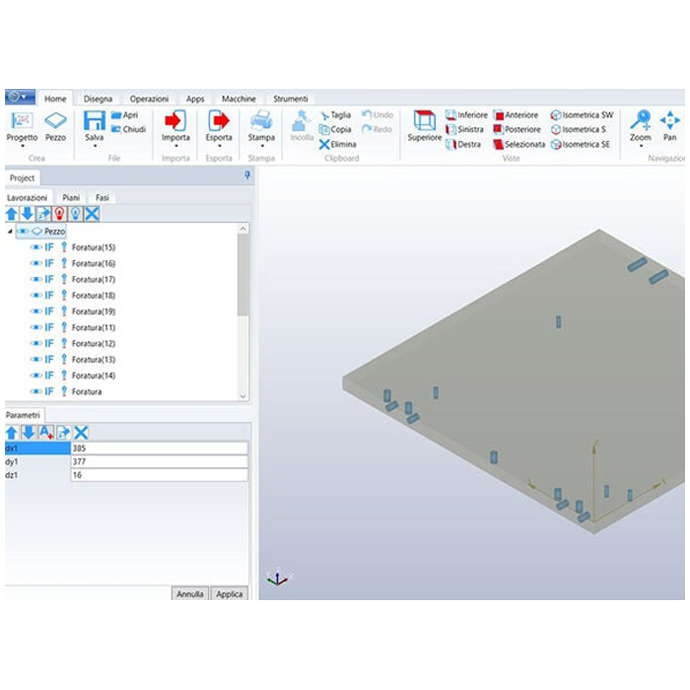

BEST ANSWER: The CX 110 comes with MAESTRO LAB CAD/CAM software, SCM's Windows-based programming system designed specifically for ease of use. The software features an intuitive interface that allows operators to quickly program parts without extensive CNC experience. Key benefits include:
• User-friendly HMI (Human-Machine Interface)
• Ability to transform ideas into finished products efficiently
• An additional software key for office programming, so you don't have to program at the machine
• Zero setup time between panels with the feed-through clamp design
- Inaccurate
- Store Admin on 11/18/2025 04:21 PM
How does the CX 110 handle delicate or pre-finished panels?
Chris G. on 11/18/2025 04:19 PM
BEST ANSWER: The CX 110's worktable is specifically designed to process lacquered and sensitive panels without causing scratches or surface damage. The machine features:
• Lower bearings and a side-alignment device for maximum workpiece stability
• A shaped mobile clamp with floating opening that requires no adjustment
• Upper presser units that ensure gentle but secure holding
• Integrated photocell safety systems
- Inaccurate
- Store Admin on 11/18/2025 04:21 PM
What kind of tooling does the CX 110 use, and how easy is it to change tools?
Chris G. on 11/18/2025 04:19 PM

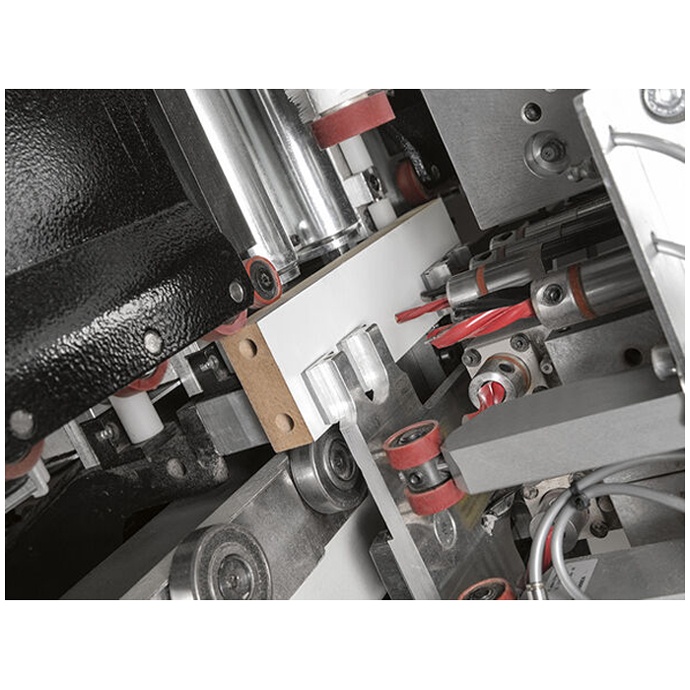

BEST ANSWER: The CX 110 features a 6-position automatic tool changer and comes equipped with:
• 18 independently-fired drills in the Ro.Ax drilling head
• Hiteco 4.5 kW (6HP) electrospindle capable of speeds up to 24,000 RPM with HSK63F tool attachment
• Rapid tool change capability for minimal downtime

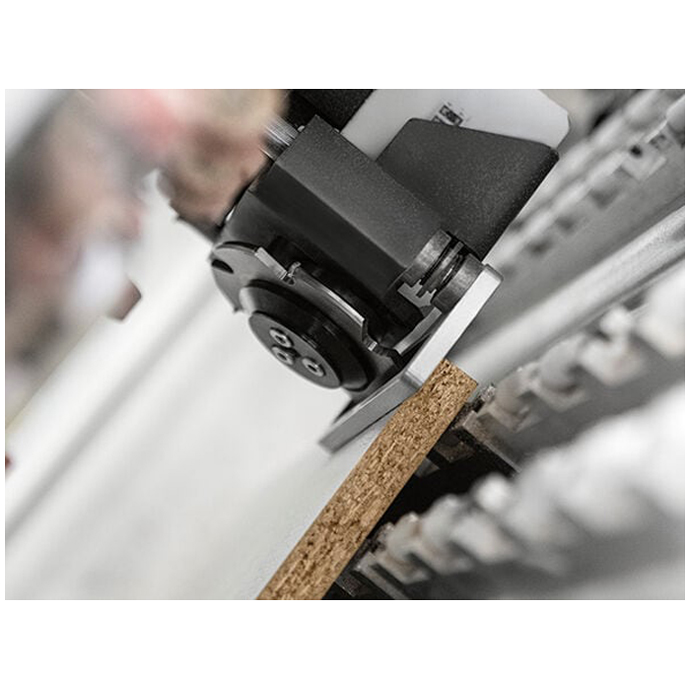

• An integrated grooving blade for additional processing capabilities
The automatic tool changing system means you can run multiple operations without stopping the machine for manual tool changes, significantly increasing productivity.
Parts Availability: At Würth Baer Machinery, we stock replacement tooling for SCM machines and can quickly supply insert knives, router bits, and drill bits to keep you running.
- Inaccurate
- Store Admin on 11/18/2025 04:22 PM
What is the productivity of the CX 110, and is it suitable for both high-volume and custom work?
Chris G. on 11/18/2025 04:19 PM
BEST ANSWER: The CX 110 is engineered for versatility, making it suitable for both batch production and batch-1 (custom, one-off) processes:
• Capable of processing up to 400 panels per shift
• Zero setup time between panels due to the feed-through clamp design
• Automatic length measurement and top-side referencing reduce manual operations
• Adaptable setups for any type of product
- Inaccurate
- Store Admin on 11/18/2025 04:22 PM
Can the CX 110 be integrated with other machinery or automation systems?
Chris G. on 11/18/2025 04:19 PM

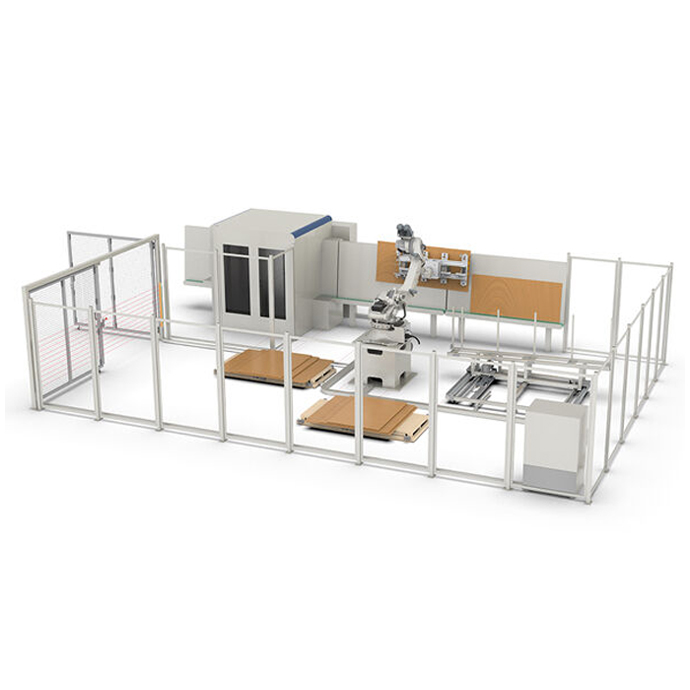

BEST ANSWER: Yes! The CX 110 features a versatile workpiece unloading area that can be integrated with:
• Panel return systems for continuous workflow
• Robot cells for automated loading/unloading
• Conveyor systems for material handling
The machine's compact design and flexible configuration options make it easy to incorporate into existing production lines or build around as your operation grows.
- Inaccurate
- Store Admin on 11/18/2025 04:22 PM
