SCM Morbidelli CX 100 CNC Drilling Center

Product details

Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood

Manufacturer:	SCM
Part Number:	MORBIDELLI CX100
MPN:	CX100

The SCM Morbidelli CX100 CNC Drilling Center delivers exceptional speed, accuracy, and automation for drilling, grooving, and vertical routing operations. Designed for high-performance cabinetry and panel processing, it features automatic workpiece length detection, top-down drilling, and advanced tool management through SCM's proprietary Maestro software. With its scratch-free worktable and intuitive operation, the CX100 is built to maximize productivity while maintaining superior finish quality—even on delicate surfaces.

Key Features & Benefits

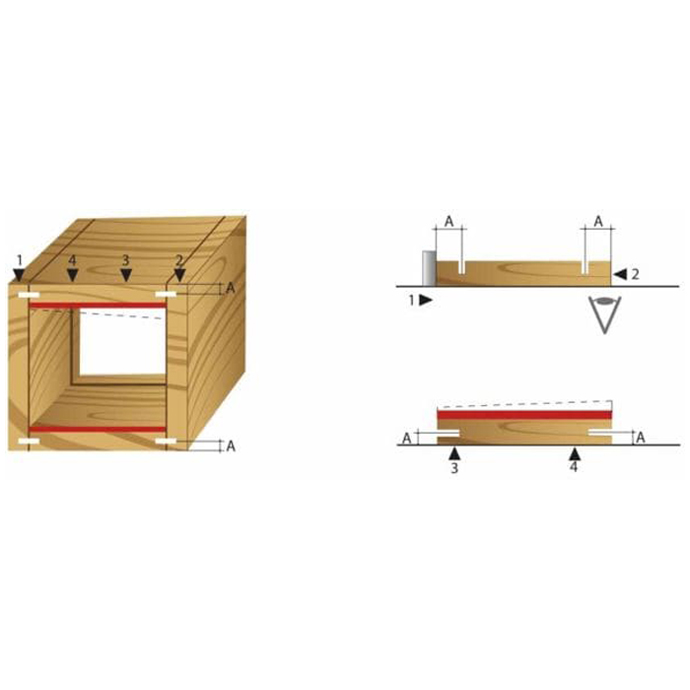

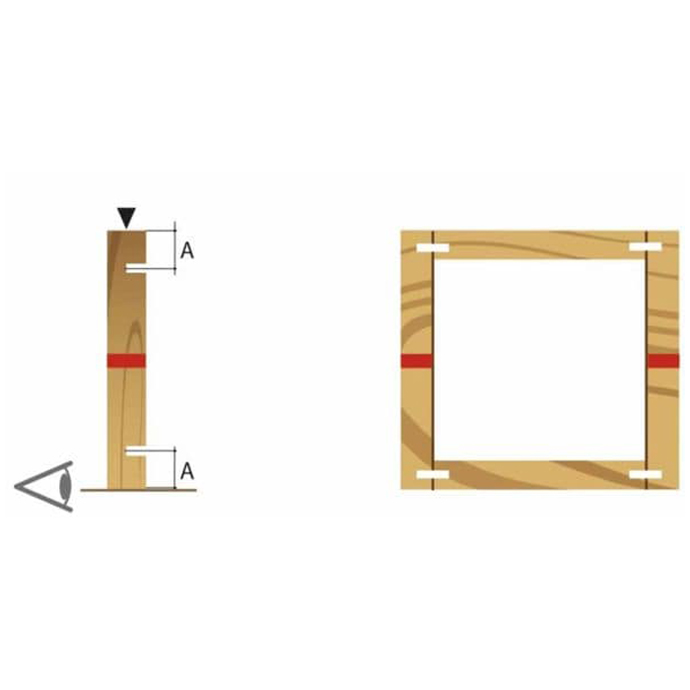

Precision Drilling with Top Reference Logic
• Top-down drilling hides imperfections within the cabinet interior
• Uses the panel’s exterior as the reference to offset thickness variations
• Supports high productivity without operator intervention on the worktable

Automatic Length Measurement for Perfect Joints
• Integrated laser system auto-detects workpiece length
• Corrects discrepancies for perfect joint alignment every time
• Eliminates manual adjustments, saving time and reducing human error

User-Friendly Operation with Maestro Software
• SCM’s Maestro CAD/CAM platform for intuitive programming
• Operates within a Windows environment with easy tool and process management
• Reduces programming time and improves workflow consistency

6-Position Automatic Tool Changer for Versatile Production
• Seamlessly switches tools for varied operations without manual changeover
• Enhances flexibility for small batch or high-volume runs

Stable, Scratch-Free Worktable for Delicate Materials
• Floating mobile clamp ensures maximum stability during machining
• Upper presser unit keeps workpieces aligned and steady
• Designed to prevent surface damage, ideal for lacquered and sensitive panels

Efficient Material Handling
• Side supports simplify loading/unloading of panels up to 3050 mm
• Boosts operator efficiency while minimizing fatigue

This Product may incur additional tariff charges.

Specifications

Manufacturer SCM
Part Number MORBIDELLI CX100
Manufacturer's Part CX100
Vertical Speed X-Y Axes 40 m/min
Max. Workpiece Dimension 3050 x 900 x 60 mm
Min. Workpiece Dimensions 200 x 70 x 10 mm
Independent Vertical Spindles 12"
Independent Horizontal Spindles X Direction 2"
Electrospindle Motor Power 5,5 kW
Independent Horizontal Spindles Y Direction 4

Questions and Answers

Please Sign In to post questions.

Type your question below and we'll check if it is already answered.Learn more...

How to Use This Tool

Type in your question. If we find a matching question in our database, we'll show it immediately.
If there are no results found, please post a new question here. Answers will come from other customers and from our product experts.

For order questions, please contact customer service directly at 866-326-8131 or via our contact form

Have a question about our products?

8 Question(s) Found:

How much production space does the CX 100 require, and what's the productivity?

Chris G. on 11/18/2025 04:35 PM

BEST ANSWER: The Morbidelli CX 100 is remarkably compact, occupying only 8 square meters (less than 100 square feet) of floor space while delivering industrial-level performance. Despite its small footprint, the CX 100 can process up to 400 panels per shift, making it one of the most space-efficient drilling solutions available.

Inaccurate
Store Admin on 11/18/2025 04:36 PM

I Have This Question Too (0)

The Morbidelli CX 100 is remarkably compact, occupying only 8 square meters (less than 100 square feet) of floor space while delivering industrial-level performance. Despite its small footprint, the CX 100 can process up to 400 panels per shift, making it one of the most space-efficient drilling solutions available.

Vote
Inaccurate
Store Admin on 11/18/2025 04:36 PM

What panel sizes and thicknesses can the CX 100 handle?

Chris G. on 11/18/2025 04:35 PM

BEST ANSWER: The CX 100 can process panels with the following specifications: • Maximum panel length: Up to 3050mm (approximately 10 feet) • Panel thickness range: 10mm to 60mm (0.4" to 2.3") • Self-adjusting mobile clamp with floating opening that requires no adjustment between different thicknesses The machine features ergonomic side panel supports that allow operators to easily load and unload long panels, reducing fatigue and improving workflow efficiency. This makes it ideal for processing everything from standard cabinet sides to tall pantry panels and closet components.

Inaccurate
Store Admin on 11/18/2025 04:36 PM

I Have This Question Too (0)

The CX 100 can process panels with the following specifications: • Maximum panel length: Up to 3050mm (approximately 10 feet) • Panel thickness range: 10mm to 60mm (0.4" to 2.3") • Self-adjusting mobile clamp with floating opening that requires no adjustment between different thicknesses The machine features ergonomic side panel supports that allow operators to easily load and unload long panels, reducing fatigue and improving workflow efficiency. This makes it ideal for processing everything from standard cabinet sides to tall pantry panels and closet components.

Vote
Inaccurate
Store Admin on 11/18/2025 04:36 PM

How does top-side drilling benefit my finished products?

Chris G. on 11/18/2025 04:35 PM

BEST ANSWER: Top-side drilling is one of the CX 100's most significant advantages. By drilling and routing from the top face of the panel with the outside surface as the reference: • Thickness variations are hidden - Any inconsistencies in panel thickness are concealed on the bottom (inside) of finished casegoods • Perfect alignment every time - Shelf holes and hardware align perfectly with the finished face • No visible defects - Edge banding and visible surfaces remain flawless • Automatic length measurement creates perfect joints without manual setup

Inaccurate
Store Admin on 11/18/2025 04:37 PM

I Have This Question Too (0)

Top-side drilling is one of the CX 100's most significant advantages. By drilling and routing from the top face of the panel with the outside surface as the reference: • Thickness variations are hidden - Any inconsistencies in panel thickness are concealed on the bottom (inside) of finished casegoods • Perfect alignment every time - Shelf holes and hardware align perfectly with the finished face • No visible defects - Edge banding and visible surfaces remain flawless • Automatic length measurement creates perfect joints without manual setup

Vote
Inaccurate
Store Admin on 11/18/2025 04:37 PM

What drilling and machining capabilities does the CX 100 offer?

Chris G. on 11/18/2025 04:35 PM

BEST ANSWER: The CX 100 is equipped with multiple machining units: Primary Drilling Unit: • 18 independently-fired drills in the patented Ro.Ax (Roto-Axial) drilling head • Drills on 5 sides of the panel with high-rigidity and repeatable accuracy • Zero setup time between panels Routing Capability: • Hiteco 4.5 kW (6HP) electrospindle • Speeds up to 24,000 RPM • HSK63F tool attachment with rapid tool change • Ideal for dadoes, rabbets, and profile cutting Grooving: • Integrated grooving blade for additional processing This combination ensures that additional processing of machined panels is minimized - you can complete most operations in a single pass.

Inaccurate
Store Admin on 11/18/2025 04:37 PM

I Have This Question Too (0)

The CX 100 is equipped with multiple machining units: Primary Drilling Unit: • 18 independently-fired drills in the patented Ro.Ax (Roto-Axial) drilling head • Drills on 5 sides of the panel with high-rigidity and repeatable accuracy • Zero setup time between panels Routing Capability: • Hiteco 4.5 kW (6HP) electrospindle • Speeds up to 24,000 RPM • HSK63F tool attachment with rapid tool change • Ideal for dadoes, rabbets, and profile cutting Grooving: • Integrated grooving blade for additional processing This combination ensures that additional processing of machined panels is minimized - you can complete most operations in a single pass.

Vote
Inaccurate
Store Admin on 11/18/2025 04:37 PM

Is the CX 100 easy to program and operate? What software does it use?

Chris G. on 11/18/2025 04:35 PM

BEST ANSWER: The CX 100 runs on MAESTRO Active CNC CAD/CAM software, developed entirely by SCM in the Windows® environment. Key features include: • User-friendly interface designed for woodworkers, not just programmers • Easy part programming with intuitive tools • Included second software license for office programming - no need to tie up the machine for programming • Quick learning curve for operators without extensive CNC experience The feed-through clamp design means zero setup time between panels, making it practical for both high-volume production runs and custom batch-1 work. Whether you're running 100 identical cabinet sides or 20 different pieces, the CX 100 adapts efficiently.

Inaccurate
Store Admin on 11/18/2025 04:37 PM

I Have This Question Too (0)

The CX 100 runs on MAESTRO Active CNC CAD/CAM software, developed entirely by SCM in the Windows® environment. Key features include: • User-friendly interface designed for woodworkers, not just programmers • Easy part programming with intuitive tools • Included second software license for office programming - no need to tie up the machine for programming • Quick learning curve for operators without extensive CNC experience The feed-through clamp design means zero setup time between panels, making it practical for both high-volume production runs and custom batch-1 work. Whether you're running 100 identical cabinet sides or 20 different pieces, the CX 100 adapts efficiently.

Vote
Inaccurate
Store Admin on 11/18/2025 04:37 PM

How does the CX 100 ensure precision and protect delicate panels?

Chris G. on 11/18/2025 04:35 PM

BEST ANSWER: The CX 100 incorporates multiple precision and panel-protection features: Precision Technologies: • Brushless motors for high-precision movement up to 40m/min • Prismatic linear guides with recirculating ball bearings • Upper presser unit ensures workpiece adherence to the lower reference • 3D PROBE system for X, Y, Z dimensional control Panel Protection: • Worktable designed for delicate panels - processes lacquered and sensitive surfaces without scratches • Lower bearings and side-alignment device for maximum stability • Shaped mobile clamp prevents panel damage during processing • Integrated photocell safety system for operator protection This makes the CX 100 perfect for pre-finished panels, high-gloss materials, and premium wood species where surface quality is non-negotiable.

Inaccurate
Store Admin on 11/18/2025 04:38 PM

I Have This Question Too (0)

The CX 100 incorporates multiple precision and panel-protection features: Precision Technologies: • Brushless motors for high-precision movement up to 40m/min • Prismatic linear guides with recirculating ball bearings • Upper presser unit ensures workpiece adherence to the lower reference • 3D PROBE system for X, Y, Z dimensional control Panel Protection: • Worktable designed for delicate panels - processes lacquered and sensitive surfaces without scratches • Lower bearings and side-alignment device for maximum stability • Shaped mobile clamp prevents panel damage during processing • Integrated photocell safety system for operator protection This makes the CX 100 perfect for pre-finished panels, high-gloss materials, and premium wood species where surface quality is non-negotiable.

Vote
Inaccurate
Store Admin on 11/18/2025 04:38 PM

What types of products and industries is the CX 100 best suited for?

Chris G. on 11/18/2025 04:35 PM

BEST ANSWER: The CX 100 excels in applications requiring precision drilling and routing: Ideal Applications: • Kitchen and bath cabinetry (cabinet boxes, doors, drawer fronts) • Closet and organization systems • Office and store fixtures • Furniture and casegood manufacturing • Architectural woodwork components • Custom doors and frames Customer Profile: • Cabinet shops producing 25-500+ cabinets monthly • Custom furniture manufacturers • Architectural millwork operations • Growing shops needing to automate drilling operations • Established manufacturers adding capacity

Inaccurate
Store Admin on 11/18/2025 04:38 PM

I Have This Question Too (0)

The CX 100 excels in applications requiring precision drilling and routing: Ideal Applications: • Kitchen and bath cabinetry (cabinet boxes, doors, drawer fronts) • Closet and organization systems • Office and store fixtures • Furniture and casegood manufacturing • Architectural woodwork components • Custom doors and frames Customer Profile: • Cabinet shops producing 25-500+ cabinets monthly • Custom furniture manufacturers • Architectural millwork operations • Growing shops needing to automate drilling operations • Established manufacturers adding capacity

Vote
Inaccurate
Store Admin on 11/18/2025 04:38 PM

Can the CX 100 integrate with other equipment, and is it expandable?

Chris G. on 11/18/2025 04:35 PM

BEST ANSWER: Yes! The CX 100 is designed with integration and expansion in mind: Integration Options: • Panel return systems for continuous workflow • Robot cells for automated loading and unloading • Conveyor systems for material handling upstream and downstream • Nesting CNC routers for complete panel processing lines Versatile Configuration: • Workpiece unloading area can be customized • Adaptable setups for different product types • Compatible with SCM's broader ecosystem of machinery As your operation grows from a small shop to a larger production facility, the CX 100 can evolve with you. Our team at Würth Baer Machinery can help design the right automation solution for your current needs and future expansion.

Inaccurate
Store Admin on 11/18/2025 04:38 PM

I Have This Question Too (0)

Yes! The CX 100 is designed with integration and expansion in mind: Integration Options: • Panel return systems for continuous workflow • Robot cells for automated loading and unloading • Conveyor systems for material handling upstream and downstream • Nesting CNC routers for complete panel processing lines Versatile Configuration: • Workpiece unloading area can be customized • Adaptable setups for different product types • Compatible with SCM's broader ecosystem of machinery As your operation grows from a small shop to a larger production facility, the CX 100 can evolve with you. Our team at Würth Baer Machinery can help design the right automation solution for your current needs and future expansion.

Vote
Inaccurate
Store Admin on 11/18/2025 04:38 PM

SCM Morbidelli CX 100 CNC Drilling Center

$91,600.00
