Product details
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Manufacturer: | SCM |
Part Number: | SI 315ES |
MPN: | SI 315ES |
The SCM 12" Sliding Table Saw SI 315ES delivers professional-grade performance with a tilting blade designed for precise, high-quality cuts. Engineered with a unique cast iron saw unit featuring a rigid closed-loop structure, it can accommodate blades up to 400 mm in diameter (with the scoring blade installed) to flawlessly cut veneer panels and thick solid wood. Utilizing 100% of the motor power thanks to an integrated independent scoring blade motor, this saw is built for unmatched cutting finish, even on large workpieces. With advanced high-tech controls and a 360 mm wide sliding table, the SI 315ES offers immediate operational control and flexibility for both miter and resaw applications.
Key Features & Benefits
Robust Build for Unrivaled Cutting Performance

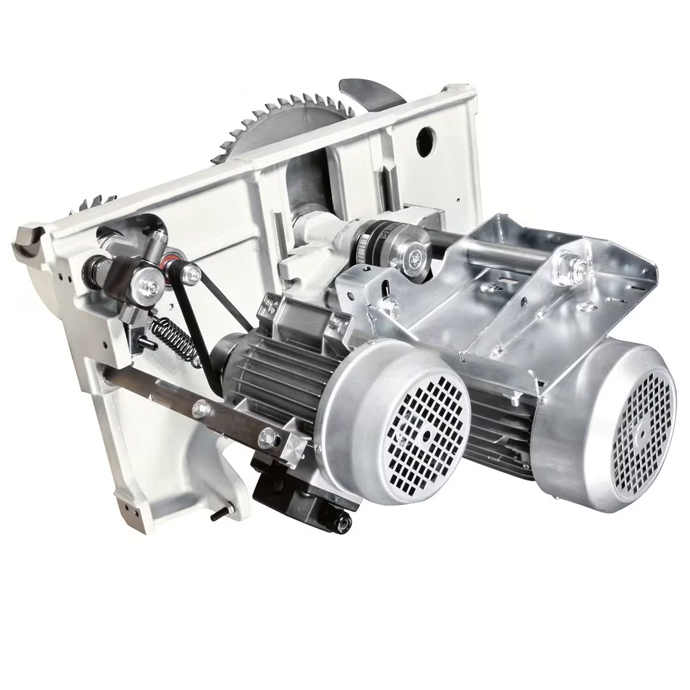

• The cast iron saw unit with a closed-loop structure accommodates a blade up to 400 mm, ensuring maximum power and durability.
• Independent scoring blade motor uses 100% of the motor power, delivering superior cutting performance on both veneer panels and solid wood.
• Rotation fulcrums with 120 mm diameter, supported by steady crescent-shaped rests, provide excellent stability during operation.
Exceptional Precision and Smooth Operation
• A 360 mm wide sliding table offers optimal support for larger workpieces, guaranteeing smooth and consistent cuts.

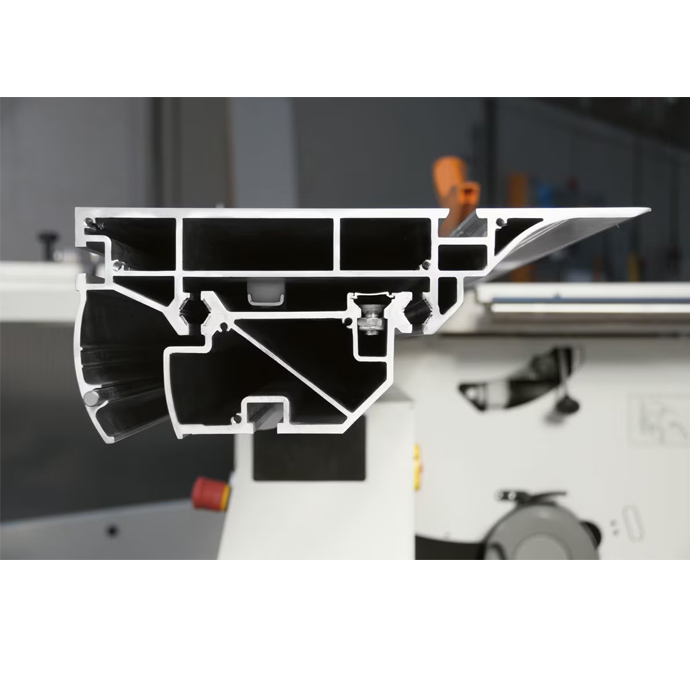

• Aluminum riveting secures the guides instead of glue, preventing inconsistencies and ensuring high precision.
• Provides a quiet and smooth cutting action, minimizing vibration for a flawless finish.
Immediate Control and Versatile Handling

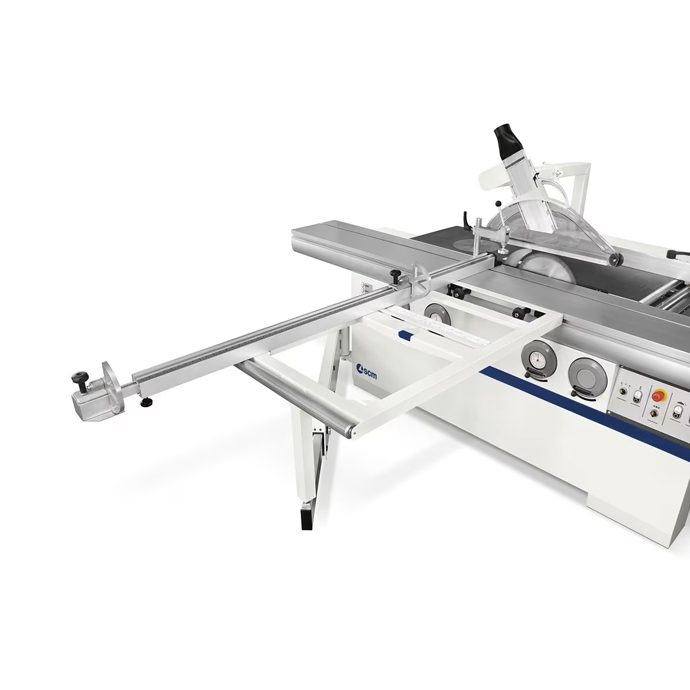

• A large squaring frame with an idle roller simplifies panel loading, ensuring efficient and accurate alignment.
• Telescopic squaring fence with an inclined metric scale and two reversible stops enables squaring panels up to 3200 x 3200 mm and miter cuts up to 45° on both sides.

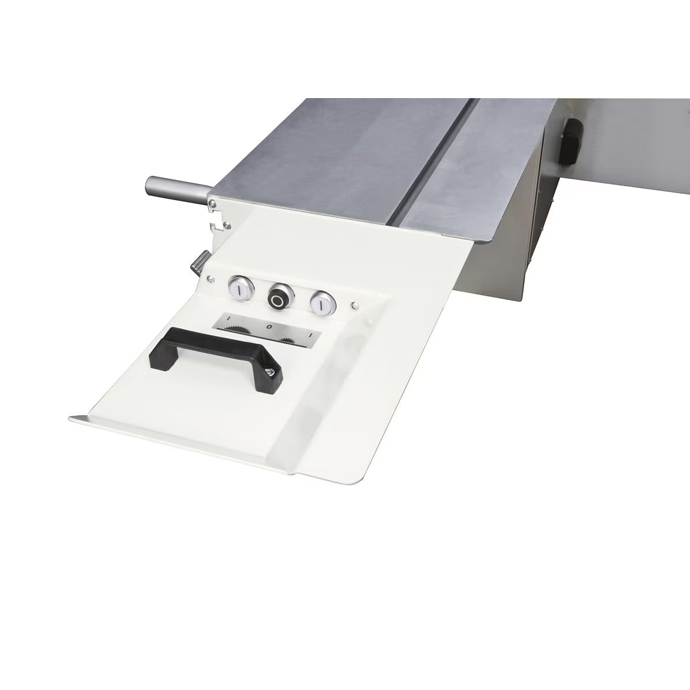

• High-tech start/stop pushbuttons for the main and scoring blades integrated into the sliding carriage offer immediate control, especially for large workpieces that hinder easy access to the main control panel.
Key Features & Benefits
Robust Build for Unrivaled Cutting Performance
• The cast iron saw unit with a closed-loop structure accommodates a blade up to 400 mm, ensuring maximum power and durability.
• Independent scoring blade motor uses 100% of the motor power, delivering superior cutting performance on both veneer panels and solid wood.
• Rotation fulcrums with 120 mm diameter, supported by steady crescent-shaped rests, provide excellent stability during operation.
Exceptional Precision and Smooth Operation
• A 360 mm wide sliding table offers optimal support for larger workpieces, guaranteeing smooth and consistent cuts.
• Aluminum riveting secures the guides instead of glue, preventing inconsistencies and ensuring high precision.
• Provides a quiet and smooth cutting action, minimizing vibration for a flawless finish.
Immediate Control and Versatile Handling
• A large squaring frame with an idle roller simplifies panel loading, ensuring efficient and accurate alignment.
• Telescopic squaring fence with an inclined metric scale and two reversible stops enables squaring panels up to 3200 x 3200 mm and miter cuts up to 45° on both sides.
• High-tech start/stop pushbuttons for the main and scoring blades integrated into the sliding carriage offer immediate control, especially for large workpieces that hinder easy access to the main control panel.
Specifications
Manufacturer SCM Part Number SI 315ES Manufacturer's Part SI 315ES Weight 1,288.000 lbs HP 4.8 HP Main Sawblade Arbor Size 1" Max Squaring Stroke 8.5 Max. Saw Blade Diameter 12" Rip Capacity 50" Scoring Blade Arbor Size 0.79" Scoring Blade Diameter 4.72"
