Product details
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Manufacturer: | SCM |
Part Number: | DMC SD 30 RCS 110 |
MPN: | DMC sd 30 RCS 110 |
The SCM DMC sd 30 RCS 110 is a high-performance, versatile wide belt sander tailored for small woodworking businesses. It handles everything from dense hardwood calibration to delicate veneered surfaces with finesse thanks to smart automation, adaptive sanding systems, and operator-friendly controls.
Key Features & Benefits
Flawless Sanding on All Surfaces
• Grooved steel roller delivers high-precision calibration, even on tough or uneven grains

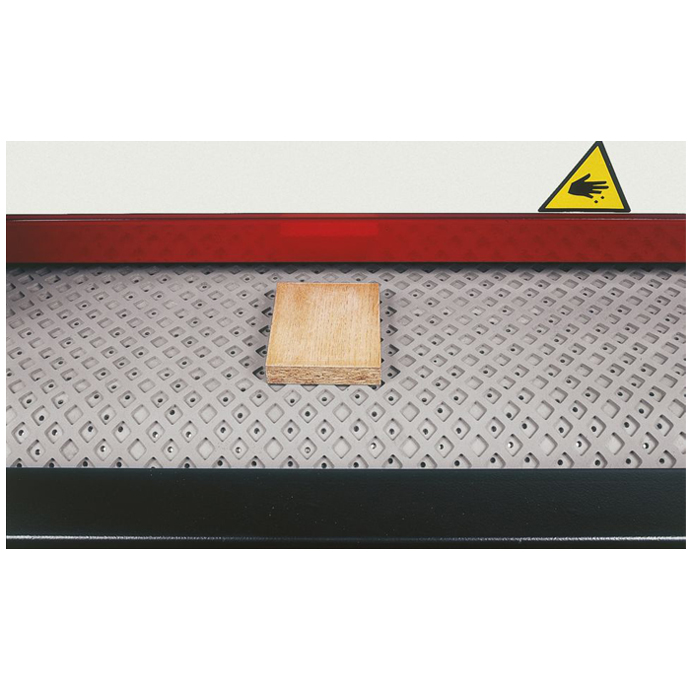

• Elastic sectional pad adapts to surface variations, ideal for veneered or warped panels
• Combined sanding unit ensures smooth, even finishes in one pass
Efficient Automation

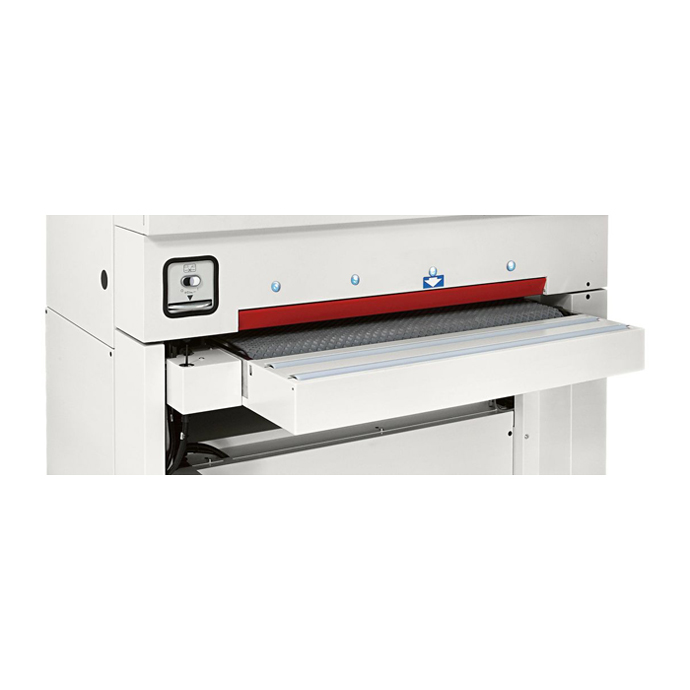

• Electronically adjustable working table adapts quickly to material thickness
• Two selectable belt speeds (4.5 or 9 m/min) for optimal finish quality
• Automatic belt centering reduces downtime and maintenance needs
Intuitive Operation

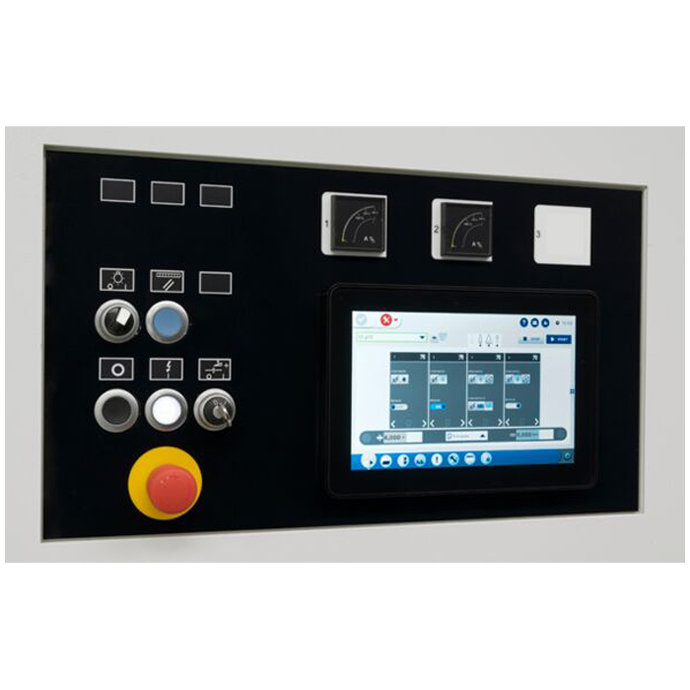

• Eye-S control panel with Maestro Active HMI offers an easy-to-use digital interface

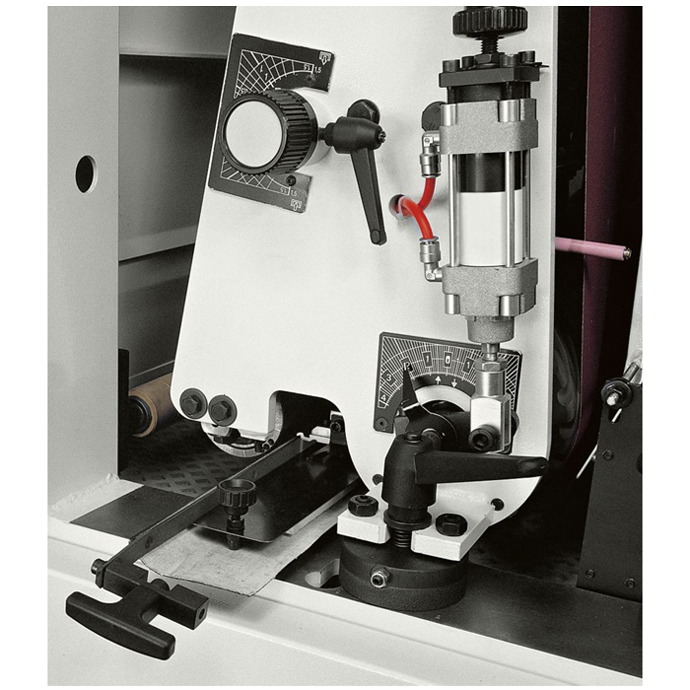

• Pneumatic roller and pad selectors simplify transitions between sanding modes
• Designed for quick learning and reliable performance, even for new users
Key Features & Benefits
Flawless Sanding on All Surfaces
• Grooved steel roller delivers high-precision calibration, even on tough or uneven grains
• Elastic sectional pad adapts to surface variations, ideal for veneered or warped panels
• Combined sanding unit ensures smooth, even finishes in one pass
Efficient Automation
• Electronically adjustable working table adapts quickly to material thickness
• Two selectable belt speeds (4.5 or 9 m/min) for optimal finish quality
• Automatic belt centering reduces downtime and maintenance needs
Intuitive Operation
• Eye-S control panel with Maestro Active HMI offers an easy-to-use digital interface
• Pneumatic roller and pad selectors simplify transitions between sanding modes
• Designed for quick learning and reliable performance, even for new users
Specifications
Manufacturer SCM Part Number DMC SD 30 RCS 110 Manufacturer's Part DMC sd 30 RCS 110 Weight 2,707.000 lbs Abrasive Belt Speed 18 Amps Belt Size 43" x 75" Compressed Air Requirements 88 PSI Drum Size 120 mm Drum Type Steel Calibrating Dust Oulets 1 @ 140 mm Exhaust Requirements 900 CFM Feed Belt Speed 15 or 30 FPM Min/Max Working Thickenss 4-170 mm Motor 30 HP No. Of Heads 1 Platen Size 50 mm Platens Included 2 Unit Type Roller/Combination Head Working Width 43"
Questions and Answers
Please Sign In to post questions.
Type your question below and we'll check if it is already answered.Learn more...
How to Use This Tool
- Type in your question. If we find a matching question in our database, we'll show it immediately.
- If there are no results found, please post a new question here. Answers will come from other customers and from our product experts.
For order questions, please contact customer service directly at 866-326-8131 or via our contact form

11 Question(s) Found:
What materials can the DMC SD 30 RCS 110 handle?
Web Tips W. on 12/06/2024 04:48 PM
BEST ANSWER: The DMC SD 30 RCS 110 is designed for sanding solid wood, plywood, MDF, veneered panels, and composite materials.
- Inaccurate
- Web Tips W. on 12/06/2024 04:49 PM
The DMC SD 30 RCS 110 is designed for sanding solid wood, plywood, MDF, veneered panels, and composite materials.
- Vote
- Inaccurate
- Web Tips W. on 12/06/2024 04:49 PM
What industries benefit from using this machine?
Web Tips W. on 12/06/2024 04:48 PM
BEST ANSWER: It is ideal for use in furniture production, cabinetmaking, plywood manufacturing, and panel processing industries.
- Inaccurate
- Web Tips W. on 12/06/2024 04:49 PM
It is ideal for use in furniture production, cabinetmaking, plywood manufacturing, and panel processing industries.
- Vote
- Inaccurate
- Web Tips W. on 12/06/2024 04:49 PM
What is the sanding width of the DMC SD 30 RCS 110?
Web Tips W. on 12/06/2024 04:48 PM
BEST ANSWER: The DMC SD 30 RCS 110 has a maximum sanding width of 1100 mm (43.3 inches), making it suitable for sanding large panels and workpieces.
- Inaccurate
- Web Tips W. on 12/06/2024 04:49 PM
The DMC SD 30 RCS 110 has a maximum sanding width of 1100 mm (43.3 inches), making it suitable for sanding large panels and workpieces.
- Vote
- Inaccurate
- Web Tips W. on 12/06/2024 04:49 PM
What is the sanding thickness capacity?
Web Tips W. on 12/06/2024 04:48 PM
BEST ANSWER: The sander can handle workpieces with a thickness range of 1 mm to 150 mm (0.04 inches to 5.9 inches), depending on the specific model configuration.
- Inaccurate
- Web Tips W. on 12/06/2024 04:49 PM
The sander can handle workpieces with a thickness range of 1 mm to 150 mm (0.04 inches to 5.9 inches), depending on the specific model configuration.
- Vote
- Inaccurate
- Web Tips W. on 12/06/2024 04:49 PM
What is the maximum sanding speed?
Web Tips W. on 12/06/2024 04:48 PM
BEST ANSWER: The sanding belt can operate at speeds up to 20 meters per second, providing high efficiency in production environments.
- Inaccurate
- Web Tips W. on 12/06/2024 04:50 PM
The sanding belt can operate at speeds up to 20 meters per second, providing high efficiency in production environments.
- Vote
- Inaccurate
- Web Tips W. on 12/06/2024 04:50 PM
Is the SCM DMC SD 30 RCS 110 easy to operate?
Web Tips W. on 12/06/2024 04:49 PM
BEST ANSWER: Yes, the machine features an intuitive control panel that simplifies operation, even for users with limited experience.
- Inaccurate
- Web Tips W. on 12/06/2024 04:50 PM
Yes, the machine features an intuitive control panel that simplifies operation, even for users with limited experience.
- Vote
- Inaccurate
- Web Tips W. on 12/06/2024 04:50 PM
Can it handle high-volume production?
Web Tips W. on 12/06/2024 04:49 PM
BEST ANSWER: Yes, the DMC SD 30 RCS 110 is designed for high-volume, continuous sanding, making it ideal for industrial settings.
- Inaccurate
- Web Tips W. on 12/06/2024 04:50 PM
Yes, the DMC SD 30 RCS 110 is designed for high-volume, continuous sanding, making it ideal for industrial settings.
- Vote
- Inaccurate
- Web Tips W. on 12/06/2024 04:50 PM
Can the sanding speed be adjusted?
Web Tips W. on 12/06/2024 04:49 PM
BEST ANSWER: Yes, the machine offers variable sanding speed to accommodate different materials and desired finishes.
- Inaccurate
- Web Tips W. on 12/06/2024 04:50 PM
Yes, the machine offers variable sanding speed to accommodate different materials and desired finishes.
- Vote
- Inaccurate
- Web Tips W. on 12/06/2024 04:50 PM
Does it include a dust extraction system?
Web Tips W. on 12/06/2024 04:49 PM
BEST ANSWER: Yes, the DMC SD 30 RCS 110 is equipped with a high-efficiency dust extraction system to maintain a clean workspace and reduce airborne dust.
- Inaccurate
- Web Tips W. on 12/06/2024 04:50 PM
Yes, the DMC SD 30 RCS 110 is equipped with a high-efficiency dust extraction system to maintain a clean workspace and reduce airborne dust.
- Vote
- Inaccurate
- Web Tips W. on 12/06/2024 04:50 PM
What maintenance is required for the DMC SD 30 RCS 110?
Web Tips W. on 12/06/2024 04:49 PM
BEST ANSWER: Regular maintenance includes cleaning the sanding belt, checking the motor and tensioning system, inspecting the dust collection system, and lubricating moving parts.
- Inaccurate
- Web Tips W. on 12/06/2024 04:50 PM
Regular maintenance includes cleaning the sanding belt, checking the motor and tensioning system, inspecting the dust collection system, and lubricating moving parts.
- Vote
- Inaccurate
- Web Tips W. on 12/06/2024 04:50 PM
How often should the sanding belts be replaced?
Web Tips W. on 12/06/2024 04:49 PM
BEST ANSWER: Sanding belts should be replaced when they become worn out or damaged. The frequency of replacement depends on usage and the materials being sanded.
- Inaccurate
- Web Tips W. on 12/06/2024 04:50 PM
Sanding belts should be replaced when they become worn out or damaged. The frequency of replacement depends on usage and the materials being sanded.
- Vote
- Inaccurate
- Web Tips W. on 12/06/2024 04:50 PM
