Part of the trusted Panel Master Series, the Ritter R76 is a robust CNC single-row drill system designed for high-volume, high-precision panel processing. With 76 gear-driven spindles and CNC-controlled accuracy, it delivers exceptional throughput for closet manufacturing and custom cabinetry. This system combines heavy-duty construction with user-friendly controls to ensure consistent performance in demanding environments.

Key Features & Benefits

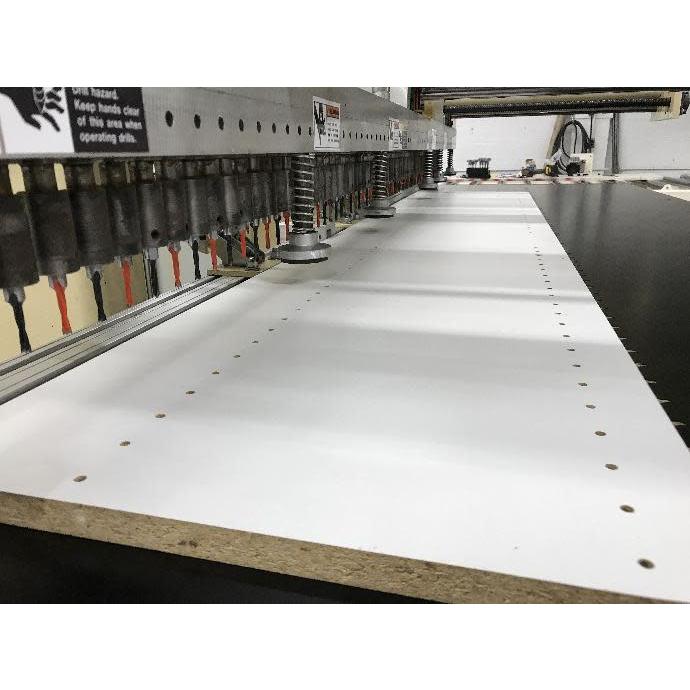

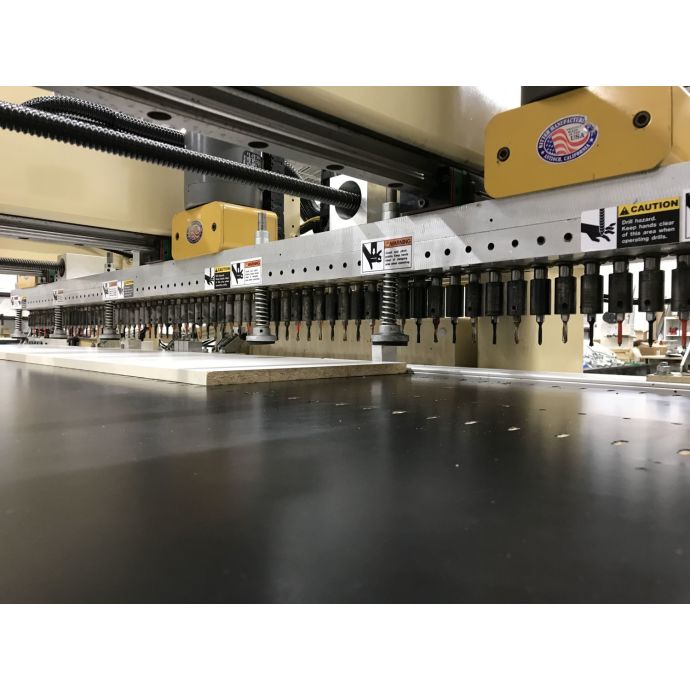

76-Spindle Performance for Efficient Row Drilling
• Drills a full row of holes in one pass, minimizing cycle time
• (39) right-hand and (36) left-hand spindles provide full-panel coverage
• Gear-driven spindles ensure smooth, powerful operation

CNC Precision for Consistent Results
• Twin ball screw guides provide accurate row positioning
• Triple precision guide rails stabilize the table during drilling
• Programmable layout supports quick changeovers and custom projects

Servo-Controlled Boring Depth
• Adjustable depth with servo-driven stroke for clean and repeatable holes
• Twin ball screws on the boring axis guarantee consistent bore quality
• Perfect for precise panel side and closet component drilling

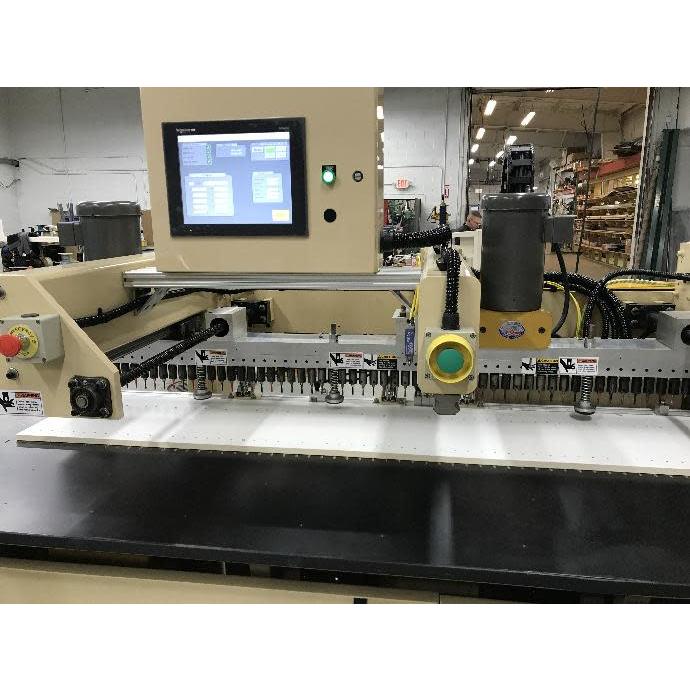

User-Friendly Touchscreen HMI
• Intuitive interface enables fast programming of drilling depth and positions
• Centralized cycle start and emergency stop for streamlined, safe operation

Stable Panel Handling for Accurate Results
• 108" back fence with four adjustable stops ensures proper alignment
• Four pneumatic and four spring clamps hold panels firmly during operation
• Dual workstation design allows left- and right-hand workflow optimization
