Manufacturer: | SCM |
Part Number: | Minimax ME 35ET - 1PH |
MPN: | ME 35ET - 1PH |
SCM is a globally recognized brand known for its advanced woodworking machinery, offering precision, performance, and reliability for professionals. The ME 35ET - 1PH Edgebander is an entry-level, single-phase machine designed for smaller shops that want high-end results without the high-end footprint or cost. With all-in-one edge gluing, trimming, and corner rounding, this machine brings ease of use and advanced features usually found only in larger industrial machines.
Key Features & Benefits

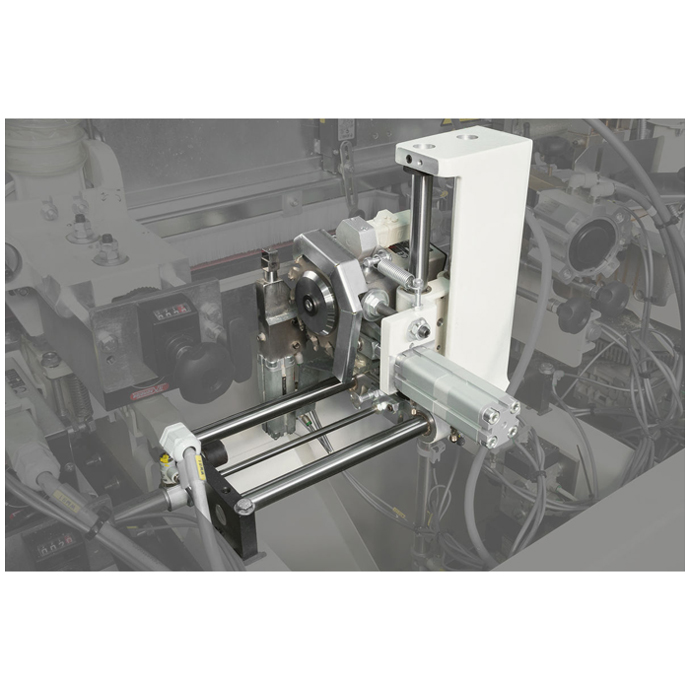

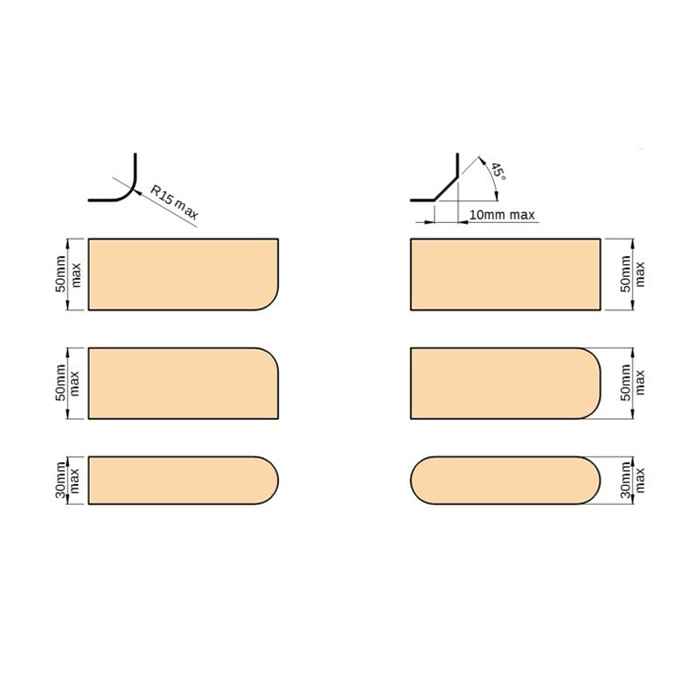

Corner Rounding Unit Enhances Finish Without Manual Work
• The combined end cutting and rounding unit saves time and boosts output with a seamless finish
• Provides automated corner rounding, eliminating the need for hand finishing
• A rigid structure ensures consistent, high-quality edge profiles on every job

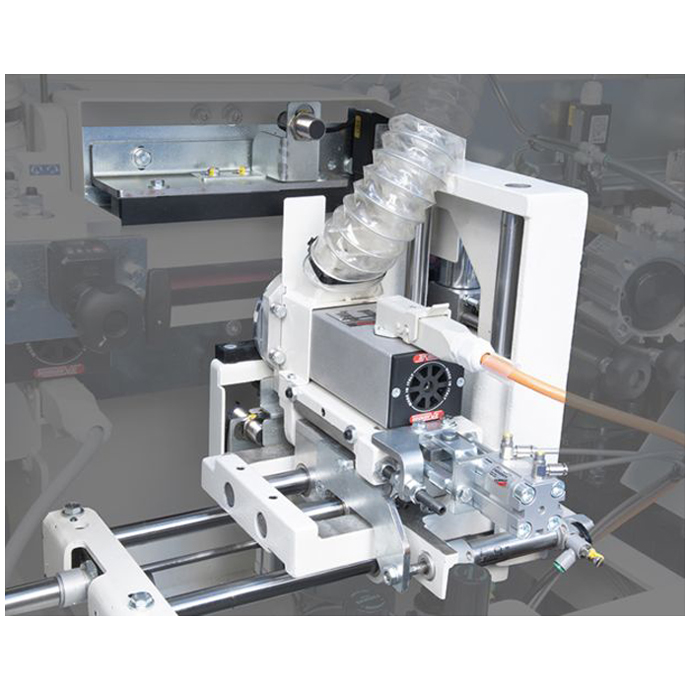

Efficient Glue System Ensures Strong, Clean Bonds
• The resistance-heated glue roller maintains consistent glue temperature even at full panel height
• An automatic standby mode lowers glue temperature during idle time, preventing glue burn
• Self-lubricating glue pot reduces maintenance and extends uninterrupted use
Solid Performance for a Wide Range of Materials
• Handles PVC, ABS, melamine, and even solid wood strips up to 5 mm
• Twin pressure rollers apply the edge banding evenly across various materials
• Ideal for furniture making, cabinetry, and panel processing in small workshops
User-Friendly Operation Minimizes Learning Curve
• Simplified controls make it easy for any operator to manage key functions
• Preconfigured for quick changeovers and adjustments between different edge types
• Clear control panel layout ensures smooth operation and minimal errors
Key Features & Benefits
Corner Rounding Unit Enhances Finish Without Manual Work
• The combined end cutting and rounding unit saves time and boosts output with a seamless finish
• Provides automated corner rounding, eliminating the need for hand finishing
• A rigid structure ensures consistent, high-quality edge profiles on every job
Efficient Glue System Ensures Strong, Clean Bonds
• The resistance-heated glue roller maintains consistent glue temperature even at full panel height
• An automatic standby mode lowers glue temperature during idle time, preventing glue burn
• Self-lubricating glue pot reduces maintenance and extends uninterrupted use
Solid Performance for a Wide Range of Materials
• Handles PVC, ABS, melamine, and even solid wood strips up to 5 mm
• Twin pressure rollers apply the edge banding evenly across various materials
• Ideal for furniture making, cabinetry, and panel processing in small workshops
User-Friendly Operation Minimizes Learning Curve
• Simplified controls make it easy for any operator to manage key functions
• Preconfigured for quick changeovers and adjustments between different edge types
• Clear control panel layout ensures smooth operation and minimal errors
Specifications
Manufacturer SCM Part Number Minimax ME 35ET - 1PH Manufacturer's Part ME 35ET - 1PH Weight 1,500.000 lbs Edge Thickness 0.4 - 3 mm Feed Speed 7 m/min Max. Thickness Of Edges In Strips 5 mm Min/Max. Panel Height 8 ÷ 50 mm Min. Panel Length/Width 190/110 mm Min. Panel Length/Width With End Cutting/Rounding Unit 120/110 mm Phase 1 Work Table Dimensions 3000 x 525 mm
