Manufacturer: | SCM |
Part Number: | Minimax FS 30C X |
MPN: | FS 30C X |
The Minimax FS 30C X combines a high-performance planer-thicknesser with a 59.5" Xylent surfacing table for woodworkers demanding both precision and efficiency. Upgrading the standard 72 mm cutterblock to the quick-change Tersa system ensures faster knife swaps and automatic alignment, while adjustable feed-roller pressure adapts to any wood species. With helical infeed gearing and a sandblasted outfeed roller, this machine consistently delivers smooth, chatter-free finishes.
Key Features & Benefits
Rapid Knife Changes with Tersa Cutterblock
• Quick-release Tersa system lets you swap knives in seconds without tools, minimizing downtime
• Automatic knife positioning ensures perfect alignment every time, eliminating manual adjustments
• Extended cutter life via four-edged knives, yielding four fresh cutting edges per knife before replacement
Whisper-Quiet, High-Quality Finish

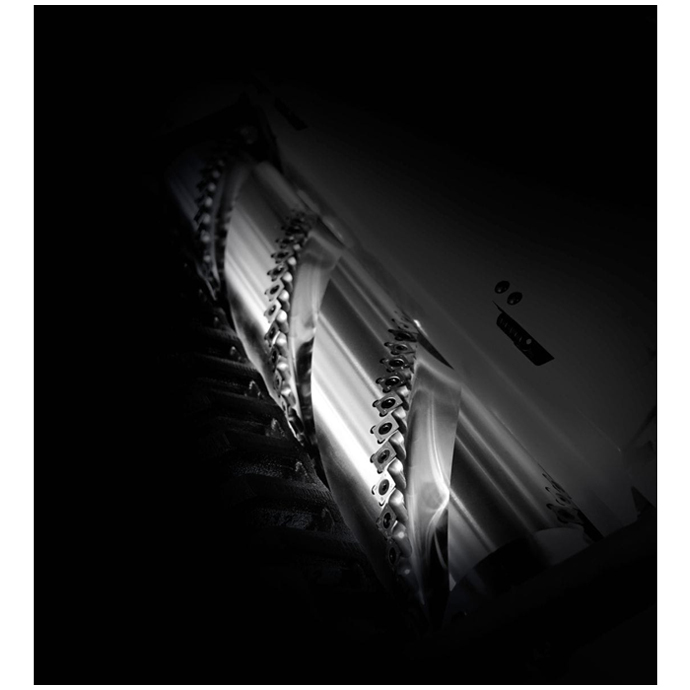

• Xylent spiral-knife block produces very small chips, reducing noise levels by up to 70% during operation
• Helical infeed roller gearing grips workpieces evenly, preventing snipe and ensuring consistent thickness
• Sandblasted steel outfeed roller preserves surface integrity, leaving wood smooth and ready for finishing
Unmatched Stability & Precision
• 1670 mm extruded-aluminum surfacing fences offer maximum rigidity, preventing deflection under load
• Adjustable feed-roller pressure tailors feed rate to wood hardness, ensuring uniform thickness across boards
• 59.5" table length supports large panels and long workpieces, increasing throughput and reducing the need for repositioning
Key Features & Benefits
Rapid Knife Changes with Tersa Cutterblock
• Quick-release Tersa system lets you swap knives in seconds without tools, minimizing downtime
• Automatic knife positioning ensures perfect alignment every time, eliminating manual adjustments
• Extended cutter life via four-edged knives, yielding four fresh cutting edges per knife before replacement
Whisper-Quiet, High-Quality Finish
• Xylent spiral-knife block produces very small chips, reducing noise levels by up to 70% during operation
• Helical infeed roller gearing grips workpieces evenly, preventing snipe and ensuring consistent thickness
• Sandblasted steel outfeed roller preserves surface integrity, leaving wood smooth and ready for finishing
Unmatched Stability & Precision
• 1670 mm extruded-aluminum surfacing fences offer maximum rigidity, preventing deflection under load
• Adjustable feed-roller pressure tailors feed rate to wood hardness, ensuring uniform thickness across boards
• 59.5" table length supports large panels and long workpieces, increasing throughput and reducing the need for repositioning
Specifications
Manufacturer SCM Part Number Minimax FS 30C X Manufacturer's Part FS 30C X Weight 642.000 lbs Working Width 12" Dimensions of Standard Knives 15 x 15 x 2.5mm Cutterblock Diameter 72/48mm/n° Surfacing Table Length 59.5" Feed Speed 7 m/min Cutting Head TERSA Max. Stock Removal 4mm Fence Tilt 0-45-deg Planer Working Height 3 - 230mm Planer table dimensions 300 x 585mm/ 12" x 22" 1 Ph Motor 4.8 HP
