Product details
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
| Manufacturer: | Maksiwa |
| Part Number: | CBC.E |
| MPN: | CBC.E |

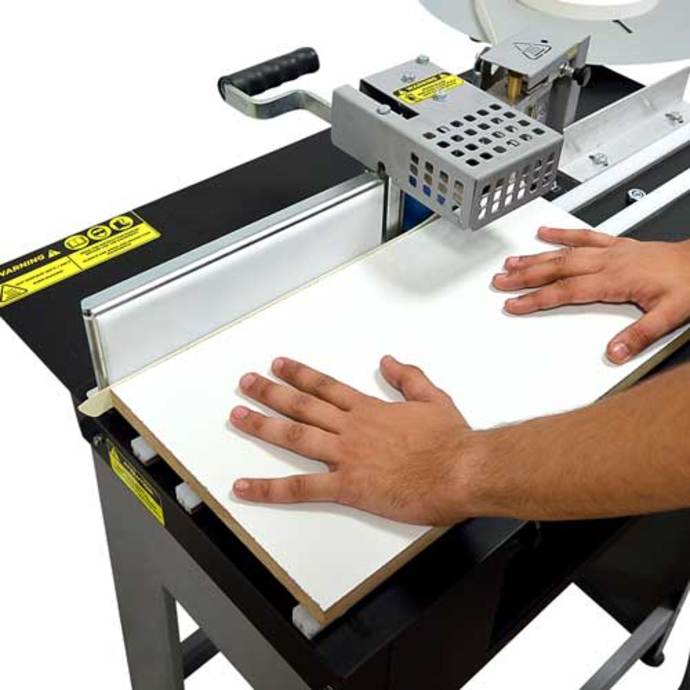

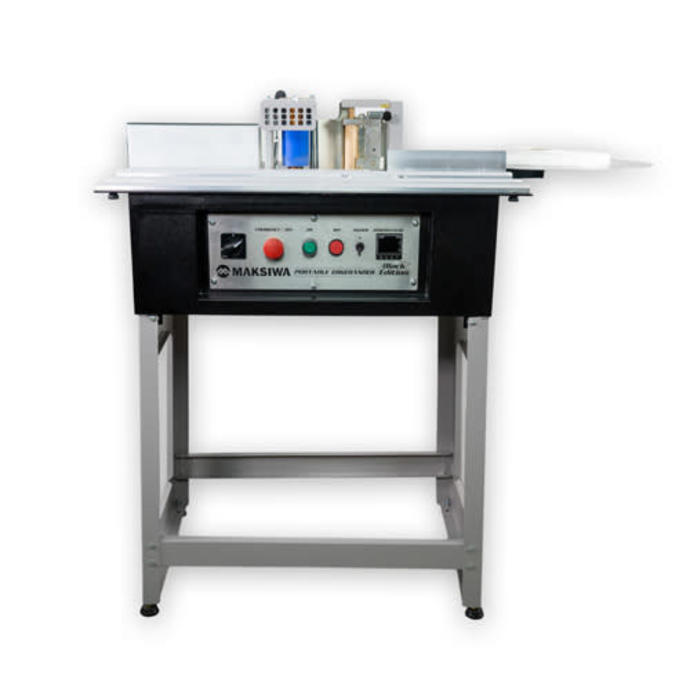

The Maksiwa CBC.E Edgebander is a compact yet powerful solution for woodworking shops and on-site jobs. It handles tape widths up to 3" and thicknesses from 0.3mm to 2mm, making it ideal for a wide range of applications. Equipped with retractable legs and a large support table, it’s easy to transport and set up anywhere. The precision cutter, adjustable guides, and digital temperature control ensure flawless edges with minimal effort.
Key Features & Benefits
Work Anywhere with Easy Portability
• Retractable legs fold in for quick transport to job sites
• Compact design fits small workshops and mobile setups
• Setup takes minutes, ideal for contractors and finish carpenters
Achieve Smooth, Accurate Edgebanding

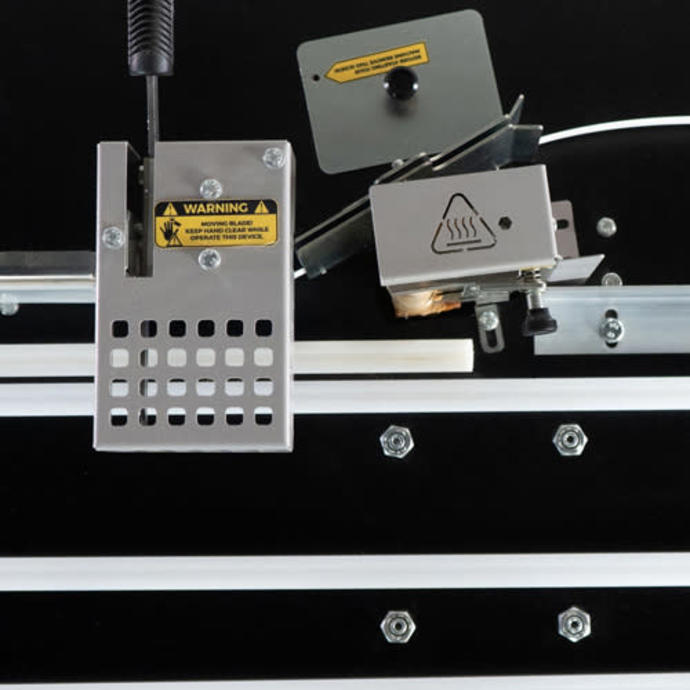

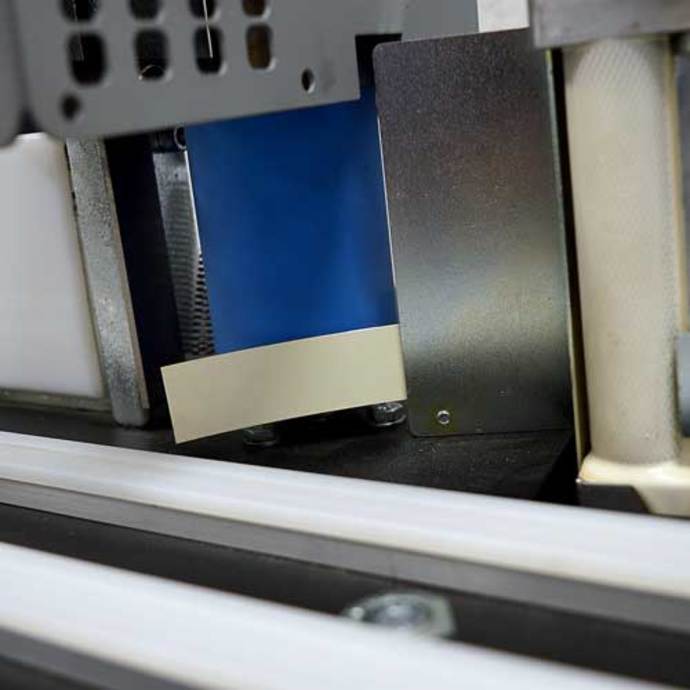

• Manual cutter ensures a clean, professional finish every time

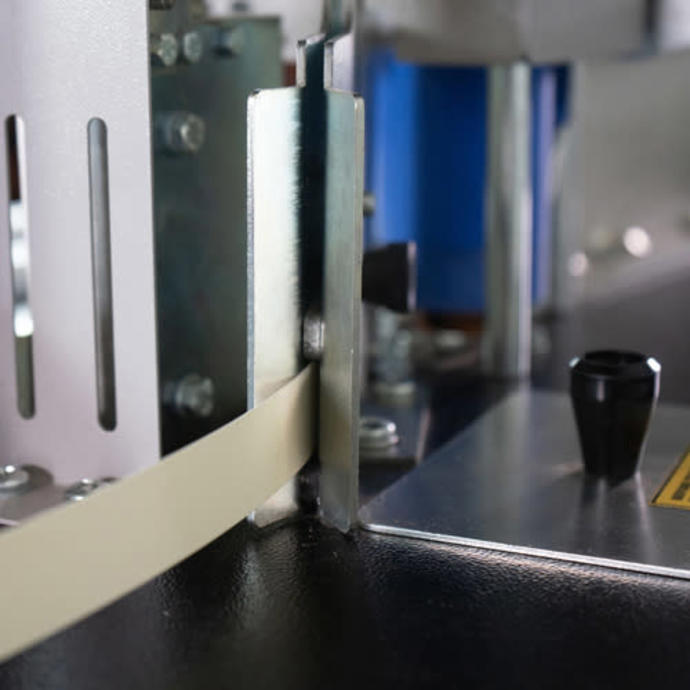

• Tape guide and table guide keep materials aligned and stable
• Adjustable guide supports tape during application for better adhesion
Control Glue Application with Precision

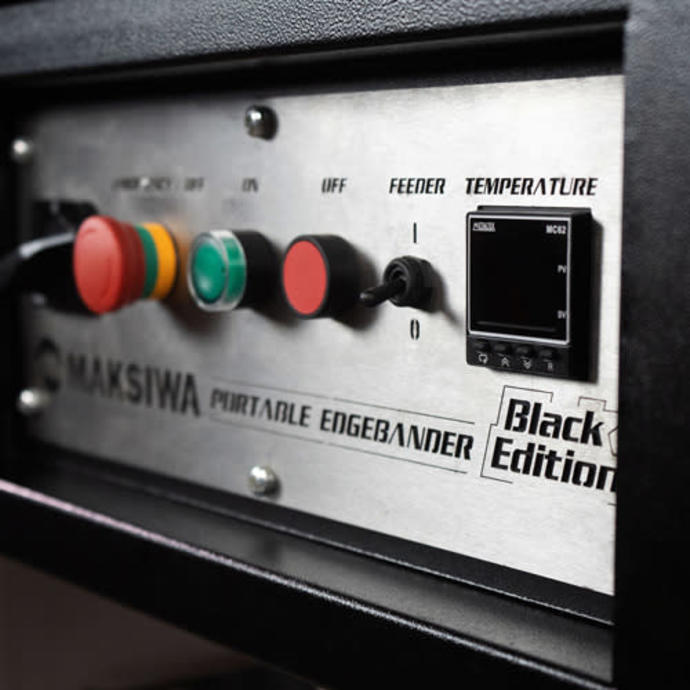

• Digital temperature control panel allows easy adjustment of glue temp
• Glue pot holds 1.5 lbs (700g) for long runs without refill
• Glue flow rate adjustment ensures the right amount every time
Compatible with a Wide Range of Edgebanding Materials
• Works with edgebanding tapes up to 3" wide and 0.3 mm to 2 mm thick
• Handles PVC, ABS, wood veneer, and more with ease

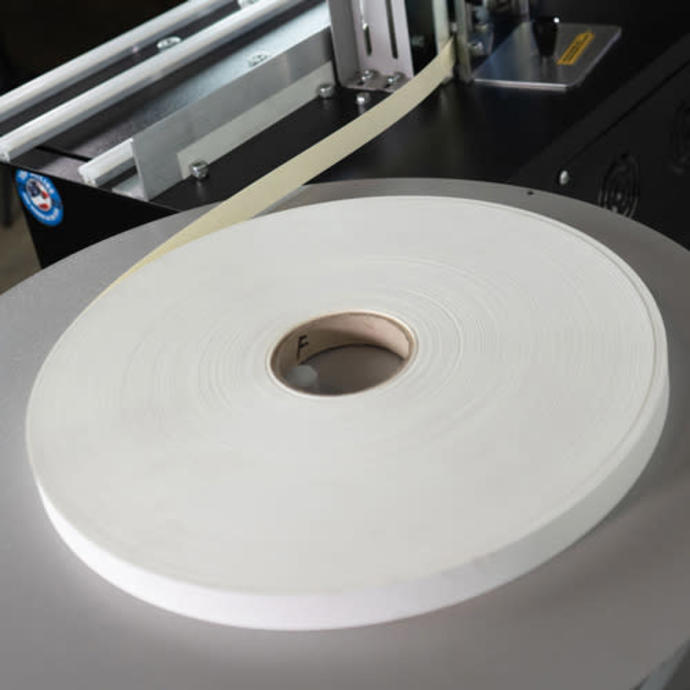

• Large plate fits tape rolls up to 20" for extended use
Safety Comes First for Operator Protection
• Emergency stop instantly shuts down all machine controls
• Low-temperature glue system (130°–180°C) improves safety and efficiency

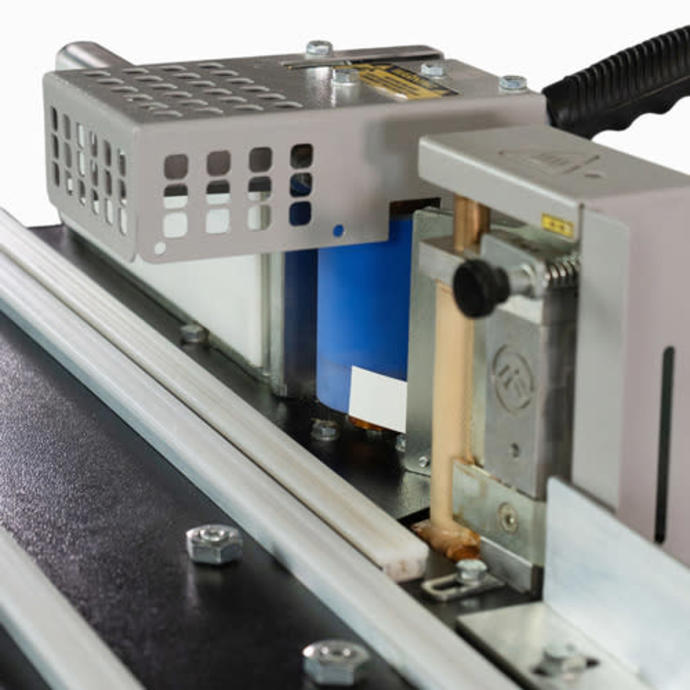

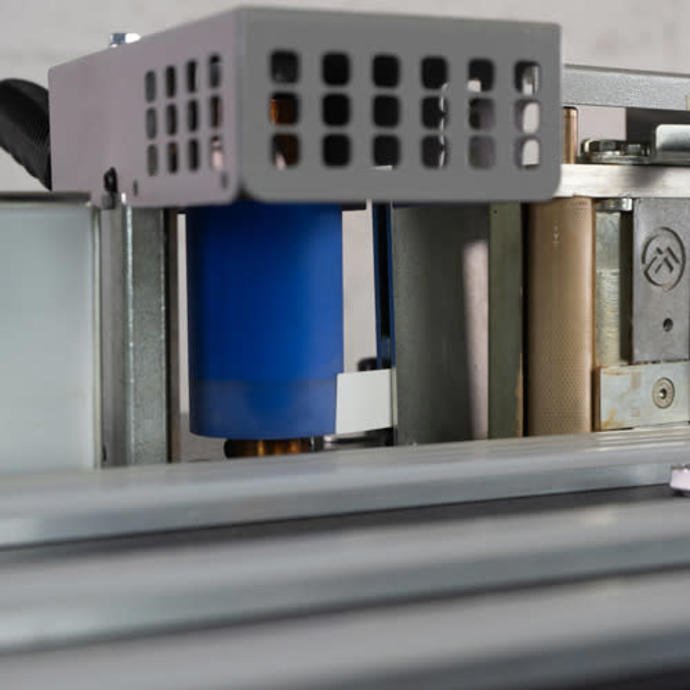

• Spiral bar glue system minimizes spillage and heat hazards
Key Features & Benefits
Work Anywhere with Easy Portability
• Retractable legs fold in for quick transport to job sites
• Compact design fits small workshops and mobile setups
• Setup takes minutes, ideal for contractors and finish carpenters
Achieve Smooth, Accurate Edgebanding
• Manual cutter ensures a clean, professional finish every time
• Tape guide and table guide keep materials aligned and stable
• Adjustable guide supports tape during application for better adhesion
Control Glue Application with Precision
• Digital temperature control panel allows easy adjustment of glue temp
• Glue pot holds 1.5 lbs (700g) for long runs without refill
• Glue flow rate adjustment ensures the right amount every time
Compatible with a Wide Range of Edgebanding Materials
• Works with edgebanding tapes up to 3" wide and 0.3 mm to 2 mm thick
• Handles PVC, ABS, wood veneer, and more with ease
• Large plate fits tape rolls up to 20" for extended use
Safety Comes First for Operator Protection
• Emergency stop instantly shuts down all machine controls
• Low-temperature glue system (130°–180°C) improves safety and efficiency
• Spiral bar glue system minimizes spillage and heat hazards
This Product may incur additional tariff charges.
Downloads
Maksiwa CBC.E Portable Edgebander Brochure
Specifications
Manufacturer Maksiwa Part Number CBC.E Manufacturer's Part CBC.E Weight 115.000 lbs Edgebanding Coil Support Diameter 19 1/2" Edgebanding Material Melamine /PVC/ABS/PP/ VEENER non-fleeced Electrical Requirements 1 Phase 110 V 1500 W 60Hz End Trim Motor Manual Feed Speed 18 ft/min Glue Pot Capacity 1.5 lbs Glue Pot Tape Granulated Hot-Melt Glue Pot Temperature 266-deg - 356-deg F Max. Edgebanding Height 3" Max. Machine Dimension 47" x 31" x 42" Motor Specs 24 V 10 Amp Recommended Glue Granulated Hot Melt Recommended Glue Temperature Range 130-deg to 180-deg C Shipping Dimension 32" x 22" x 20" Tape Thickness 0.4-2 mm Warranty 2 years
