Product details
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Manufacturer: | Laguna |
Part Number: | MJ8X72E-0130 |
MPN: | MJ8X72E-0130 |
The Laguna JX|8 I Jointer is a precision-built machine designed to handle hardwoods with ease while prioritizing user safety and comfort. Outfitted with the QuadTec II cutterhead, parallelogram tables, and an emergency knee-stop system, it’s an ideal addition to any pro-level workshop.
Key Features & Benefits

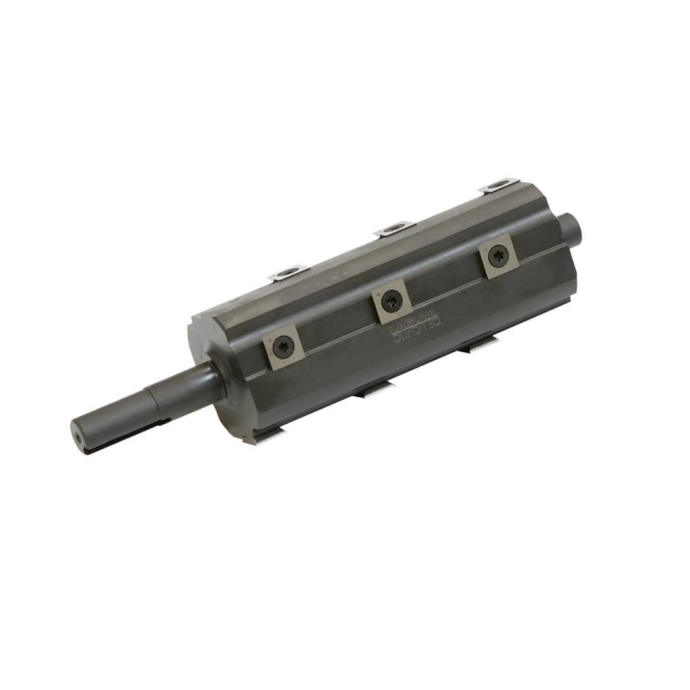

QuadTec II Cutterhead: Longer Life, Cleaner Cuts

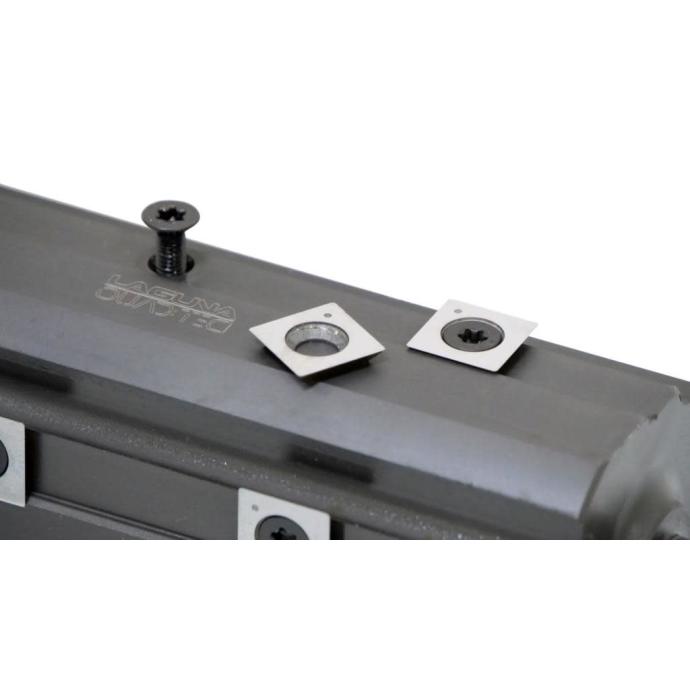

• Features solid carbide inserts (15x15x2.5mm) with four cutting edges
• Handles dense and figured hardwoods effortlessly
• Quieter and smoother than traditional straight knives
Precision with Parallelogram Table System
• Maintains equal spacing from cutterhead for consistent depth of cut
• Reduces snipe and ensures smoother transitions
• Quick adjustments without the need for re-calibration
Built-In Safety & Ergonomics
• Emergency knee-stop bar shuts off power from anywhere along the front
• Ergonomic toe-kick base allows closer stance and safer handling

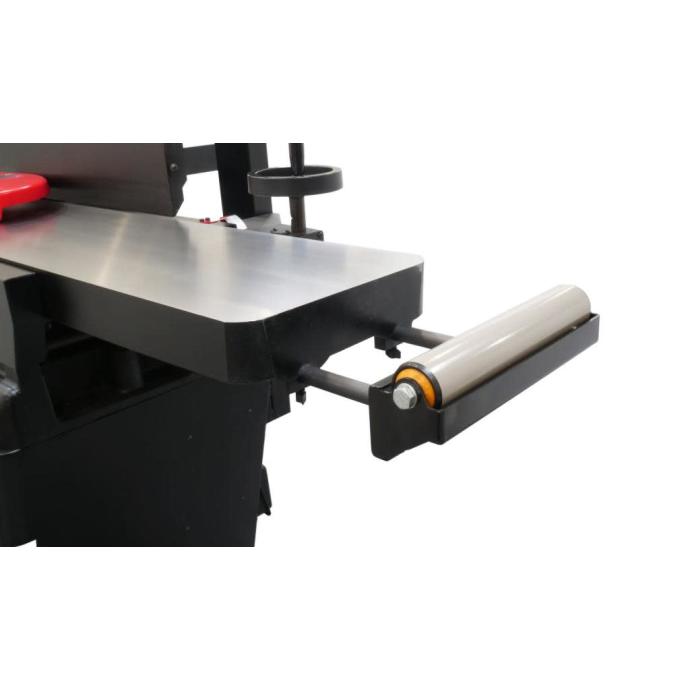

• Includes infeed support roller to help manage longer boards
Key Features & Benefits
QuadTec II Cutterhead: Longer Life, Cleaner Cuts
• Features solid carbide inserts (15x15x2.5mm) with four cutting edges
• Handles dense and figured hardwoods effortlessly
• Quieter and smoother than traditional straight knives
Precision with Parallelogram Table System
• Maintains equal spacing from cutterhead for consistent depth of cut
• Reduces snipe and ensures smoother transitions
• Quick adjustments without the need for re-calibration
Built-In Safety & Ergonomics
• Emergency knee-stop bar shuts off power from anywhere along the front
• Ergonomic toe-kick base allows closer stance and safer handling
• Includes infeed support roller to help manage longer boards
Downloads
Laguna JX|8 QuadTec: I Jointer Brochure
Specifications
Manufacturer Laguna Part Number MJ8X72E-0130 Manufacturer's Part MJ8X72E-0130 Working Width 8" Cutterblock Diameter 3-1/8" Cutting Head QuadTec Surfacing Table Length 72" Fence Tilt 45°/90° Cutterhead Speed 5,500 RPM Worktable Dimensions 8" x 72" Max. Cutting Depth 1/8" Motor 110V 1.75HP 1 Phase 60hz/15 Amp Table Height from Floor 31" Fence Size 38" x 4-3/4" Dust Port 4" Shipping Dimensions 40" x 18" x 26" – 139 Lbs.
82" x 25" x 17" – 319 Lbs.
(Two Boxes)CSA Yes Infeed Table Pull-Out Extension 8" Rabbetting Capacity 1/2" Safety Bar Shut-Off Yes Bracket To Mount Light No Cutterhead Diameter 3-1/8" 110V Outlet For Light No Bracket To Mount Feeder No Plug (NEMA 5-15P) Yes Insert Knives 20 x 4-Sided Carbide, 4-Row Bed Adjustment Parallelogram Approximate Set Up Dimensions 75-1/2" x 26-1/2" Footprint 32-1/2" x 15-1/4"
