This innovative, anodized-aluminum fence features a table saw-style T-square adjustment system that ensures the fence will always stay parallel to the miter-gauge slot. The fence adjusts easily with just one hand, and locks firmly in place with dual locks: A large paddle lock on the infeed end, and a quarter-turn lock on the outfeed end that prevents fence deflection.

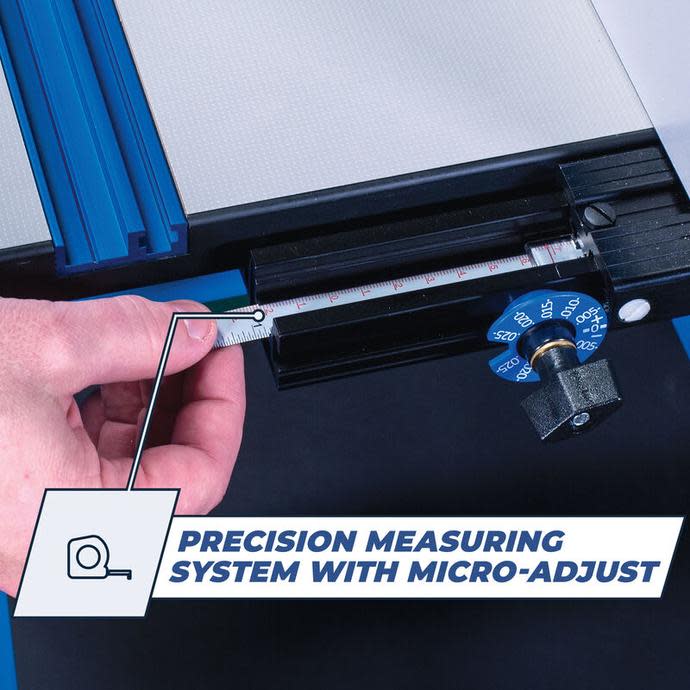

Unparalleled Accuracy: A magnified measuring system with an adjustable measuring scale allows accurate setup with any bit. The included Micro-Adjuster allows you to dial in precision measurements exactly.

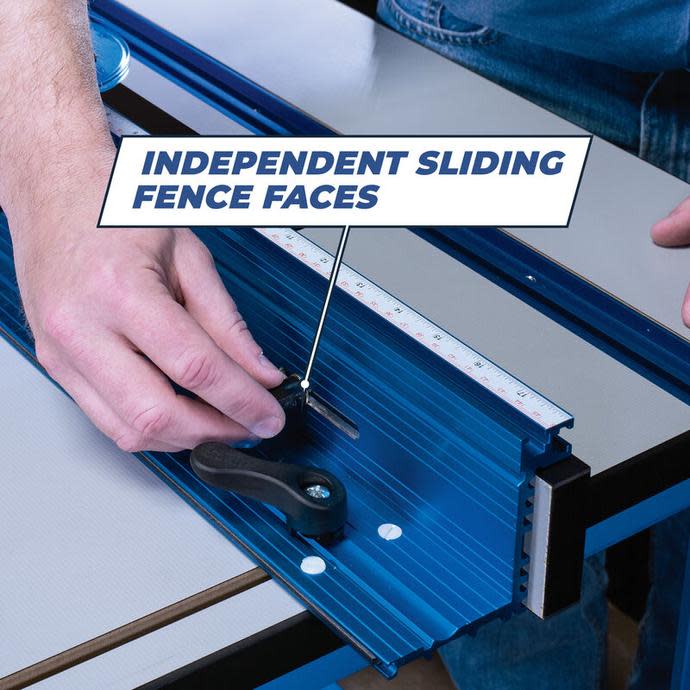

Independent Sliding Fence Faces: Independent sliding fence faces can be positioned exactly where needed to provide workpiece support close to the bit, and to maximize chip collection into the fence’s built-in dust port.

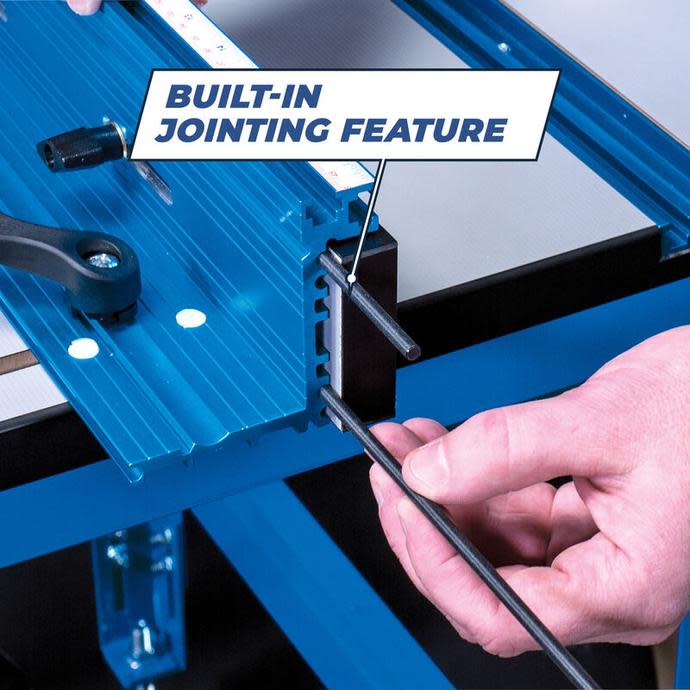

Built-In Jointing Feature: Two jointing rods come included in this system. Just slide them into position behind the outfeed fence face, and the fence doubles as a jointer for putting perfect edges on boards.
Universal Mounting: Get real precision on any router table. A single-side, universal-mounting design allows the fence to be securely attached to most router table tops from 3/4" to 1 1/2" (19-38mm) thick.
Create a Custom Router Table System: Create a custom router table system to meet all of your routing needs with the Kreg® Precision Router Table Top and Kreg® Multi-Purpose Shop Stand. Or, create your own system with a shop-made table top and stand.
Note: Router bit hole must be located 16" (406mm) from right side of table. Fits 1"-thick (25mm) tables without modification. Thinner or thicker tables may require modification.
Highlights:

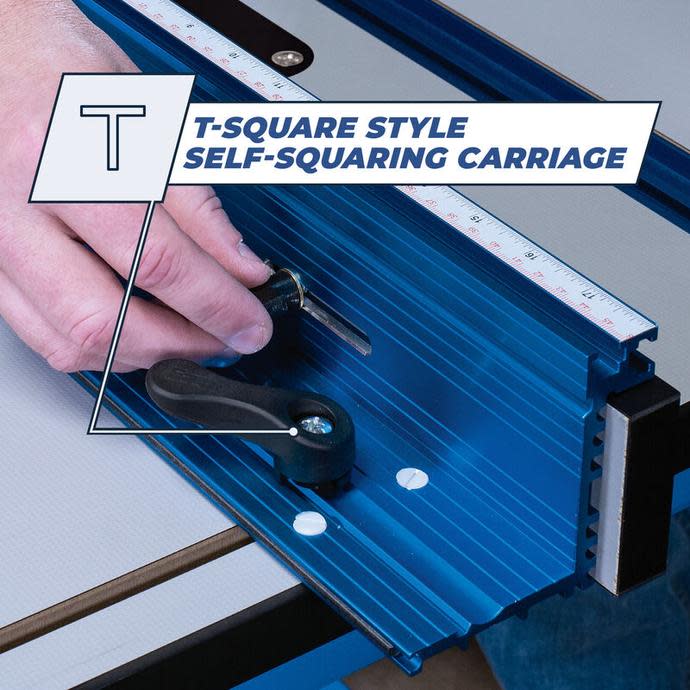

T-square style self-squaring carriage

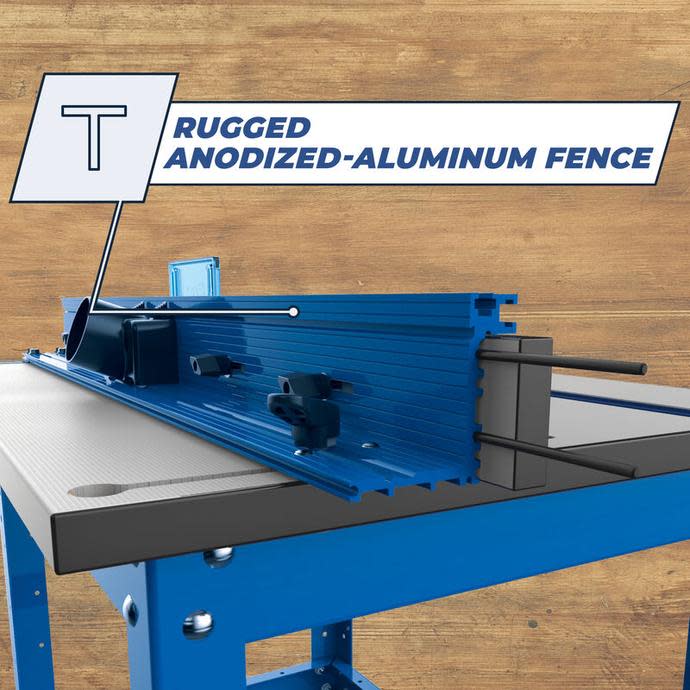

Rugged anodized-aluminum fence
Independent sliding fence faces
Precision measuring system with micro-adjust
Jointing feature with jointing rods
Features:
Easy-Slide™ low-friction surface
Heavy-duty 3/8" x 9 1/4" x 11 3/4" insert plate
Precision Insert Plate Levelers
Versatile combination miter slot/T-Track
Part of the Precision Router Table System
Jointing capability
Specifications:
Dimensions:
36" overal llength
Construction:
Anodized aluminum, MDF, melamine
Compatibility:
Fits most router table tops from 3/4" to 1 1/2" (19-38mm) thick, designed for 32" table width
