Designed with the same tried-and-true efficient design and hardened-steel drill guides as the original Kreg Pocket-Hole Jig, the Pocket-Hole Jig HD lets you create joints in 1 1/2" and thicker materials that are an amazing 50% stronger than traditional Kreg Joints™. If you are framing walls, building deck railings, outdoor furniture, or any other large project, you always want the strongest joint possible; and this is where the Kreg Pocket-Hole Jig HD excels — strength.

Great for 2x4s and 1 1/2"-Thick and Larger Stock: The Kreg Pocket-Hole Jig HD is optimized for working with 2x4s and 1 1/2" thick and larger stock. It utilizes #14 heavy-duty, hardened-steel screws that provide incredible shear-resistance, as well as three anti-corrosion layers for incredible long-term moisture resistance.

Works As a Stand-Alone Jig: The Pocket-Hole Jig HD works great as a stand-alone jig. Simply connect it to your Kreg Face Clamp, lock it into place, and take it where you need to go. Depending on the project, the Kreg Pocket-Hole Jig HD can also connect directly to your model K3, K4, or K5 benchtop base for upright drilling.

NOTE: Be sure to check with your local building code authority before using the Kreg Pocket-Hole Jig HD to construct load-bearing objects such as interior walls or deck railings. Building codes differ from area to area. Please reference applications in the user manual.

Highlights:

• Creates joints 50% stronger than standard Kreg Joints
• Optimized for large outdoor projects
• For use with materials 1 1/2" thick (38mm) and thicker
• Works with the Kreg Pocket-Hole Jig K5, K4, and K3
• Stop Block provides easy, repeatable registration to workpiece
• Face Clamp locks into Kreg Jig HD for secure drilling

features:

• For use with materials 1 1/2"-thick and thicker material
• Works independently or with K5, K4 or K3 jigs
• 1 7/16" center-to-center drill guide spacing

Specifications:

• Capacity:
  • Materials 1 1/2" thick and thicker
• Construction:
  • Glass-filled nylon, polymer, steel

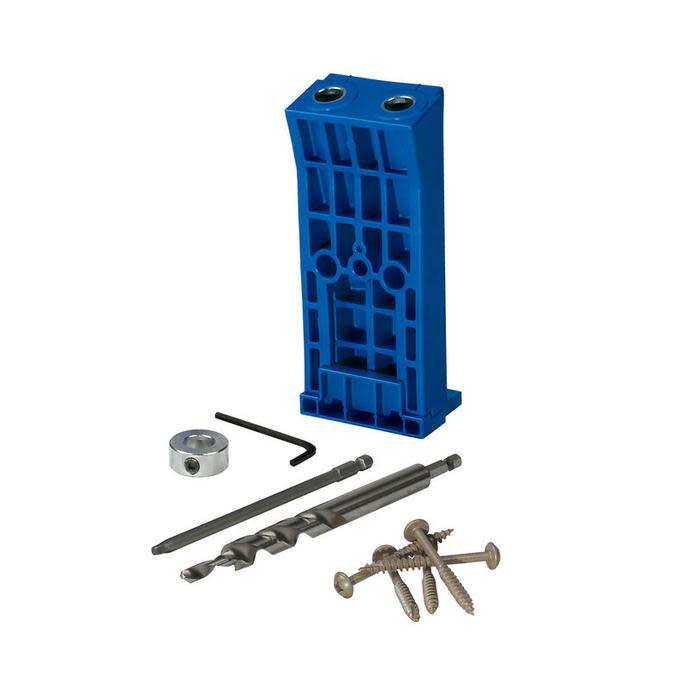

Includes:

• (1) HD Drill Guide
• (1) Stop Block
• (1) 1/2" (12mm) Diameter HD Stepped Drill Bit
• (1) 6" HD Driver Bit
• (1) Stop Collar
• (1) Allen Wrench
• (1) Starter Kreg® Screw Set
• (1) Owner's Manual

Compatibility:

• Kreg HD Pocket-Hole Screws
• HD stepped drill bit
• HD driver bit
• Pocket-Hole Jig K5, K4, K3
• Custom Pocket-Hole Plug Cutter
• Foreman Pocket-Hole Machine
