Jet JWBS-15-3, 15" Bandsaw, 3HP, 230V.
Designed to perform, the JET 15" bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 15” steel frame bandsaw is engineered to build great projects through superior performance.
Features:
14" Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
21-1/2" x 16" precision ground cast iron table for added stability and work support

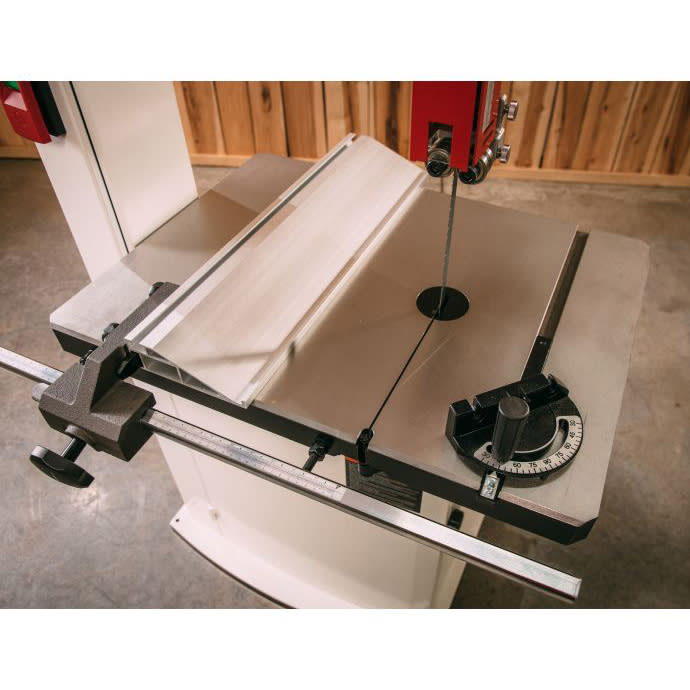

Fence system features a micro-adjustable, dual-position side plate
Tool-less, independently adjustable, upper and lower ball bearing guides

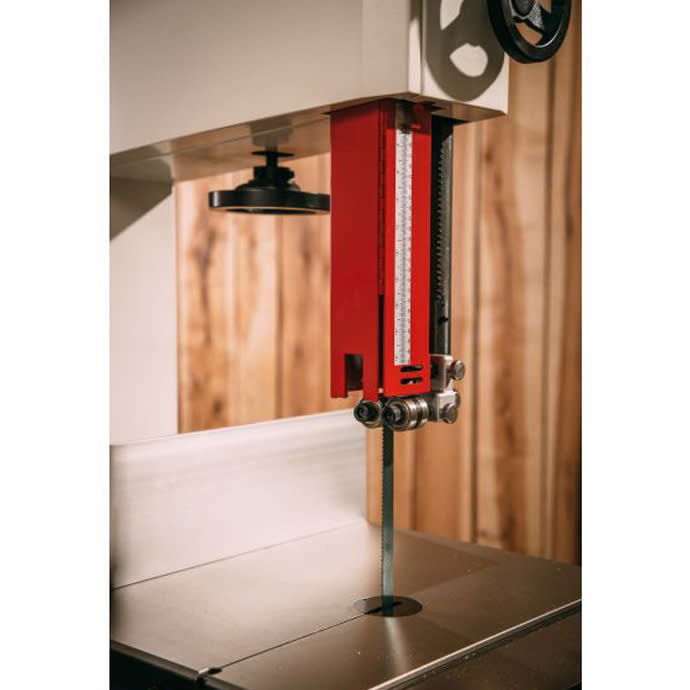

Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support

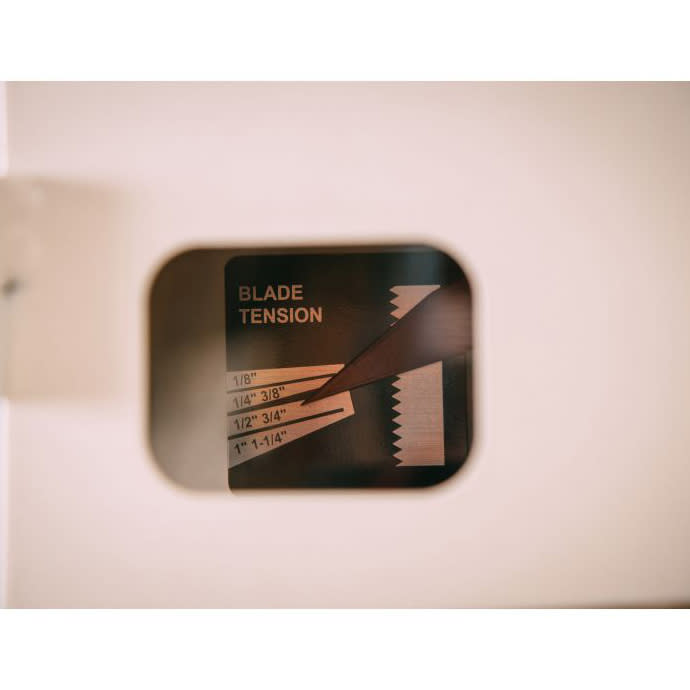

Easy-to-read blade tension scale can be viewed through upper door window
Single knob adjustment simplifies the blade tracking process
Blade tracking window provides clear view of blade during tracking

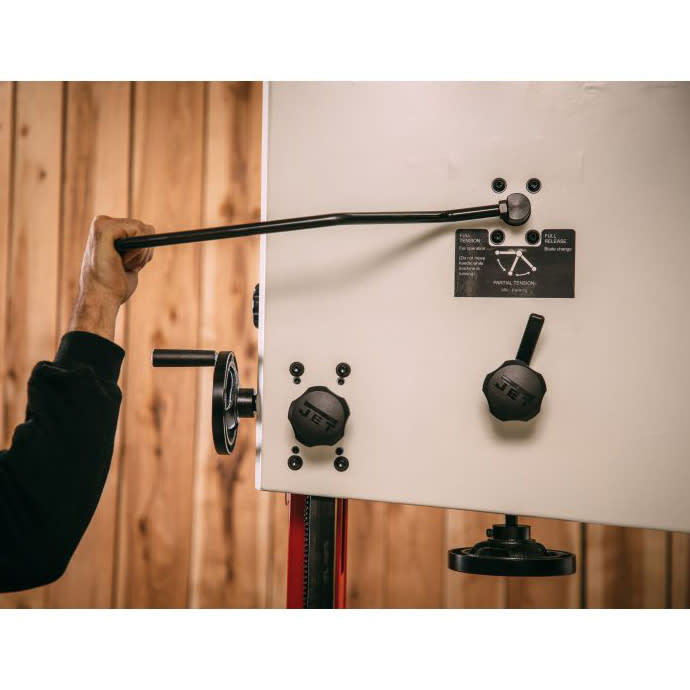

Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release

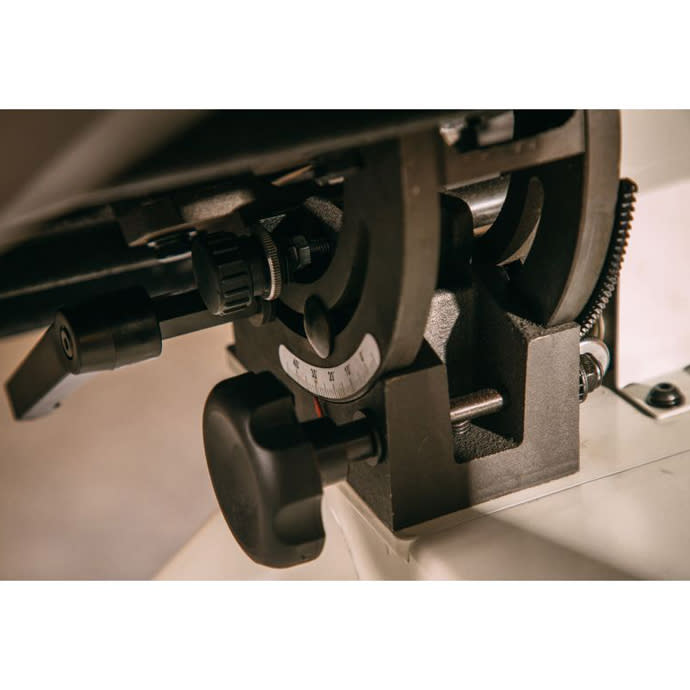

Cast iron trunnion for maximum support and stability
Slotted table allows for front blade removal
Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
Round table insert features leveling screws for precise adjustment

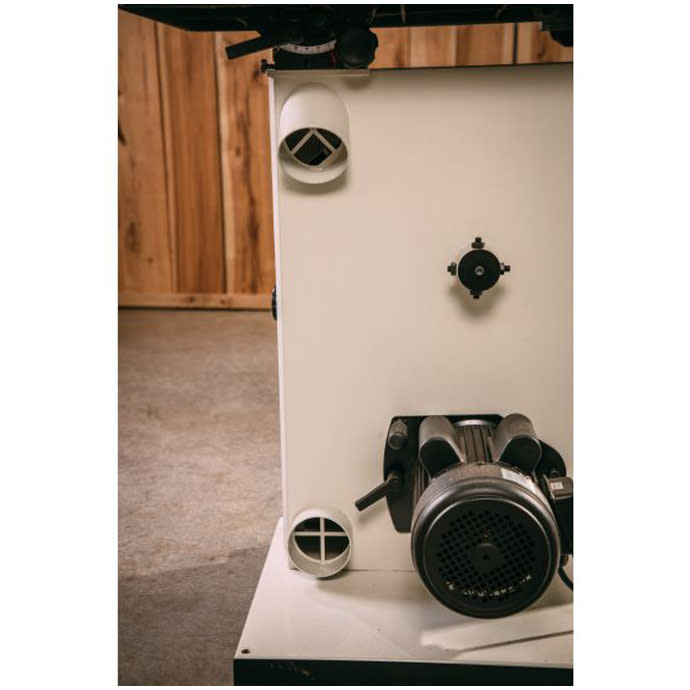

Conveniently located dual 4" dust collection ports catch dust and chips at the source
Table tilts 5° left and 45° right to accommodate a wide variety of cuts
Specifications:
Band Saw Size/Wheel Diameter (In.)

14-3/4
Cutting Capacity Width (In.)

14-1/8
Cutting Capacity Height (In.)

14
Blade Length (In.)

133
Blade Speed (SFPM)

3100
Table Size (L x W) (In.)

21-1/5 x 16 x 2
Blade Width (In.)

1/2", 6TPI
Maximum Saw Blade Width (In.)

1
Minimum Saw Blade Width (In.)

1/8
Table Tilt (Deg.)

-5,45
Table Height from Floor (In.)

35
Dust Collection Minimum CFM Required (CFM)

400
Dust Port Outside Diameter (In.)

4 (x2)
Motor Power (HP)

3
Motor Phase (PH)

1
Motor Voltage (V)

230 only
Motor Amps

12
Recommended Circuit Size (Amps.)

30
