Manufacturer: | Laguna |
Part Number: | MJ8x72P-0130 |
MPN: | MJ8X72P-0130 |

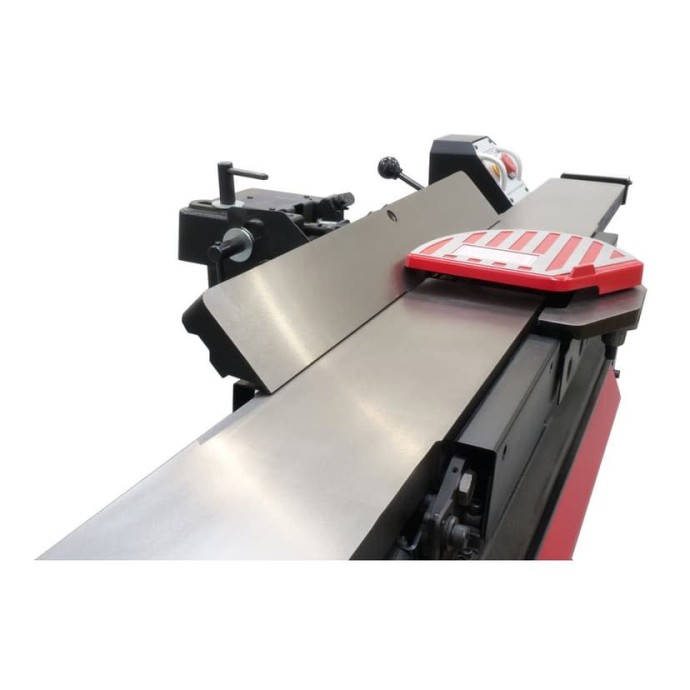

The Laguna JX|8 II Jointer offers a perfect balance of strength, control, and precision. Powered by a 3HP motor and equipped with the ShearTec II spiral cutterhead, it delivers superior cut quality, quiet operation, and advanced user protection—ideal for serious woodworkers and demanding projects.
Key Features & Benefits

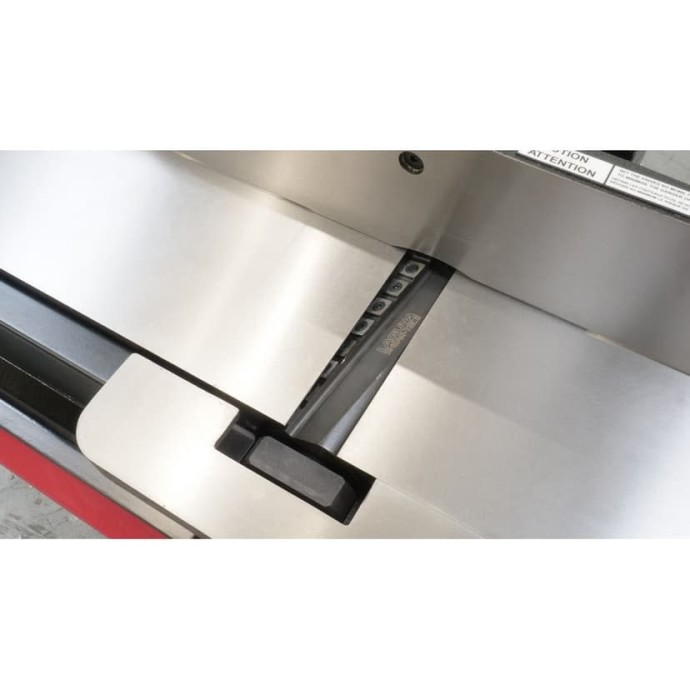

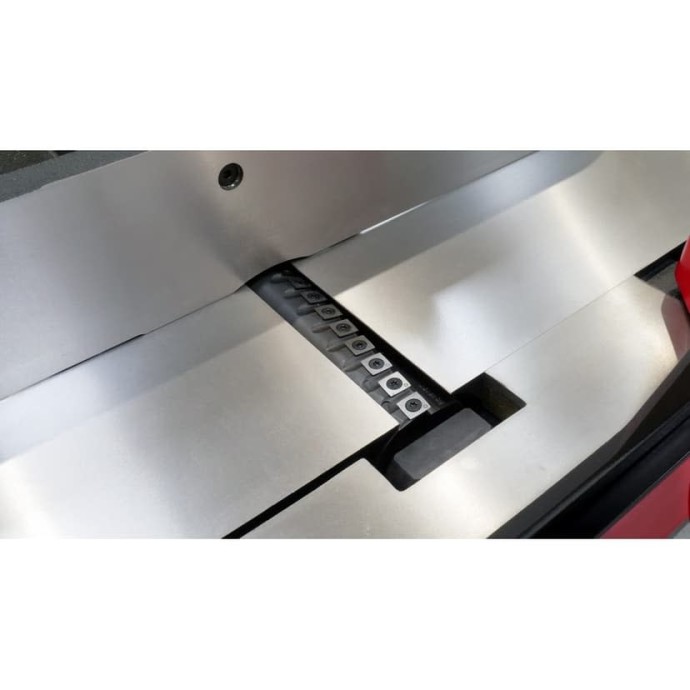

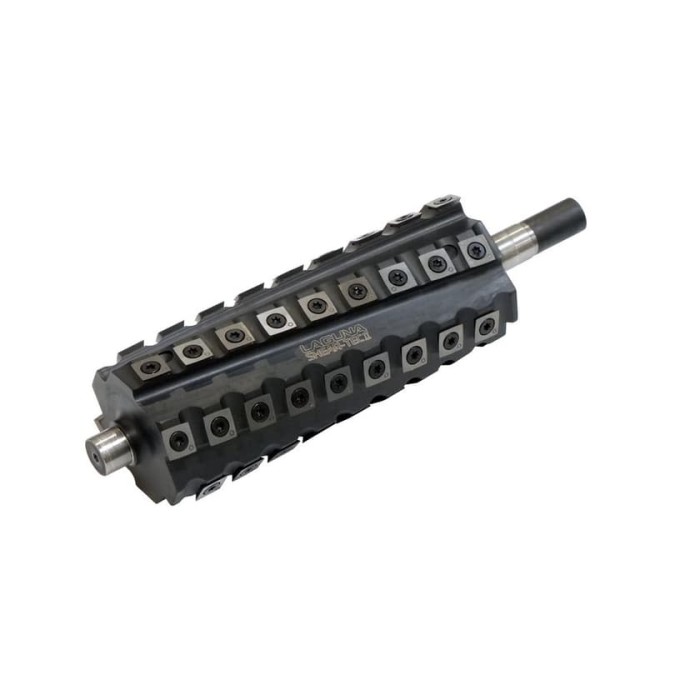

ShearTec II Cutterhead: Superior Finish with Less Noise
• Features durable carbide inserts for smooth, tear-free results
• Low-noise design improves comfort and focus
• Blades are easy to rotate, extending lifespan and reducing maintenance

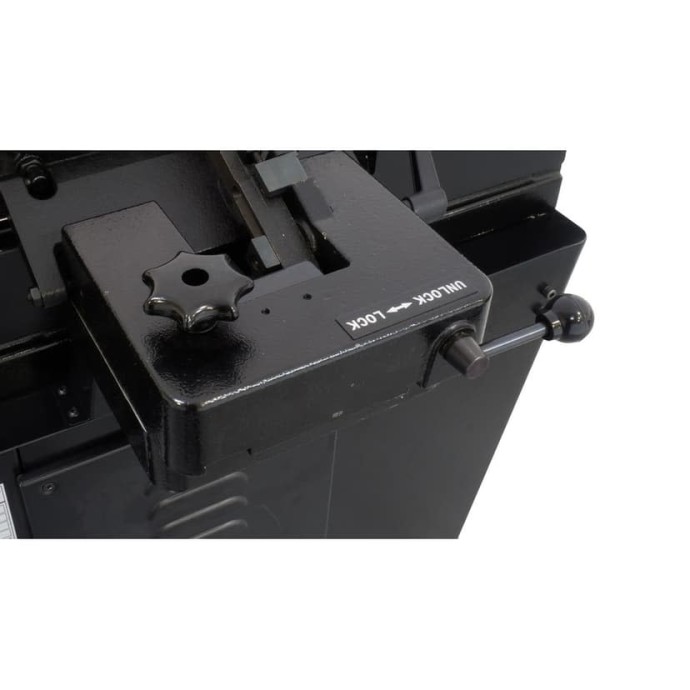

Precision with Parallelogram Table Adjustments
• Arc-style movement ensures consistent cutterhead distance
• Improves accuracy on both short and long runs

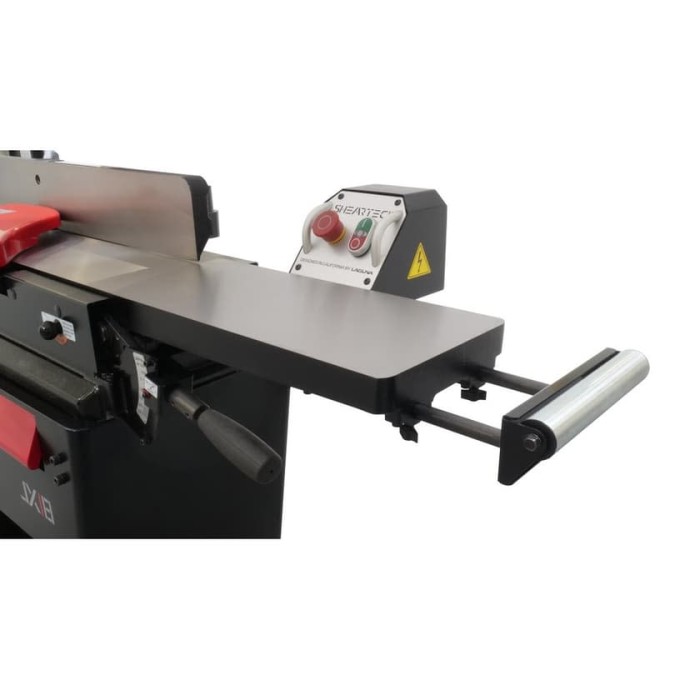

• Integrated infeed roller supports longer stock and prevents sag
Enhanced Safety and Comfort
• Emergency knee-stop bar provides instant machine shutoff without letting go
• Ergonomic base design with toe-kick allows closer positioning for better control
• Cast-iron tables and fence minimize vibration for stable operation
Mobility & Convenience Built In
• Integrated wheel system makes relocating the jointer effortless
• Heavy-duty cast-iron frame provides unmatched stability
• Tool-free setup adjustments simplify daily use
Key Features & Benefits
ShearTec II Cutterhead: Superior Finish with Less Noise
• Features durable carbide inserts for smooth, tear-free results
• Low-noise design improves comfort and focus
• Blades are easy to rotate, extending lifespan and reducing maintenance
Precision with Parallelogram Table Adjustments
• Arc-style movement ensures consistent cutterhead distance
• Improves accuracy on both short and long runs
• Integrated infeed roller supports longer stock and prevents sag
Enhanced Safety and Comfort
• Emergency knee-stop bar provides instant machine shutoff without letting go
• Ergonomic base design with toe-kick allows closer positioning for better control
• Cast-iron tables and fence minimize vibration for stable operation
Mobility & Convenience Built In
• Integrated wheel system makes relocating the jointer effortless
• Heavy-duty cast-iron frame provides unmatched stability
• Tool-free setup adjustments simplify daily use
Downloads
Laguna JX|8 ShearTec: II Jointer Brochure
Specifications
Manufacturer Laguna Part Number MJ8x72P-0130 Manufacturer's Part MJ8X72P-0130 Weight 999,999.000 lbs Working Width 8" Cutterblock Diameter 3-1/8" Cutting Head ShearTec Surfacing Table Length 72" Fence Tilt 45°/90° Cutterhead Speed 5,500 RPM Worktable Dimensions 8" x 72" Max. Cutting Depth 1/8" Motor 220V 3HP 1 Phase 60hz/12 Amp Table Height from Floor 31" Fence Size 38" x 4-3/4" Cast Iron Dust Port 4" Shipping Dimensions 40" x 18" x 26" – 139 lbs.
82" x 25" x 17" – 319 lbs.
(Two Boxes)CSA Yes Infeed Table Pull-Out Extension 8" Rabbetting Capacity 1/2" Safety Bar Shut-Off Yes Bracket To Mount Light No 110V Outlet For Light No Bracket To Mount Feeder No Plug (NEMA 6-20P) Yes No. of Inserts 54 x 4-Sided Carbide, 6 Row Bed Adjustment Parallelogram Approximate Set Up Dimensions 75-1/2" x 26-1/2" Footprint 32-1/2" x 15-1/2"
