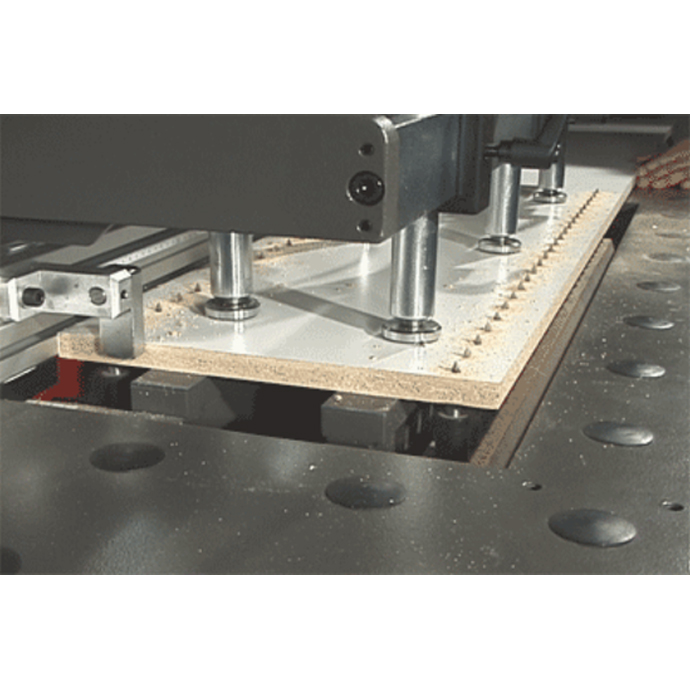

Gannomat Pro-Line 50 line boring machine that has 2 drilling units each with 25 drilling spindles. The drill head on the Pro-Line 50 has low vibration drill heads that help to facilitate and improve half boring as well as thru boring. This high-quality drilling unit drills from the bottom to create precise shelf holes.

• Row of holes as well as line drilling in the SYSTEM 32 mm
• 50 (2 x 25) holes in one drilling cycle
• Drilling depth correction for different drilling depths
• Massive precision drilling unit from GANNOMAT
• Furniture connector and hinge drilling (option)
• Optional 3rd drilling unit

Features

• Operation from the front: Simple and easy access to controls on the front of the machine allows allows for eaiser work with large/long work pieces.
• Start by foot pedal: The foot pedal allows for workpiece to be guided with both hands by the operator.
• Precise offset for line drilling: This unit use tilt-stops and setting gauges for precise line drilling.
• Tool-less mounting of stopping rulers: The operator is able to assemble and dissasemble the stopping ruller without tools.
• Massive and Robust Drilling Unit: The unit is characterized by the high design and wide angle linear guides

Optional Features

• Chip-free through drilling holes through oil brake for shelf holes at center gables is guaranteed by oil brake cylinders and precision drilling unit.
• Half-Open Connectors Drilling of half-open RTA fittings (e.g. Häfele shelf connector Rafix TAB).Two stage drillbit system eliminates the need to remove excess drill-bits.
• Hinges Drilling of hinge holes by mark or with latch stops. Stopping ruler can be turned from the right to left hand for precise drilling of left or right hand doors. Hinges are drilled with a 3-spindle-adapter-drillhead, the boring pattern is according the hinge manufacturer
