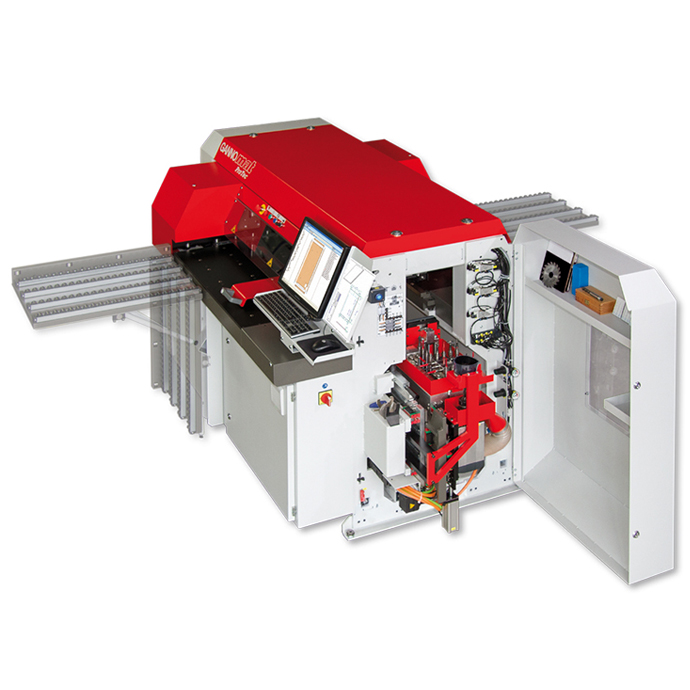

Gannomat ProTec CNC center is a precise machine for complete drilling, grooving, and routing processes. The ProTec is perfect for large and small work pieces. The unit also features an air jet table that is gentle and provides the most precise drilling reference surface.

Features

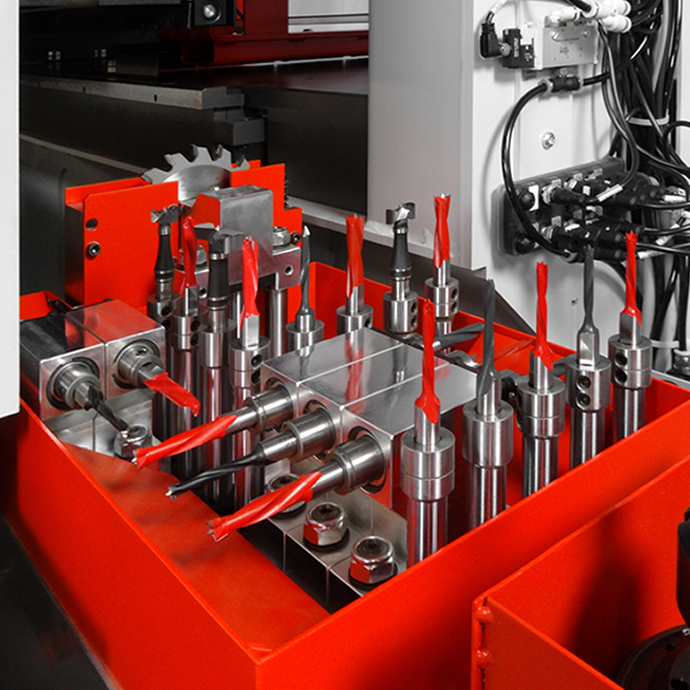

• Precision drilling, grooving and routing for efficient panel and solid wood processing
• Space Requirments: 2200 mm x 1484 mm x 1409 mm. ProTec can be placed at the left side against a wall.
• Workpiece dimensions: Fully automatic workpiece thickness adjustment
  • Width: 60-1000 mm
  • Width: 60-1300 mm (Optional Feature)
  • Length: 250-5600 mm
  • Height: 6-60 mm
  • Workpiece Max. Weight: 75 kg
• A precise routing around at all four edges of the workpiece is given and herewith the full formatting of panel material. Simply programm the the wished excess length.
• Massive supporting table with Air-Jet-Table, the most precise and gentle drilling reference surface
• Vertical Drilling Precision through double laser edge reading
• Horizontal Drilling Precision through workpiece straightening and the 4th axis at the drillhead
• Vertical machining from underneath
• Routing of Lamello P-System pockets for Clamex, Clamex Flexus, Tenso, Bisco, Divario.

Optinal Features

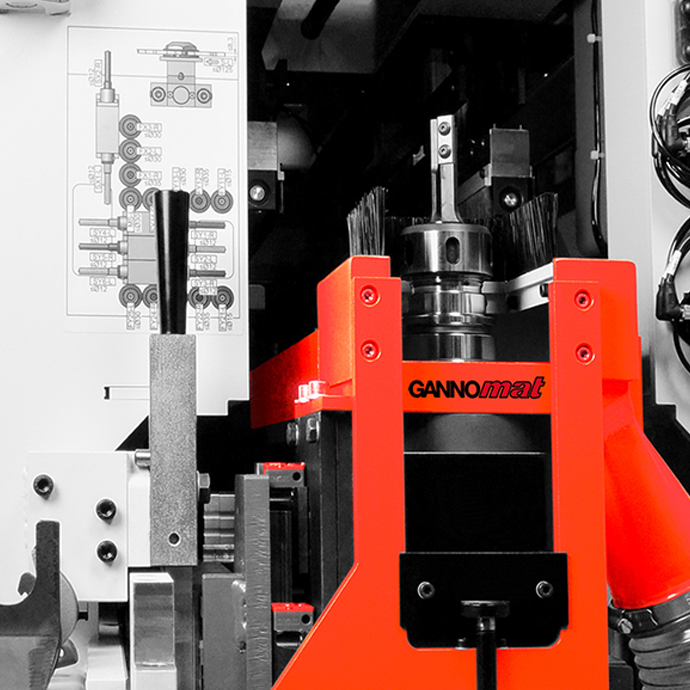

• Routing unit Profit 1 Motor power 4,5 kW (S1=100%) or 5,4 kW (S6=40%), 3000-18000 rpm, tool holder with ER32 collet.
• Routing unit Profit 2 HSK63F for very fast and toolless tool change Motor power 5,5 kW (S1=100%) or 6,6 kW (S6=60%), 1000-20000 rpm, tool holder HSK63F with collet 462E.
• Routing unit Profit 3 HSK63F with 3-fold magazine for automatic tool change Motor power 5,5 kW (S1=100%) or 6,6 kW (S6=60%), 1000-20000 rpm, tool holder HSK63F with collet 462E.
• Lamello P-System Routing of Lamello P-System pockets for Clamex, Clamex Flexus, Tenso, Bisco, Divario
• Roller Table at the Front and at the Back Roller tables for easier loading and unloading of large workpieces, additionally also a reliable and stable guidance is given
• Software and Programming Software and programming options are explained at >Software and Programming< closer
