Product details
| Manufacturer: | Freud |
| Part Number: | 99-861-FRD |
| MPN: | 99-861 |

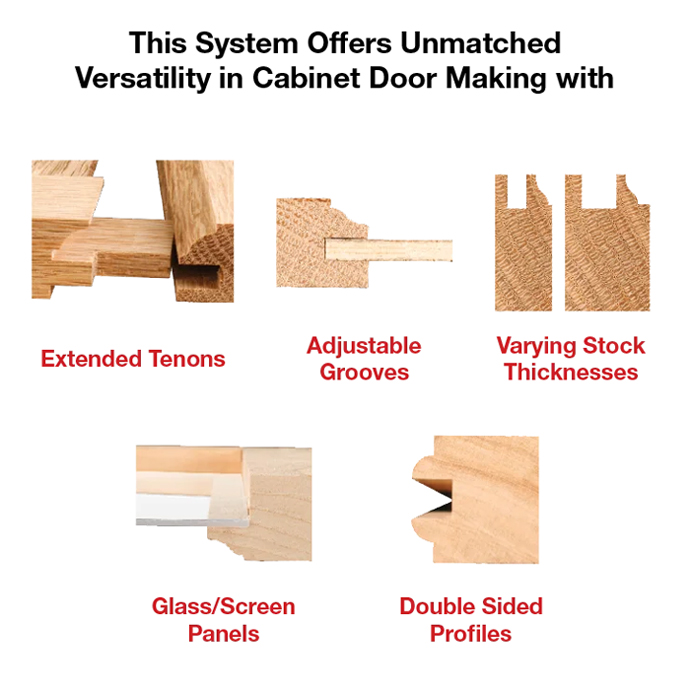

Freud's unique Premier Adjustable Rail and Stile System builds perfect doors in material from 5/8" to 1-1/4" thick, and also features Freud's patented technology for producing extra-strong long tenon joints. The System also includes adjustable shims to adjust the panel groove from 7/32"(5.5mm) for thinner plywood panels to 3/8" (9.5mm) thick for larger solid wood raised panels. Offered in five different profiles to suit any project! For even more versatility, add optional cutters to produce double-sided doors, or the optional cutter for glass and screen door construction. Use in table-mounted routers to mill and hardwood or softwood.

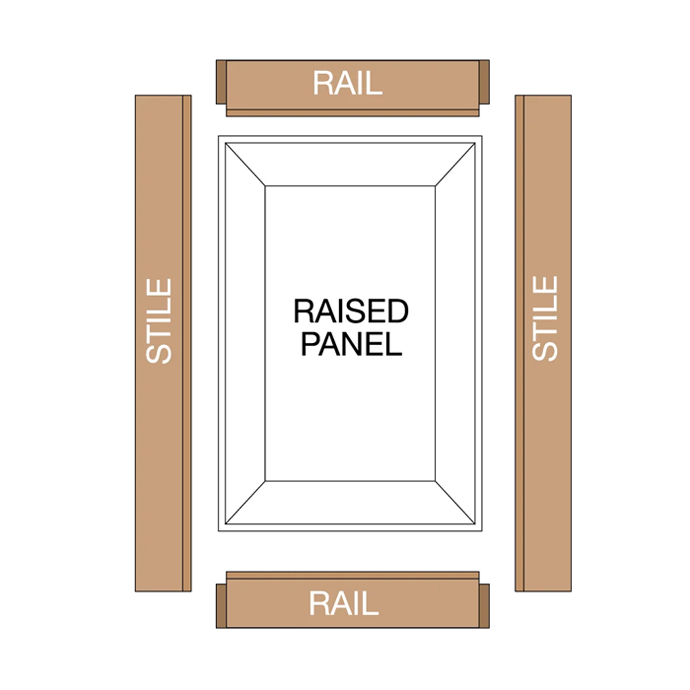

• Build rail and stile doors with your choice of five different profiles with thickness from 5/8" to 1-1/4"

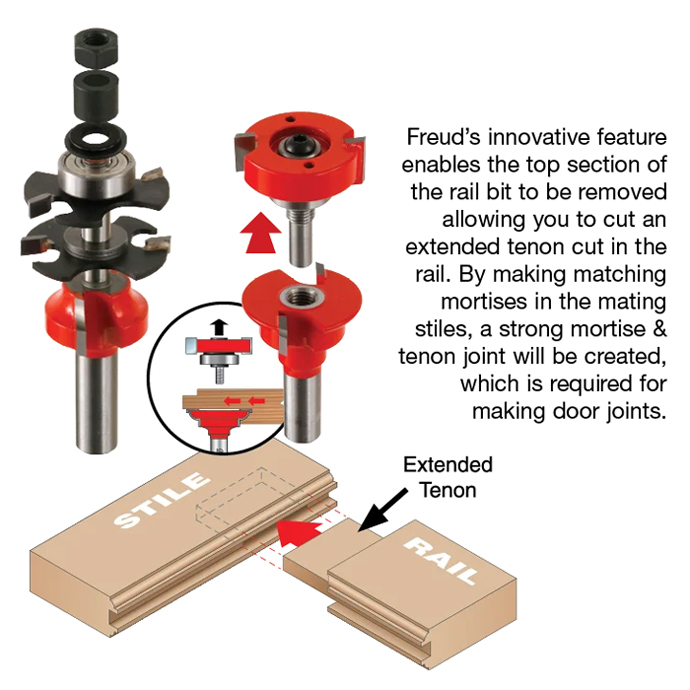

• Patented Extended Tenon Capability for milling extra-strong long tenon joints
• Unique cutter geometry to eliminate tearout
• TiCo™ Hi-Density Carbide to maximize bit life and material finish
• Freud Perma-SHIELD® Coating
Ideal For: producing extra-strong long tenon joints
• Build rail and stile doors with your choice of five different profiles with thickness from 5/8" to 1-1/4"
• Patented Extended Tenon Capability for milling extra-strong long tenon joints
• Unique cutter geometry to eliminate tearout
• TiCo™ Hi-Density Carbide to maximize bit life and material finish
• Freud Perma-SHIELD® Coating
Ideal For: producing extra-strong long tenon joints
This Product may incur additional tariff charges.
Specifications
Manufacturer Freud Part Number 99-861-FRD Manufacturer's Part 99-861 Weight 1.400 lbs UPC/EAN Code 8925087380 Diameter 1-11/16" Overall Length 3-13/16" Type Adjustable Rail & Stile Set Max. RPM 16,000 RPM Large Radius 13/64"
