Product details
| Manufacturer: | Freud |
| Part Number: | 77-202-FRD |
| MPN: | 77-202 |
Compression Spiral bits eliminate chipping on both sides of double-sided veneers or laminated materials for the finest finish. These tools combine up shear and down shear flutes to prevent tear out on either side of the material. They are ideal for routing laminates like double-sided melamine panels, and also cuts well in plywood, hardwood or softwood. For use in CNC, hand-held and table-mounted routers.
• Clean, chip free cuts in double-sided materials
• Combine up shear and down shear cutting action
• Freud Premier Solid Carbide

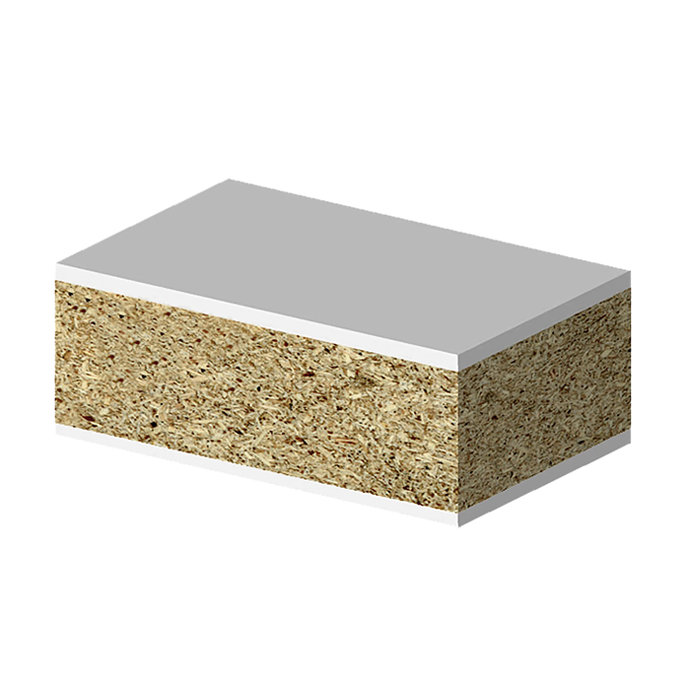

Ideal For: routing laminates like double-sided melamine panels, and also cuts well in plywood, hardwood or softwood
• Clean, chip free cuts in double-sided materials
• Combine up shear and down shear cutting action
• Freud Premier Solid Carbide
Ideal For: routing laminates like double-sided melamine panels, and also cuts well in plywood, hardwood or softwood
Used for Cutting:
Hardwoods
Softwoods
Veneered Plywood
Melamine
Composites
Laminate
Specifications
Manufacturer Freud Part Number 77-202-FRD Manufacturer's Part 77-202 Weight 0.060 lbs UPC/EAN Code 8925059806 Laminate TRUE Diameter 1/4" Shank Diameter 1/4" Overall Length 2-1/2" Type Mortise Compression Material Solid Carbide No. of Cutters 2 Max. RPM 24,000 RPM Carbide Height 7/8"
