| Manufacturer: | Cantek |
| Part Number: | SPL900NDA |
| MPN: | SPL900NDA |
The Cantek SPL900NDA 36" Planer Sander merges planing and sanding into one seamless operation for unparalleled efficiency. Featuring a spiral insert cutterhead, independent sanding motors, and inverter-driven variable feed speed, it’s built for shops that value precision and productivity. This machine combines industrial-grade construction with operator-friendly controls and safety features, making it a smart addition to any woodworking workflow.
Key Features & Benefits

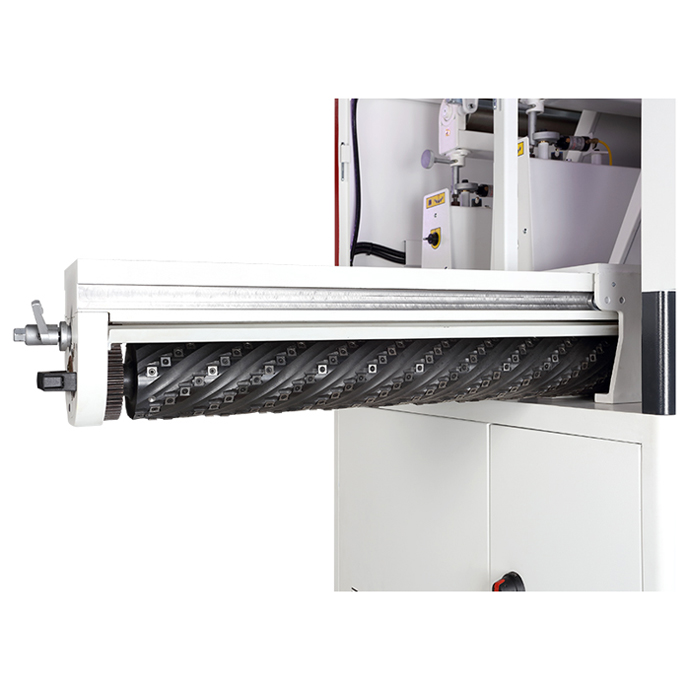

Spiral Insert Cutterhead for Fine Finish and Energy Savings
• Delivers superior stock removal with less horsepower
• Runs quieter than traditional cutterheads for a better working environment
• Requires less maintenance and extends abrasive life
Digital Thickness Control for Precision and Consistency
• Motorized table movement for accurate adjustments
• High-resolution control ensures consistent sanding results
• Easy-to-use digital interface for precise material processing

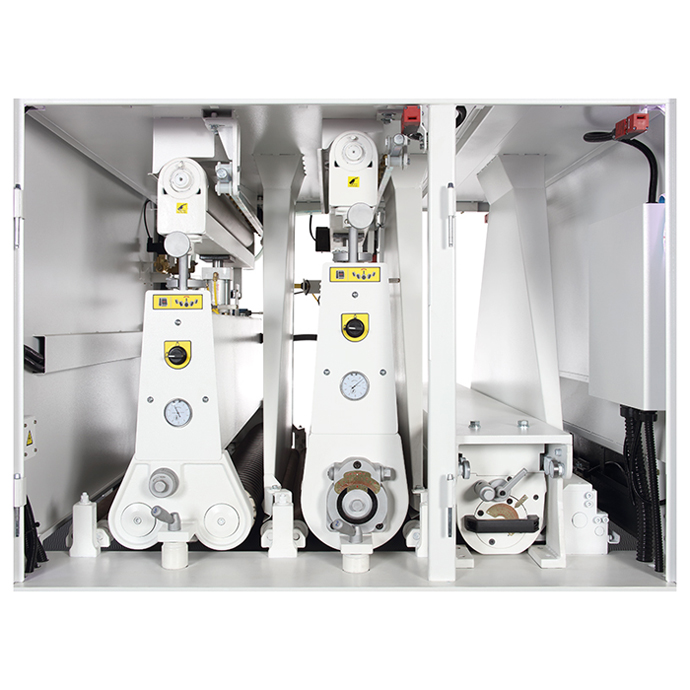

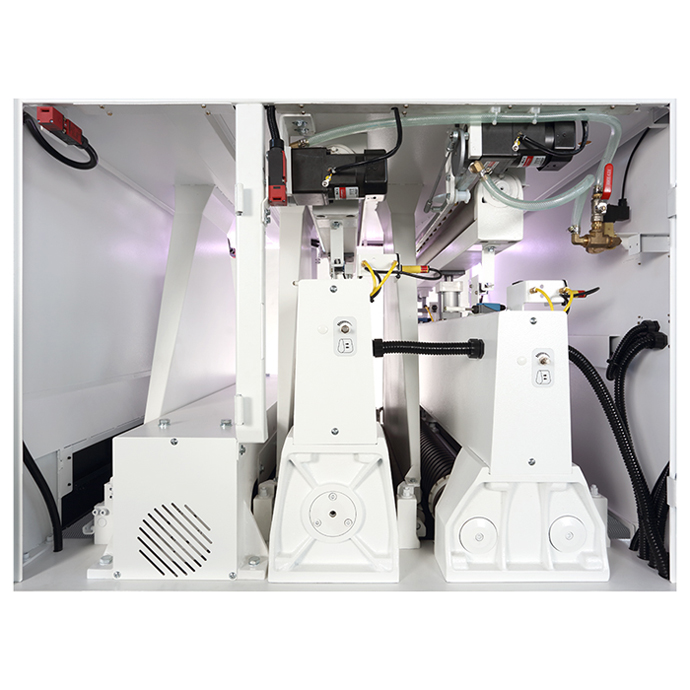

Independent Motors for Enhanced Performance
• Each sanding unit is powered by its own motor for consistent performance
• Allows for precise control and reduces operational strain on motors
• Increases reliability and longevity of the machine
Variable Feed Speed Adjustment for Optimal Results
• Inverter-driven speeds adapt to different materials
• Provides precise control over feed rate for varied sanding applications
• Reduces wear and tear on the machine and enhances efficiency

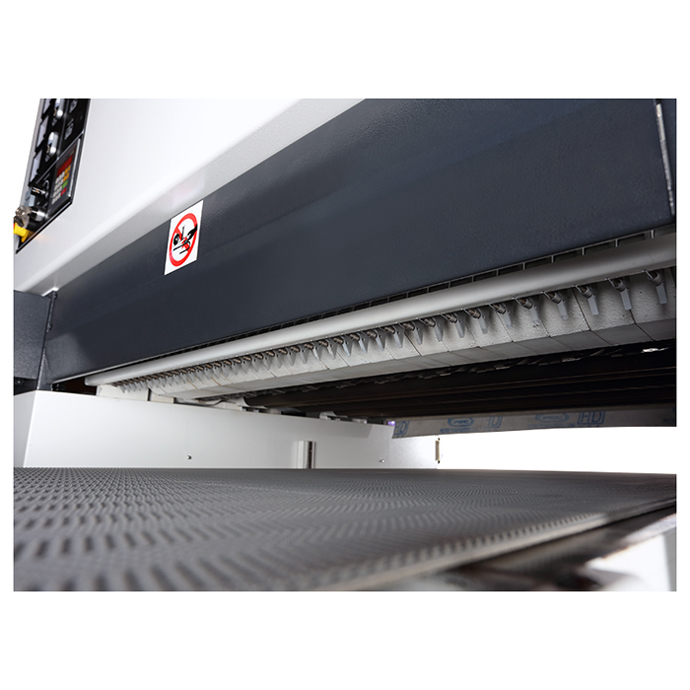

High-Quality Rubber Conveyor Belt and Pneumatic Tracking
• Automatic belt tracking maintains optimal alignment
• High-quality rubber ensures consistent material handling
• Ensures reliable operation and reduces downtime due to belt misalignment
Safety and Convenience Features for Enhanced Operation
• Safety switches on all access doors prevent machine operation when doors are open
• Clear plastic windows offer visibility without interrupting operation
• LED indicators provide real-time machine status for better monitoring
Key Features & Benefits
Spiral Insert Cutterhead for Fine Finish and Energy Savings
• Delivers superior stock removal with less horsepower
• Runs quieter than traditional cutterheads for a better working environment
• Requires less maintenance and extends abrasive life
Digital Thickness Control for Precision and Consistency
• Motorized table movement for accurate adjustments
• High-resolution control ensures consistent sanding results
• Easy-to-use digital interface for precise material processing
Independent Motors for Enhanced Performance
• Each sanding unit is powered by its own motor for consistent performance
• Allows for precise control and reduces operational strain on motors
• Increases reliability and longevity of the machine
Variable Feed Speed Adjustment for Optimal Results
• Inverter-driven speeds adapt to different materials
• Provides precise control over feed rate for varied sanding applications
• Reduces wear and tear on the machine and enhances efficiency
High-Quality Rubber Conveyor Belt and Pneumatic Tracking
• Automatic belt tracking maintains optimal alignment
• High-quality rubber ensures consistent material handling
• Ensures reliable operation and reduces downtime due to belt misalignment
Safety and Convenience Features for Enhanced Operation
• Safety switches on all access doors prevent machine operation when doors are open
• Clear plastic windows offer visibility without interrupting operation
• LED indicators provide real-time machine status for better monitoring
Specifications
Manufacturer Cantek Part Number SPL900NDA Manufacturer's Part SPL900NDA Belt Size 37" x 75" Compressed Air Requirements 85 PSI (6 Kg/cm2) Dimensions 82" x 57" x 77" (2100 X 1455 X 1970 mm) Dust Collection Requirements 4,830 CFM (8,155 M3/HR) Electrical Requirements 230/3/60= 168 FLA Feed Motor 13 - 59 FPM (4 to 18 m/min) Min/Max Working Thickenss 4.7" (120 mm) Min. Part Length 16.9" (430 mm) Motor 30 HP/ 15 HP/ 15 HP No. Of Heads 3 Shipping Dimensions 88" x 70" x 82" (2250 X 1780 X 2100 mm) Table Rise/Fall Motor 0.25 HP Working Width 36" (915 mm)
