Product details
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Manufacturer: | Cantek |
Part Number: | S432 |
MPN: | S432 (3PH) |
The Cantek S432 43″ Wide belt Sander offers powerful dual-head sanding in a compact, shop-friendly design. Engineered for small to mid-sized production facilities, this machine streamlines sanding operations by combining heavy stock removal and fine finishing in a single pass. Its digital control system and robust build quality ensure long-term performance and consistent results.
Key Features & Benefits

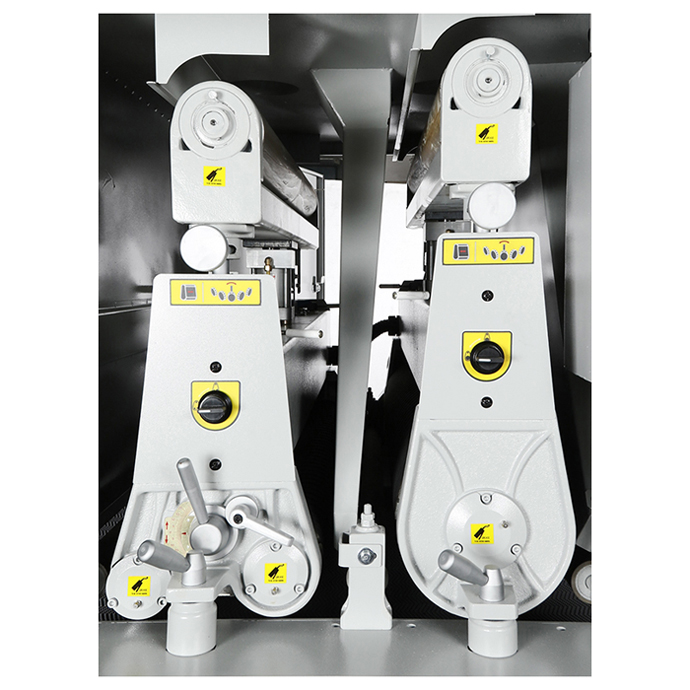

Dual Sanding Heads for Faster Processing

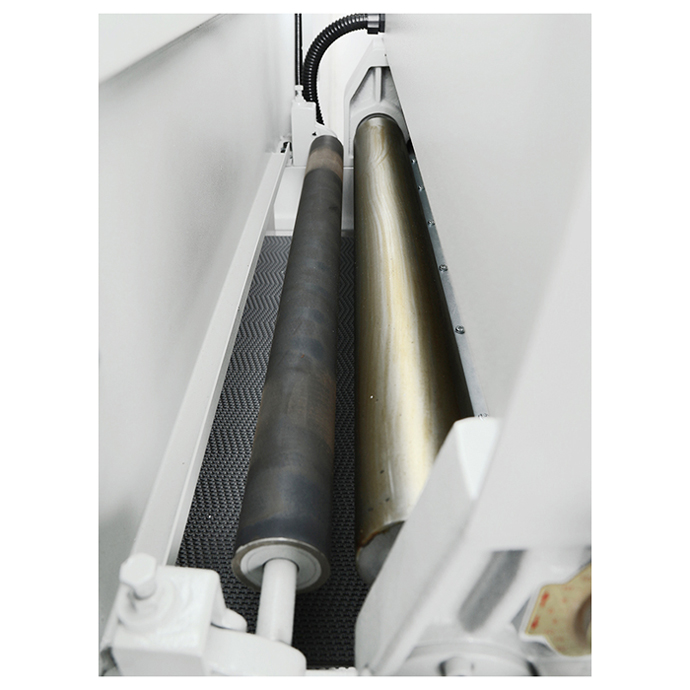

• First head 7″ contact drum for calibration
• Second head 5″ contact drum + 2″ wide platen for final finish
• Increases sanding speed and reduces labor time

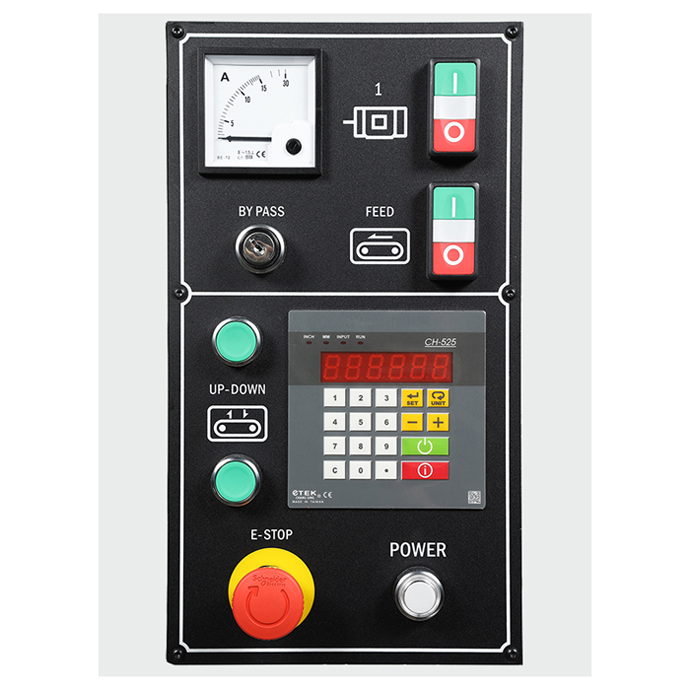

High-Precision Digital Thickness Control
• Input resolutions as fine as 0.001″ / 0.01mm

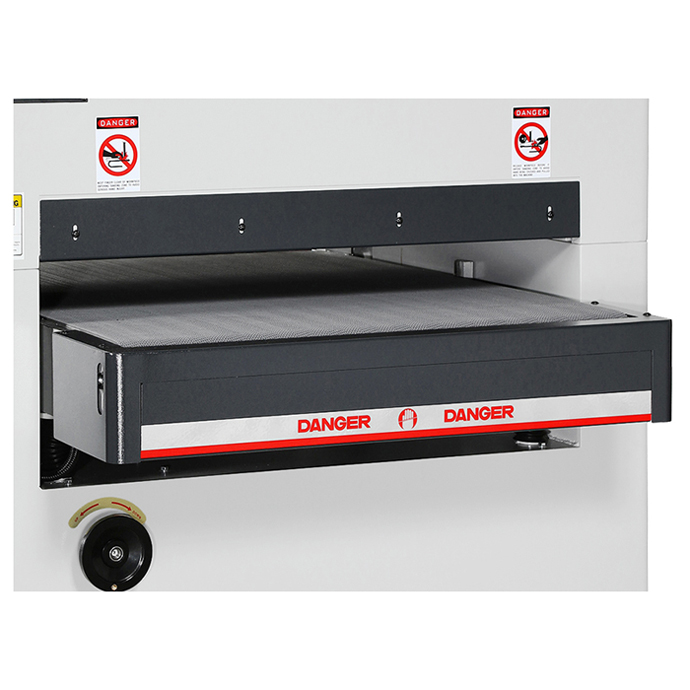

• Motorized table adjusts automatically for consistent sanding depth
• Inch/metric toggle for international flexibility
Superior Finishing with Adjustable Platen
• Adjustable platen allows customization for finer grits
• Suitable for a wide range of materials and applications
• Ensures consistent, high-quality results across different materials
Key Features & Benefits
Dual Sanding Heads for Faster Processing
• First head 7″ contact drum for calibration
• Second head 5″ contact drum + 2″ wide platen for final finish
• Increases sanding speed and reduces labor time
High-Precision Digital Thickness Control
• Input resolutions as fine as 0.001″ / 0.01mm
• Motorized table adjusts automatically for consistent sanding depth
• Inch/metric toggle for international flexibility
Superior Finishing with Adjustable Platen
• Adjustable platen allows customization for finer grits
• Suitable for a wide range of materials and applications
• Ensures consistent, high-quality results across different materials
Specifications
Manufacturer Cantek Part Number S432 Manufacturer's Part S432 (3PH) Belt Size 43" x 60" Compressed Air Requirements 70 PSI Compressed Air Volume 12 CFM (0.35M3/Min) Dust Collection Requirements 3825 CFM (6500 M3/HR) Electrical Requirements 230/3/60 = 70 Amps Feed Belt Speed 15 - 49 FPM (4 to 15 m/min) Feed Motor 2 HP Machine Dimensions 60" x 61" x 64" (1540 x 1555 x 1630 mm) Min/Max Working Thickenss 5.9" (150 mm) Min. Part Length 12.5" (320 mm) Motor 25 HP No. Of Heads 2 Pass Line Height 37" (920 mm) Phase 3 Shipping Dimensions 62" x 64" x 76" (1600 x 1640 x 1940 mm) Table Rise/Fall Motor 0.25 HP Working Width 42" (1066 mm)
