Product details
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
| Manufacturer: | Cantek |
| Part Number: | S431 |
| MPN: | S431 (3PH) |
The Cantek S431 43" Wide belt Sander delivers reliable, high-quality sanding performance in a compact and cost-effective design. Featuring a combination sanding unit and precise digital thickness control, it provides consistent results for both calibration and finish sanding. Designed for space-conscious workshops, this sander offers industrial-grade capability at an accessible price.
Key Features & Benefits
Combination Sanding Unit for Versatility

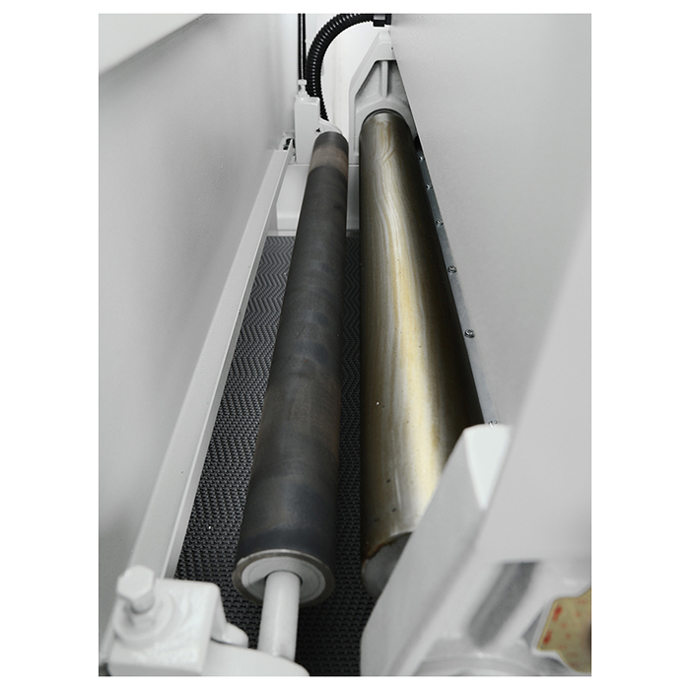

• 5" rubber contact drum for calibration sanding
• 2" wide sanding platen for fine finishing
• Handles a variety of applications with one machine
Digital Thickness Control for Accuracy
• Inch/metric options with motorized table movement
• Quick, consistent thickness adjustments minimize downtime
• Enhances sanding repeatability across multiple jobs
Compact Footprint with Robust Construction
• Space-saving design ideal for smaller shops
• Heavy-duty build ensures stability and longevity
• Perfect balance of power and performance
Enhanced Performance & Maintenance

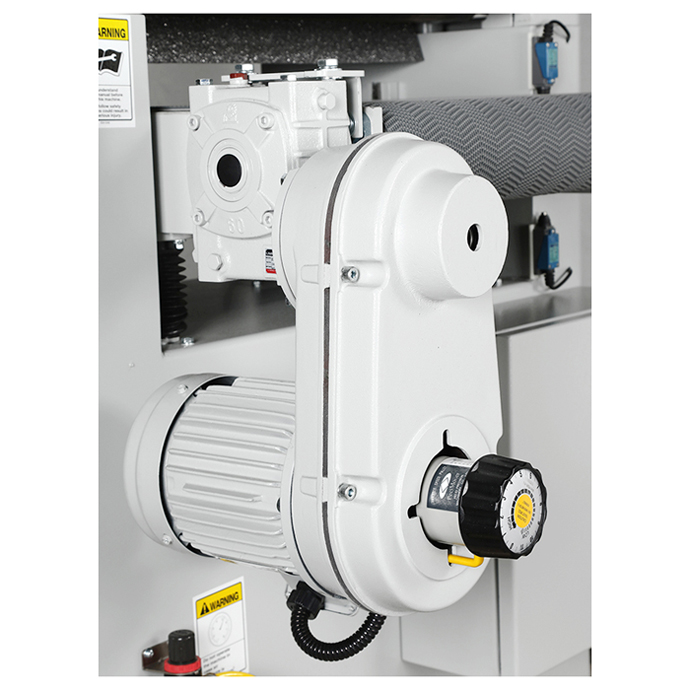

• Variable feed speed for material flexibility

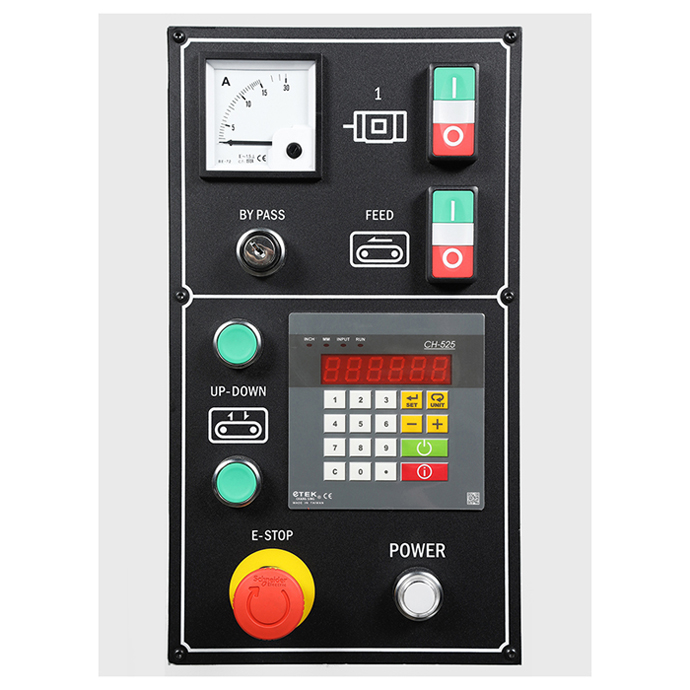

• Electronic belt tracking and ammeter for load monitoring

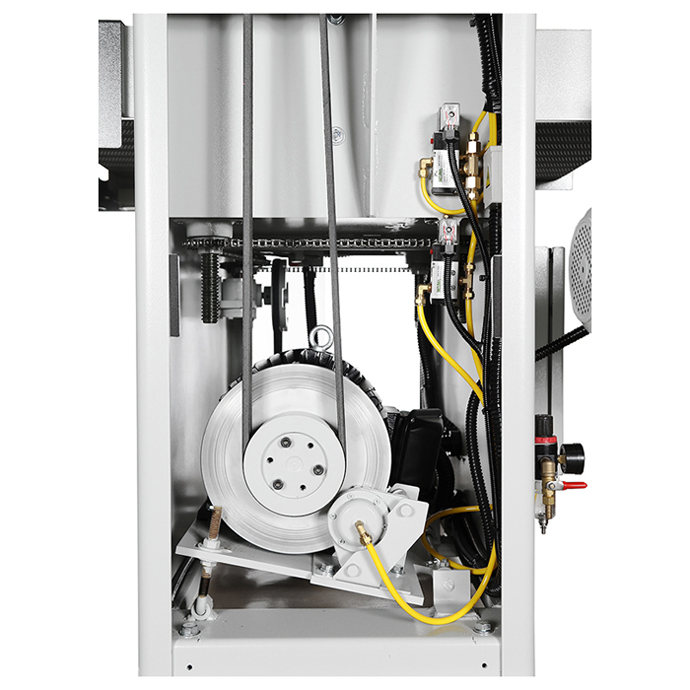

• Disc brake and pneumatic tensioning for quick belt changes
User Safety & Easy Adjustments
• Interlocked access doors prevent unsafe operation
• Precision jackscrews allow smooth, accurate table height control
• Table raising jackscrews ensure smooth operation and easy height adjustments
Key Features & Benefits
Combination Sanding Unit for Versatility
• 5" rubber contact drum for calibration sanding
• 2" wide sanding platen for fine finishing
• Handles a variety of applications with one machine
Digital Thickness Control for Accuracy
• Inch/metric options with motorized table movement
• Quick, consistent thickness adjustments minimize downtime
• Enhances sanding repeatability across multiple jobs
Compact Footprint with Robust Construction
• Space-saving design ideal for smaller shops
• Heavy-duty build ensures stability and longevity
• Perfect balance of power and performance
Enhanced Performance & Maintenance
• Variable feed speed for material flexibility
• Electronic belt tracking and ammeter for load monitoring
• Disc brake and pneumatic tensioning for quick belt changes
User Safety & Easy Adjustments
• Interlocked access doors prevent unsafe operation
• Precision jackscrews allow smooth, accurate table height control
• Table raising jackscrews ensure smooth operation and easy height adjustments
Specifications
Manufacturer Cantek Part Number S431 Manufacturer's Part S431 (3PH) Belt Size 43" x 60" Compressed Air Requirements 60 PSI Compressed Air Volume 7 CFM (0.2M3/Min) Dust Collection Requirements 2118 CFM (3600 M3/HR) Feed Belt Speed 15 - 60 FPM (4 to 18 m/min) Feed Motor 2 HP Machine Dimensions 60" x 50" x 64" (1525 x 1270 x 1630 mm) Min/Max Working Thickenss 5.9" (150 mm) Min. Part Length 12.5" (320 mm) Motor 20 HP No. Of Heads 1 Phase 3 Shipping Dimensions 52" x 64" x 76" (1330 x 1640 x 1940 mm) Table Rise/Fall Motor 0.25 HP Working Width 43" (1092 mm)
Key Features & Benefits
Combination Sanding Unit for Versatility
• 5\" rubber contact drum for calibration sanding
• 2\" wide sanding platen for fine finishing
• Handles a variety of applications with one machine
Digital Thickness Control for Accuracy
• Inch/metric options with motorized table movement
• Quick, consistent thickness adjustments minimize downtime
• Enhances sanding repeatability across multiple jobs
Compact Footprint with Robust Construction
• Space-saving design ideal for smaller shops
• Heavy-duty build ensures stability and longevity
• Perfect balance of power and performance
Enhanced Performance & Maintenance
• Variable feed speed for material flexibility
• Electronic belt tracking and ammeter for load monitoring
• Disc brake and pneumatic tensioning for quick belt changes
User Safety & Easy Adjustments
• Interlocked access doors prevent unsafe operation
• Precision jackscrews allow smooth, accurate table height control
• Table raising jackscrews ensure smooth operation and easy height adjustments" data-product-image-url="https://www.wurthbaermachinery.com/images/P/S431_1.jpg" data-insert-after="" defer>
