Manufacturer: | Cantek |
Part Number: | MX370M |
MPN: | MX370M (3PH) |
The Cantek MX370M Automatic Edgebander is an affordable, entry-level solution designed to meet the edge banding needs of small shops. With integrated pre-milling and corner rounding functions, this machine provides superior edge quality while minimizing manual rework. The compact design, combined with versatile features such as flush trimming, PVC scraping, and buffing, makes it a top choice for achieving clean, precise edges on cabinet doors and furniture.
Key Features & Benefits
Compact Design with Dual Functionality for Better Space Efficiency

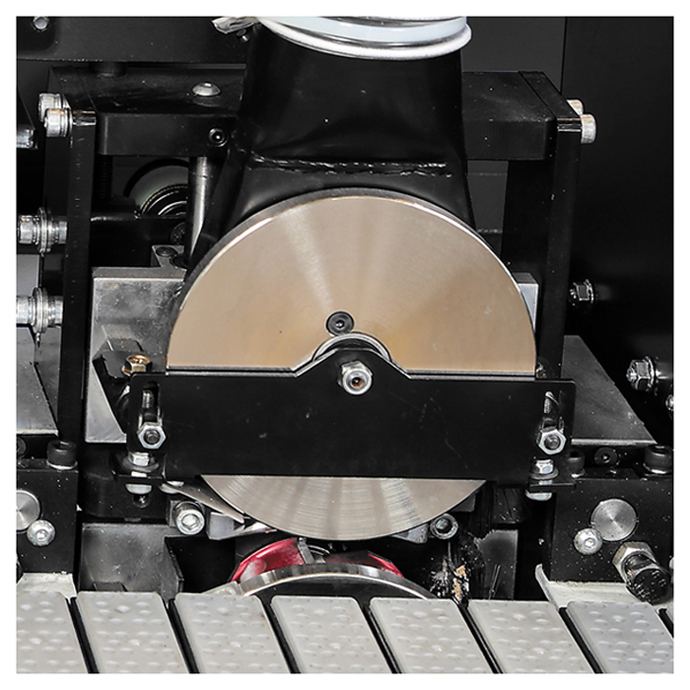

• The dual-purpose end trim and corner rounding unit saves valuable shop space
• Perfect for small workshops that require efficient edge banding solutions

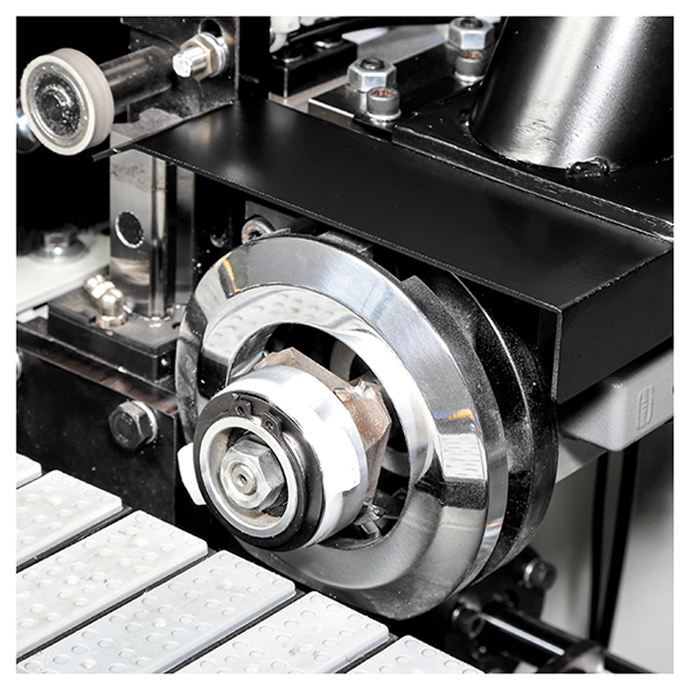

• Reduces the need for manual rework thanks to automatic corner rounding
Pre-Milling for Precise Edge Quality

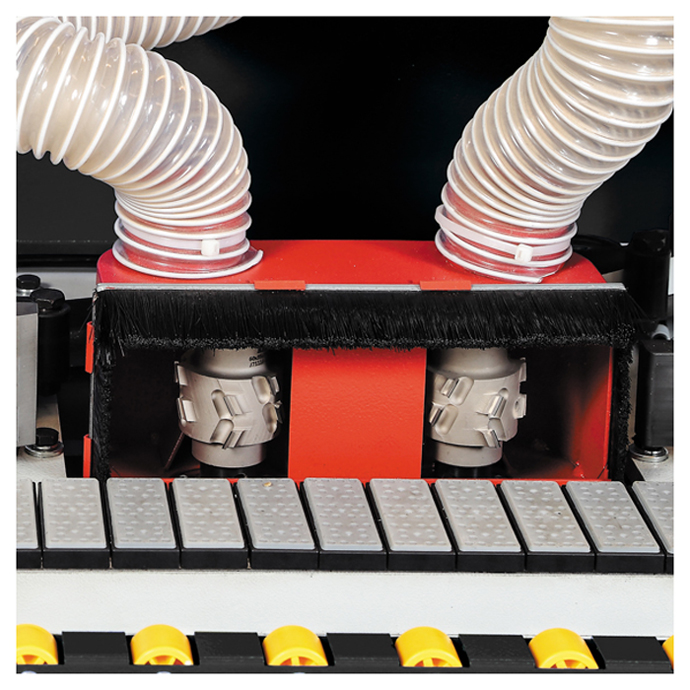

• Diamond counter-rotating milling heads ensure precise squareness of the panel
• Minimizes visible glue joints with optimal edge preparation
• Provides a smooth and clean panel for perfect edge tape application
User-Friendly Controls for Efficient Operation

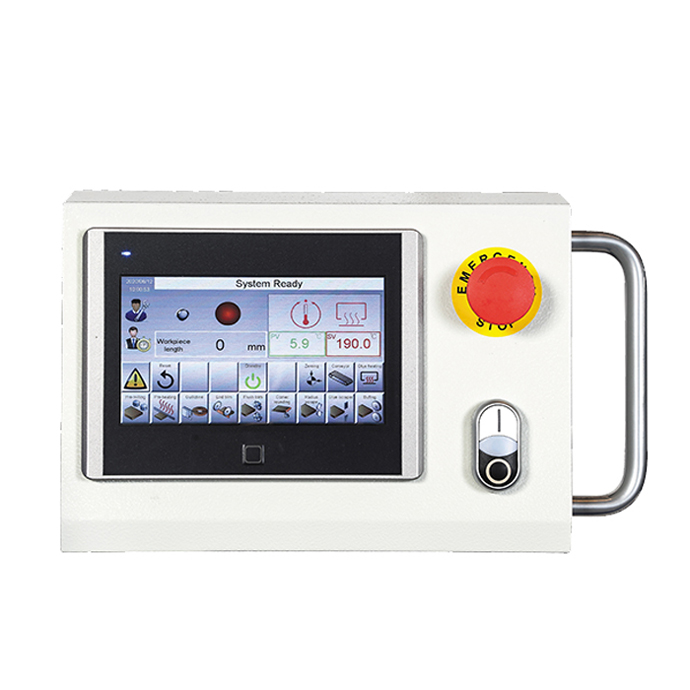

• The 7" touch screen interface allows easy operation and quick adjustments
• Adjustable settings for glue temperature and unit selection
• Tracks workpiece length, number of pieces, and machine hours for better productivity
Key Features & Benefits
Compact Design with Dual Functionality for Better Space Efficiency
• The dual-purpose end trim and corner rounding unit saves valuable shop space
• Perfect for small workshops that require efficient edge banding solutions
• Reduces the need for manual rework thanks to automatic corner rounding
Pre-Milling for Precise Edge Quality
• Diamond counter-rotating milling heads ensure precise squareness of the panel
• Minimizes visible glue joints with optimal edge preparation
• Provides a smooth and clean panel for perfect edge tape application
User-Friendly Controls for Efficient Operation
• The 7" touch screen interface allows easy operation and quick adjustments
• Adjustable settings for glue temperature and unit selection
• Tracks workpiece length, number of pieces, and machine hours for better productivity
Specifications
Manufacturer Cantek Part Number MX370M Manufacturer's Part MX370M (3PH) Weight 1,507.000 lbs Buffing 2800 RPM Compressed Air Requirements 8.83 CFM (250 liters/min) Edge Thickness 0.0158"~0.118" (0.4 ~ 3 mm) Electrical Requirements 230/3/60 = 19 Amps End Trim/Corner Rounding 12000 RPM Extensible Support Width 22" (560 mm) Feed Speed 23 FPM Machine Weight 1067 lbs Max. Machine Dimension 130" x 47-1/4" x 47-1/4" Min. Panel Length 6.7" (170 mm) Min. Panel Width 3.54" (90 mm) Panel Thickness 0.472~1.77" Pre-Milling Spindle Speed 12000 RPM Shipping Weight 1507 lbs Top & Bottom Trimmer 10500 RPM Working Table Height 33.7" (856 mm)
