The Cantek GT610HI Shaft Drive Double Surface Planer delivers high-speed performance with unmatched precision. With a powerful cardan shaft feed system, durable cast-iron construction, and spiral insert knife cutterheads, this 24" planer is engineered for demanding applications. Operators benefit from fine-tuned digital thickness settings and robust motor output for continuous, high-volume operations.

Key Features & Benefits
High-Speed Feed System for Increased Productivity

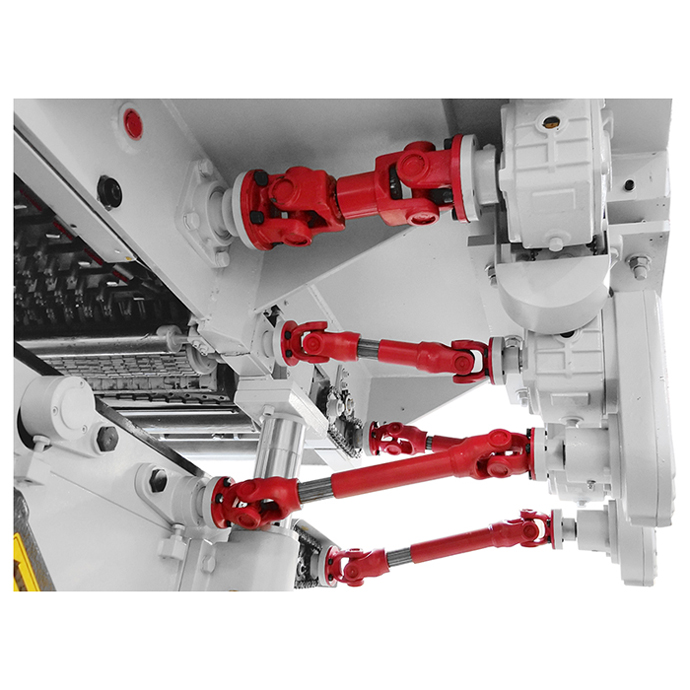

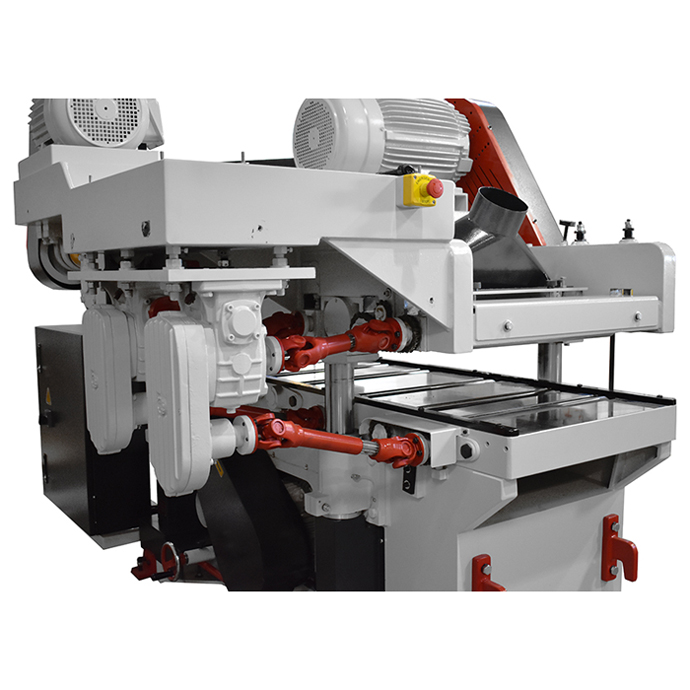

• The full cardan shaft feed drive enables a feed rate of up to 98' per minute, keeping up with high production demands

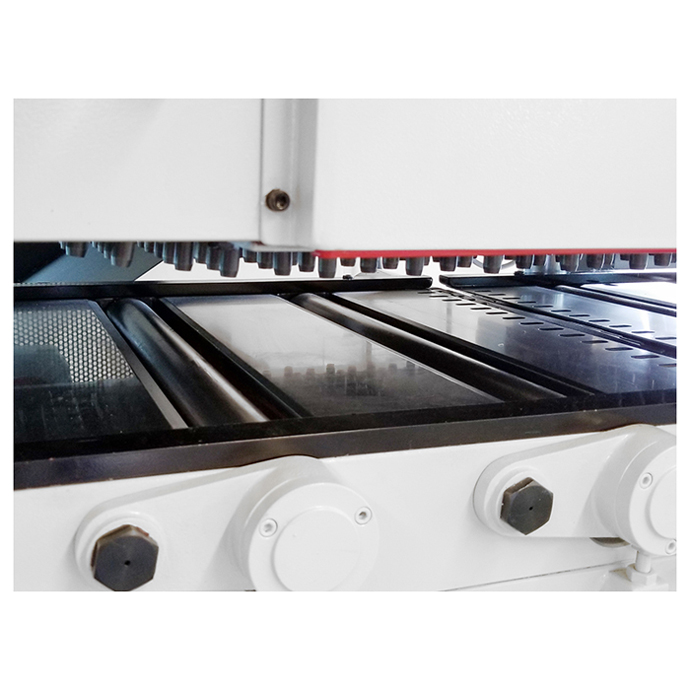

• Three driven bed rollers ensure consistent material movement even with heavier or longer stock

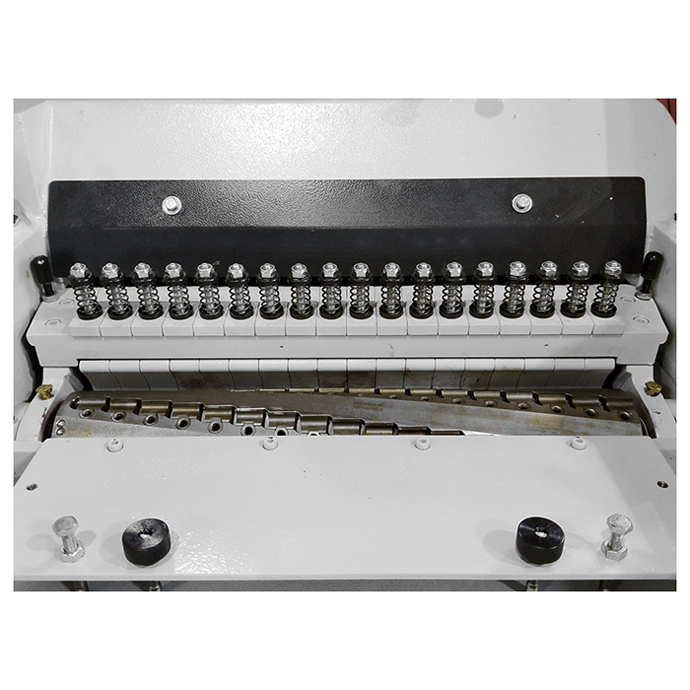

• Sectional serrated infeed roll before the top cutterhead guarantees a reliable, smooth start to every pass

Precision Cutterheads Deliver Cleaner, Quieter Cuts
• Spiral insert knife cutterheads with six rows of two-sided 30 x 12 x 2.5 mm carbide inserts provide a premium surface finish
• Reduces machine load and operating noise, increasing efficiency and comfort
• The steel spiral heads are mounted in precision ABEC 7 RHP bearings for maximum stability and longevity

Digital Controls for Accurate Thickness Settings
• Digital thickness control ensures precise adjustments down to +/- 0.002"

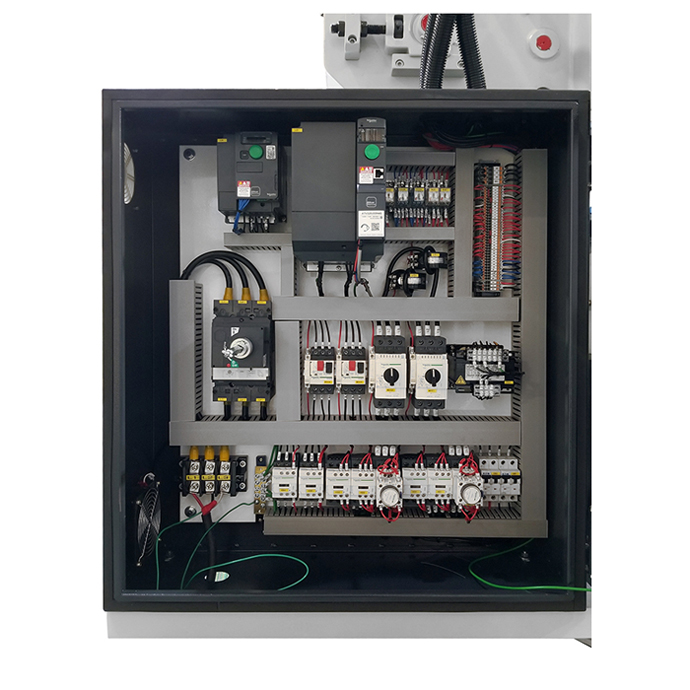

• Swivel-mounted control panel makes access ergonomic and efficient
• Individual ammeters help operators monitor motor load, while a built-in hour meter aids in maintenance planning

Durable Design for Continuous Industrial Use
• Cast-iron machine frame offers excellent vibration damping, enhancing cutterhead life and cut quality
• Chrome-plated top and bottom tables resist wear and maintain accuracy over time
• The upper assembly adjusts via four large-diameter posts for stable, even height changes

Optimized Stock Removal and Feed Consistency

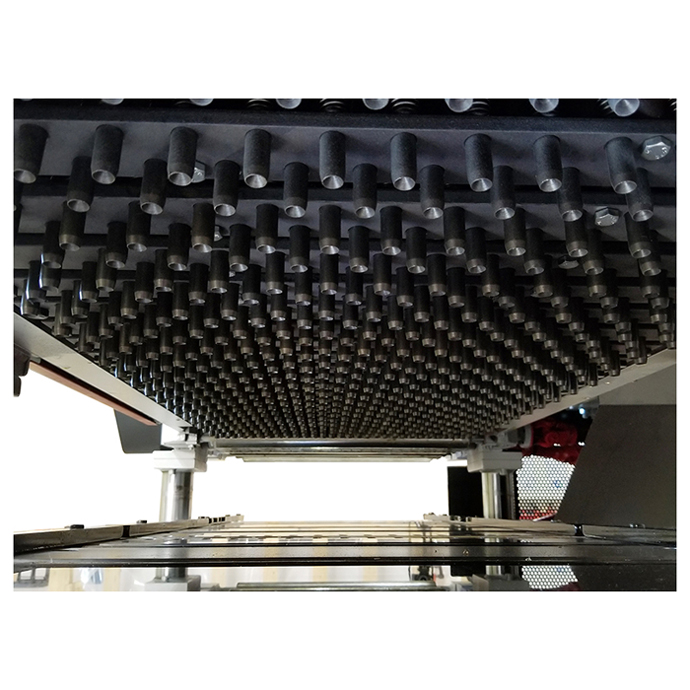

• Material is first passed over the bottom jointing head using a spring-loaded pin feed system, ensuring it’s perfectly flat before planing to final thickness

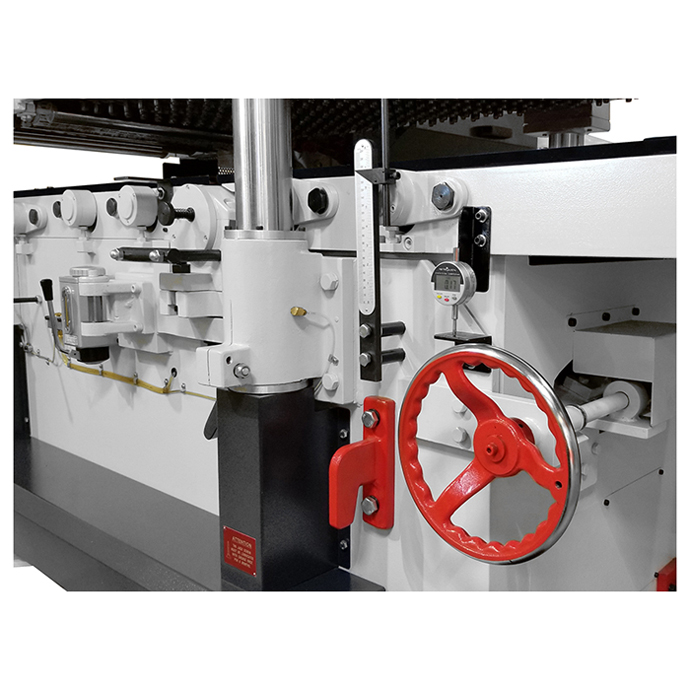

• The adjustable infeed bed allows you to dial in how much material is removed on the bottom pass

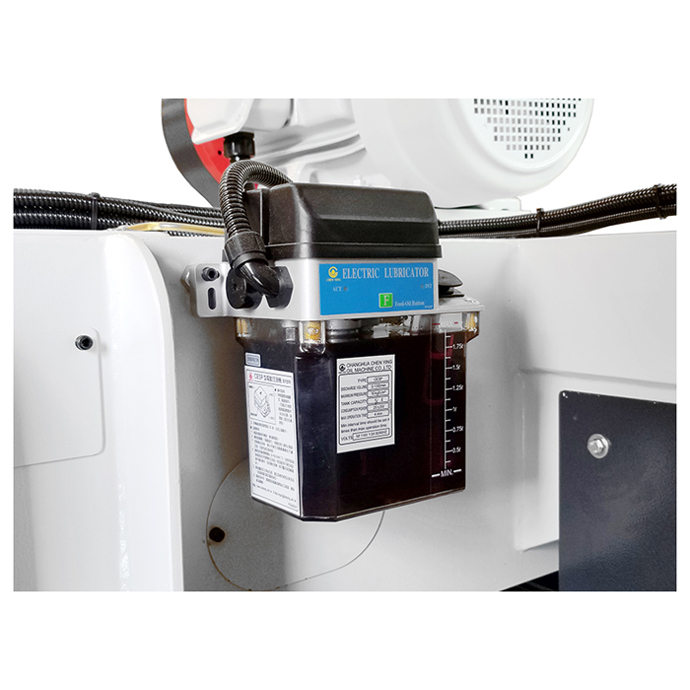

• Automatic conveyor lubrication keeps the feed system running smoothly with minimal downtime
