Cantek MX340M automatic edgebander is an entry level edgebander that is equipped with end trimming, flush trimming, PVC scraping, and buffing. It has user friendly controls and adjustments. The MX340M provides the perfect blend of quality and affordability.

Features

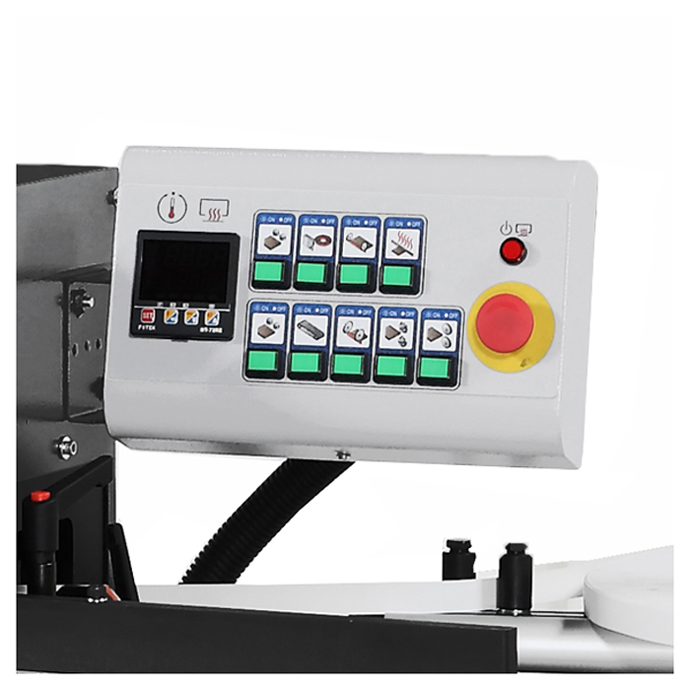

• PLC control system with LED display and keypad

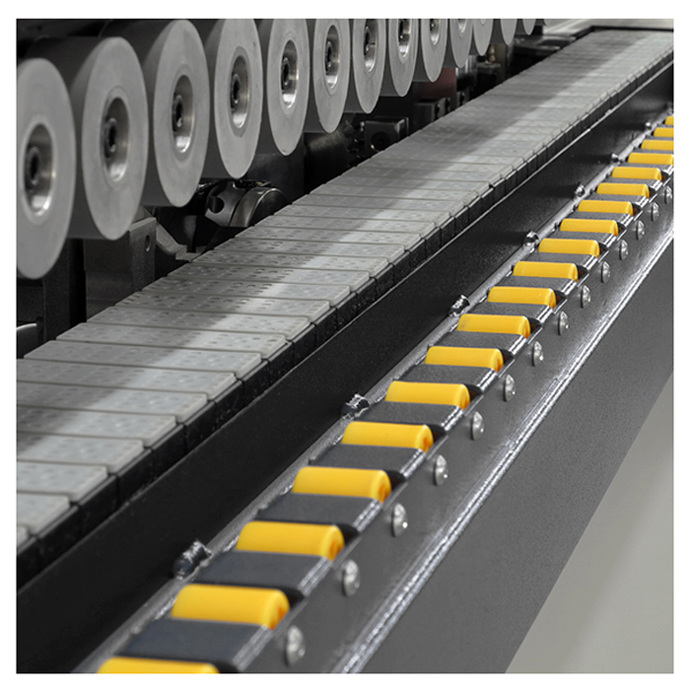

• Workpiece is fed by chain

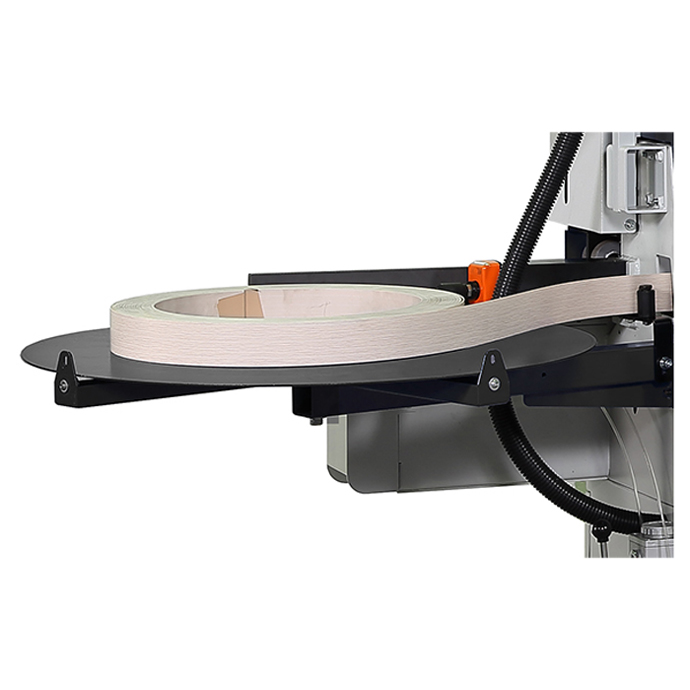

• Edge coil support plate: Ø 800 mm (31.5″), for PVC/ABS
• Automatic edge feeding with a thickness capacity of 0.4-3 mm
• Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears
• 2.64 lb Teflon-coated hot-melt glue pot

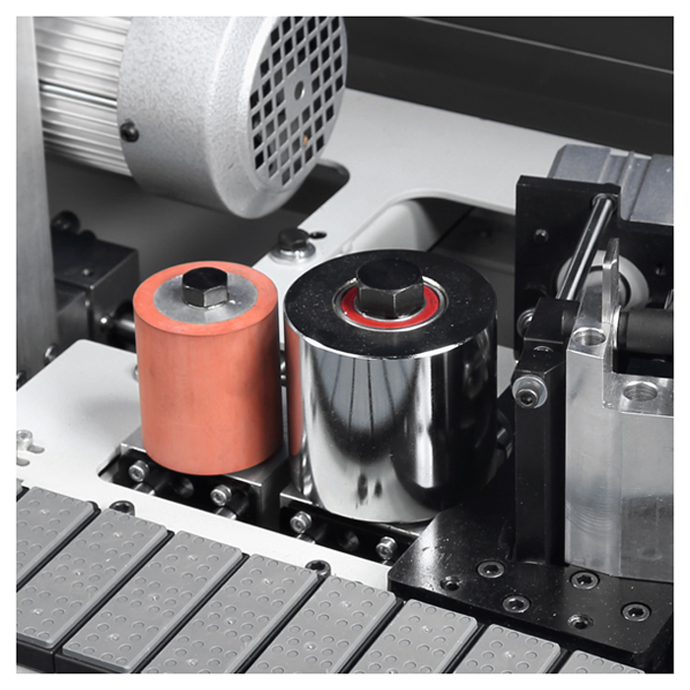

• Spring loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
• Heavy duty pressure beam with extendable work-piece support
• Heated infeed fence for pre-heating the panel for optimum glue penetration
• Mechanical digital readouts for convenient and quick adjustment to the working units & thickness

Working Units

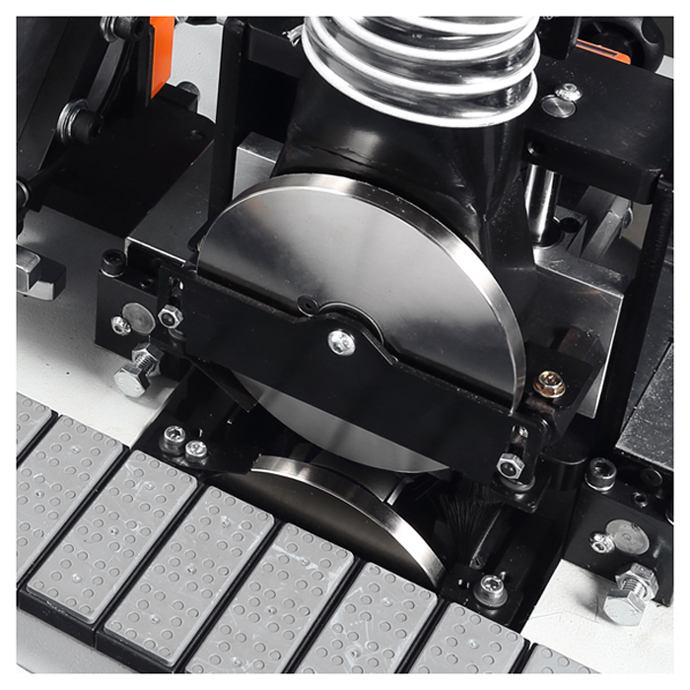

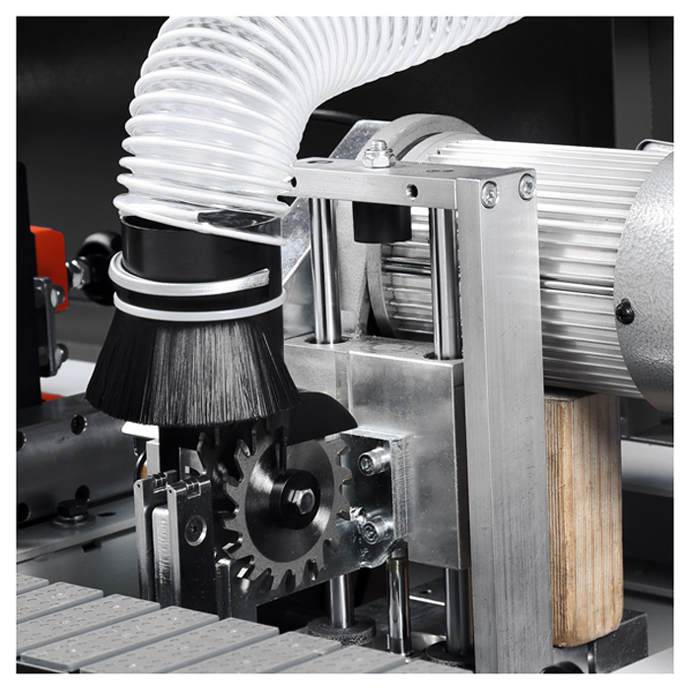

• End Trim: 8800 RPM dual saw blade, 3.15"
• Top & Bottom Trim: 10,500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming
• Radius Scraping: with 2 mm radius knives can be easily excluded when not required

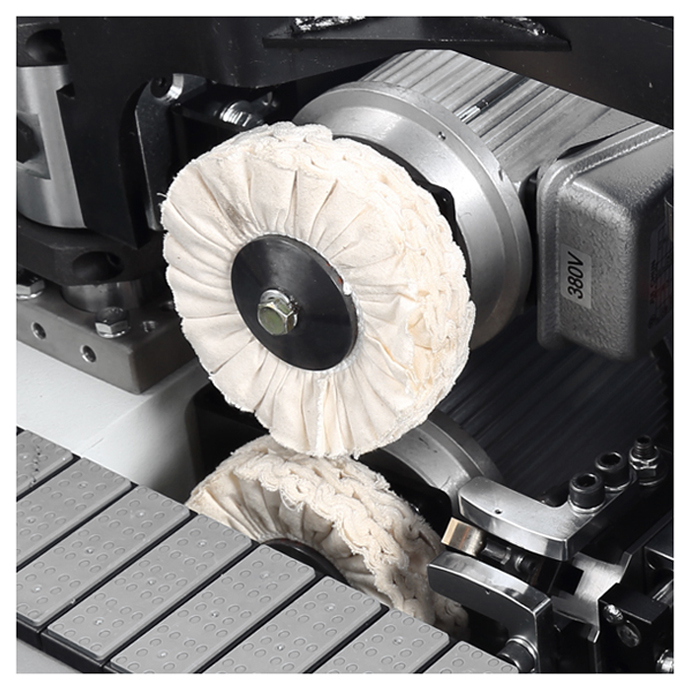

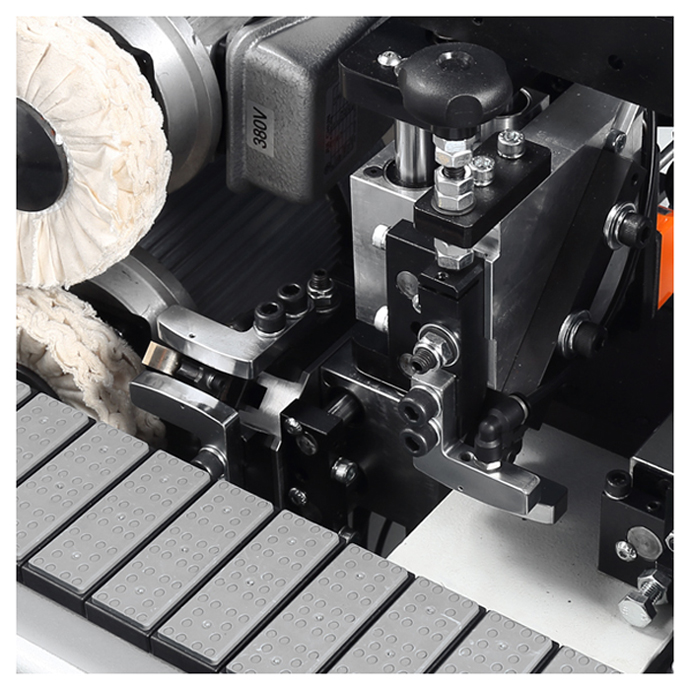

• Buffing: 2,800 RPM top & bottom buffing units to polish the machined edge
