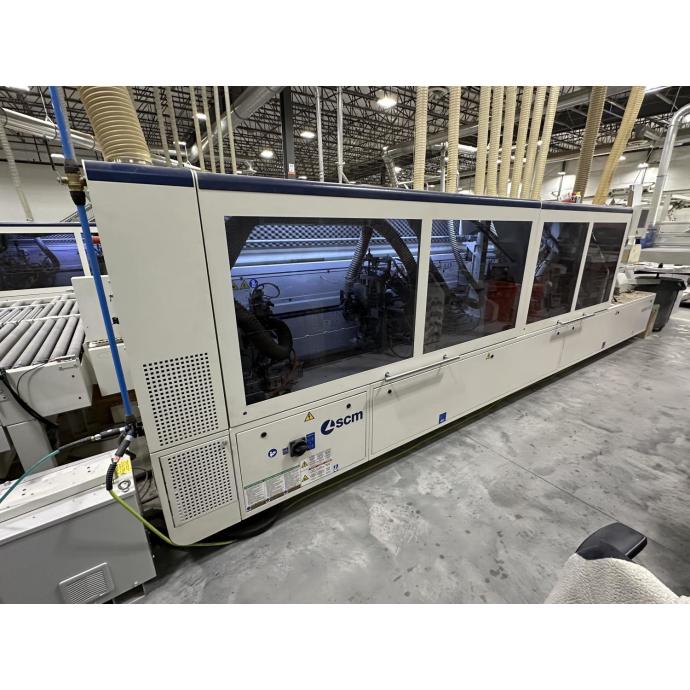

Automatic single sided edgebander designed to be used for edgebanding straight vertical profiles with coiled material (veneer and PVC) and with strips (high-pressure laminate and solid wood) with a maximum thickness of 15mm.

The machine base is a rigid, ribbed steel structure and is designed to provide maximum support for the working units. The ribs provide stability and, at the same time, provide openings in the base to facilitate removal of the chips/dust.

Top pressure beam is fitted with a twin-profile V-belt for even pressure & precise holding of even small work pieces.

• Edgebanding thickness: .4mm - 15mm (.016-5/8")
• Guillotine capacity: 3mm
• Feed speed: 40-72 ft/min.
• Panel height: 3/8" min – 2 3/8" max
• Minimum panel length: 5 1/2"
• Minimum panel width: 2"
• Minimum distance between panels: 20"

• PC 21" Controller
• Electronic Positioning of Top Pressure Beam
• Lighted Sound Enclosure
• Panel Spacing Device
• Two Position Infeed Fence
• Anti-Adhesive
• Pre-Milling Station With Diamond Cutters
• Air Cushion Table at Machine Entry
• "QMS" Glue Station
• Edge detection presence safety device
• SGP glue pot
• Servo Driven Pressure Section
• Spray Mist Device for "Delicate Edge"
• "K-SEL" Trimming Station
• "RSP" Flush Trimming Station
• "RI/S" Servo Driven Edge Trimming Station
• "ROUND-K" Corner Rounding Unit
• "RAS/S 2P" Edge Profile Scraping Station
• Spray Mist Device for "Edge Finishing"
• "RCA/2C" Glue Scraping Station
• "SPN" Buffing Unit And Hot Air Blower

• Glue Pot Unit:
  • Heating Time Approx. 8-10 min.
  • Pot/Hopper Capacity 1.1 lbs. / 8.8 lbs.
• Pre-milling Station:
  • Horsepower 5.25 HP ea.
  • RPM 12,000 RPM
  • Max. Stock Removal 90mm²
  • Diameter/Bore/Height 100mm/30mm/49mm
• End Cutting Trimming Station:
  • Horsepower .75 HP ea.
  • RPM 12,000 RPM
  • Tilting 0-15 degrees
  • Blade Diameter/Bore 100mm/32mm
• Flush Edge Trimming Unit:
  • Horsepower 1.5 HP ea.
  • RPM 12,000 RPM
  • Cutting Tools 70x20x16mm
• Tiltable Edge Trimming Unit:
  • Horsepower 1.5 HP ea.
  • RPM 12,000 RPM
  • Tilting 0-25 degrees
  • Cutting Tools 70x20x16mm
  • 3mm radius knives
• Corner Rounding Unit:
  • Horsepower .80 HP ea.
  • RPM 12,000 RPM
  • Cutting Tools 3mm / 1mm
• Scraping Unit:
  • Knife Radius 1mm and 3mm inserts
• Buffing Unit:
  • Horsepower .25 HP
  • RPM 3,000 RPM
  • Diameter/Bore 152mm/17mm
  • Feed Motor Horsepower 2.5 HP
  • Feed Speed 40-72 FPM
  • Frequency Converter 200 Hz
  • Pneumatic Operating Pressure 90 PSI
• Machine Weight: 9,105lbs.
• Electrical: 130 amps @ 230v three phase
• Dust: 3,500 cfm
• Dimensions (LxWxH): 262" x 65" x 62"
